rg 11 Compression Coaxial Power Connector

FOB Price

Negotiable / Piece

5000 Pieces(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

coaxial power connector
1brass/zinc
2Plating: nickel
3wide frequency range,nice looking
4wateproof

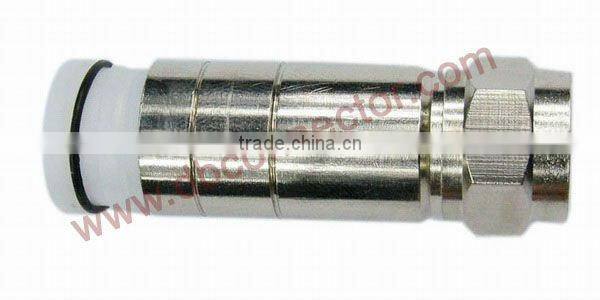

rg 11 compression coaxial power connector

Impedance: 75Ω

Temperature Range: -55~+155 ^oC

Frequency Range: DC~7.5GHz

Insulation resistance : ≥ 10000 M Ω

Center conductor retention force ≥6N

Body: brass or zinc and nickel plated

Crimp ferrule: copper alloy & nickel plated

o-ring sealing: sllicone rubber.

---------------------------------------------------------------------------------------------------------

Manufactured of high quality brass with nickel plating for superior protection against V-corrosion

Designed to be watertight for outdoor applications

Patented internal compression design offers excellent RFI shielding properties

Unique ridge-patterned internal sleeve presses firmly against cable jacket, sealing connector against moisture at the back end

Internal O-ring fully seals the connector collar, ensuring reliability and high-performance

Easy-grip free-spinning nut for fast installation and installer comfort

Use with CableNet Series compression tools (CCT-STQ-P and CCT-STQ-PS)

Universal for standard, tri-shield or quad-shield SCTE and SBCA specification RG6 coaxial cable
