Help CenterU Shape Label Sensor , Modulated Infrared Light, Packaging Application Sensor
Related Products
-
U Type Slot Photoelectric Label Sensor FC-2100 With 2mm Width of GrooveUS$ 17.88 - 38.88MOQ: 1 Piece -
DC 12-24V Low Price M8 Infrared F&C Metal Label SensorUS$ 17.88 - 38.88MOQ: 1 Piece
-
IP66 Aluminum Metal Case Universal Label Sensor Specially Design for Packing AutomationUS$ 18 - 40MOQ: 1 Piece
-
High Performance 940um Infrared FC-2100 Sensor Label Detection, CE Label SensorUS$ 18 - 40MOQ: 1 Piece
-
FC-2100 4 Wires PNP/NPN Electric Label Detector Photo Sensor Quality ChoiceUS$ 17.88 - 38.88MOQ: 1 Piece
I can be reached by cellphone:86-15173188970 and Skype:Lulu_Lu1995
Feature of FC series label sensor
1.Universal type,suitable for all Auto packaging machine
2.Aluminum case desigh,high reliability and compatibiliaty
3.low-cost,high performance
4.M8 connector can be customized

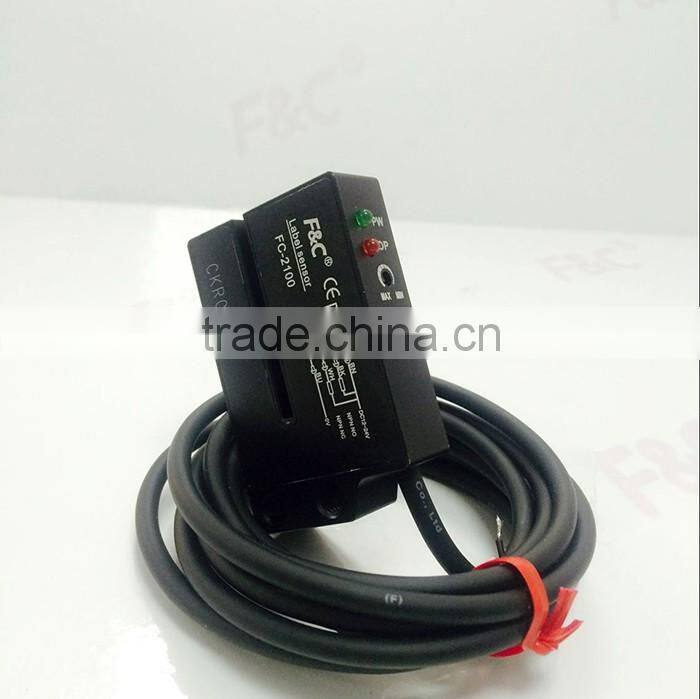

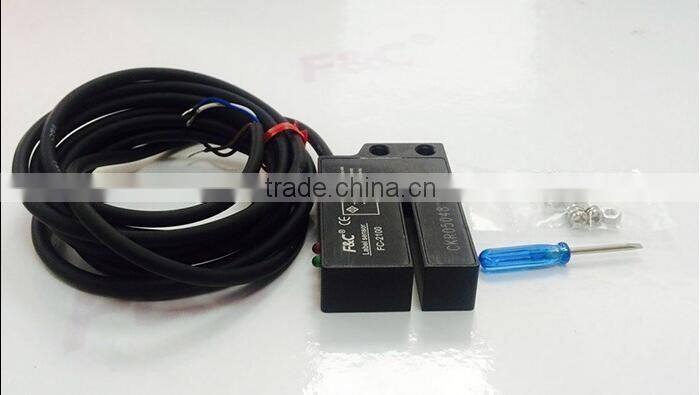

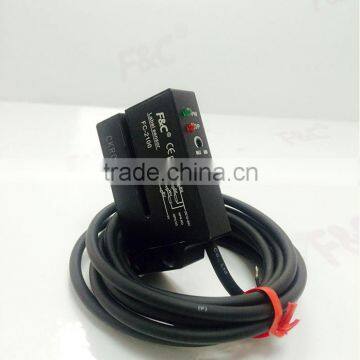

Product display

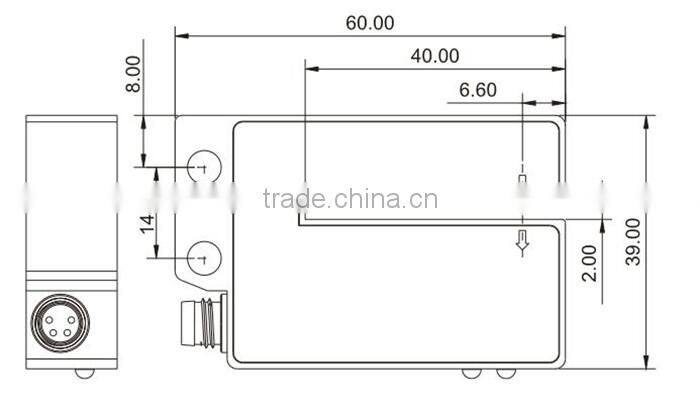

Diagram
Specification
| Model | FC-2100 FC-2100P | FC-2100/D FC-2100P/D |
| And outlet | Straight outlet | With connector |
| Detecting distance | 2mm | |
| Light source | 940nm infrared modulated light | |
| Operating voltage | DC12-24V±10%(Ripple P-P:10%Max) | |
| Current consumption | 15mA Max | |
| Load current | 100mA Max at DC 24V | |
| Output type | N=NPN.NO NC P=PNP.NO.NC | |
| Protection ciruit | Reverse polarity protection and short circuit protection | |
| Response time | 500us Max | |
| Leakage current | <0.01mA no-load | |
| Operating Temperature | -10°C-+50°C(without icing or condensation) | |
| Storage temperarure | -20°C~+60°C(No freezing allowed | |
| Ambient humidity | 35%-85% Relative humidity | |
| Waterproof degree | IP66 | |
| Meterial | Aluminium metal case | |
| Wiring method | φ4×2M/4-wires/φ4×2M/M8 4-wires | |
Certifications
More product
Our services
1.Prompt reply to our customer, we have to reply all the email within 24hrs
2.Provide free replacement if there is any quality problem with our product.
3. Accept OEM Order, Ship the product with your logo.

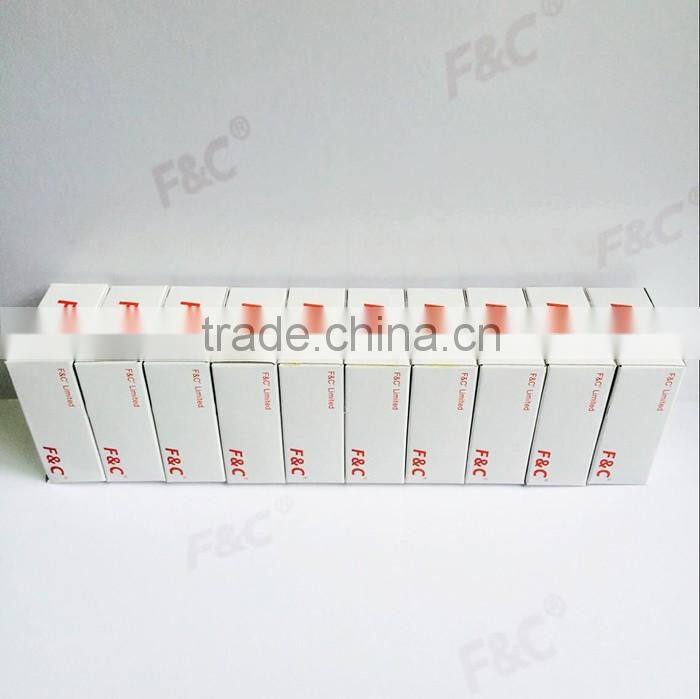

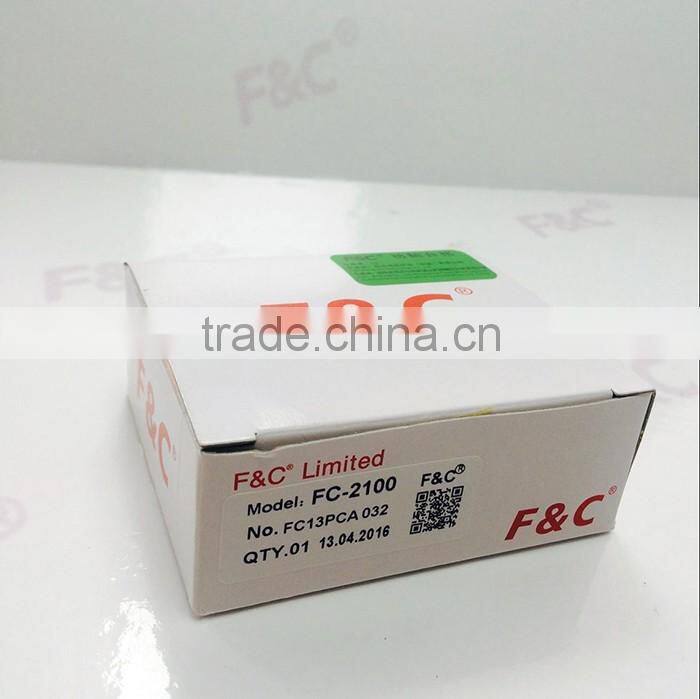

Packaging&Shipping
1.We will ship our product aboard with standard export package.
2.For small Qty, We will Ship our product to you by express.
3.For mass production , We will ship our product to you by Air or sea.
Enterprise profile
F&C main product include fiber optic amplifier , fiber optic sensor, fiber optic lens, proximity sensor, photoelectric sensor, label sensor, light curtain, laser alignment, pressure sensor,magnetic sensor, M8 M12 female connector, laser sensor, color sensor,rail power supply,solid state relay.
F&C Technology has been making continuous breakthrough in new technology and new material application,. Our Target is “What you need can be found in F&C Sensing Technology”.
