Coaxial Cable Male Crimp Rg59 u Crimp Bnc Connector
- shanghai
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | db- BNC connector | |
| Model Number | male bnc connector | Type | BNC | |
| Application | RF | Gender | Male |
Product Description
Specifications
rg59 u crimp bnc connector1.male bnc connector
2.Brass nickle plated
3.factory price ISO9001
4.BNC connector
coaxial cable Male rg59 u crimp bnc connector
Name | BNC connector for RG-6 RG59 | |
Code | Opt-bnc-4 | |
Physical specs | ||
Material |
| Brass/zinc |
Plating |
| Nickel |
Plastic bush |
| plastic |
Dimensions (height x diameter) | mm | Customer designed according to different coaxial cables |
Weight | kg | 0.07-0 .12 |
Electrical parameters | ||
Impedance | ohm | 75 |
Frequency range | GHz | 0-3 |
VSWR at 1 GHz |
| <1.1 |
Return loss at 1GHz | dB | >30 |
Screening efficiency at 1GHz | dB | >100 |
Dongbei manufacture and supply super designed F Connector, BNC Connector.
This BNC connector/adapter The connector has been designed to ensure watertightness (after crimping). During crimping of the connector a plastic bush is tightly pressed against the sheath of the cable (by putting on cone-shaped brass bush). The plastic material It is UV-proof, and ensures stable physical parameters in very wide temperature range. The metal parts of the connector are made of nickel-plated brass and are corrosion-proof. The way of crimping ensures high mechanical strength, watertightness, and stability of parameters. l | ||
Bnc connector:
- BNC 50 ohm connectors provide repeatable electronic performance from DC to 4 GHz.
- BNC 75 ohm connectors are suitable for applications up to 1 GHz. All 50 and 75 ohm connectors are intermatable.
F-female to BNC-male adapter is significantly different from the low-cost gear offered on the market. For a slightly higher price the user gets a brand product with defined characteristics. Carefully selected materials and excellent manufacturing accuracy ensure quick and reliable assembly, without any backlash. Gilded contacts and VSWR <1.05 up to 1 GHz ensure very good electrical parameters and perfect matching.
Technical Charateristics of BNC connector :
- Temp.range: -55~+155°C
- Impedance: 50 , 75ohm ohm
- Frequency Range: dc - 4 GHz (50ohm- 75 ohm )
- Working Voltage: 500V max
- Withstand Voltage: 1500V rms
- Center Contact: ≤ 1.5 ohm
- Outer Contact: ≤ 1 ohm
Applications OF BNC connector :
- Serial digital and Analog interface;
- Video signals;
- Aviation electronics;
- Non-professional radio antenna connections;
- Electronic test equipment.
About us:
- OEM are welcomed
- We have many types connector for your choosing, fell free to contact me,

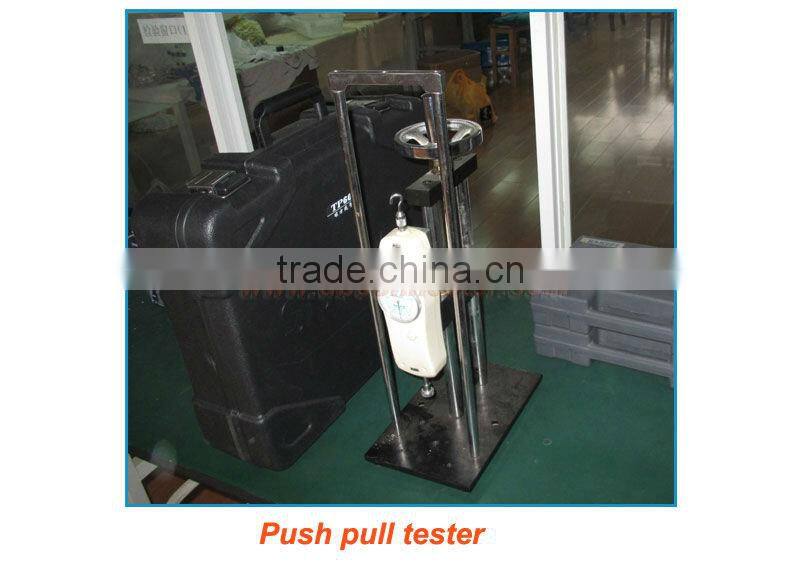

Dongbe QC Team
Donbei QC team consists of professional people to ensure 100% products high quality.
Contact Us
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 12 hours.
Please fell free to call us at any time if there is any questions.
Skype: Helenzhang0616 24H Hotline :0086-18668010692
Transportation
All available shipping ways could be applied, by courier, air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
