Home > Instruments & Meters > Timer & Counter > Encoder+digital Display PMJ-LM/30 Wire and Cable Length Measuring Device Supplier's Choice

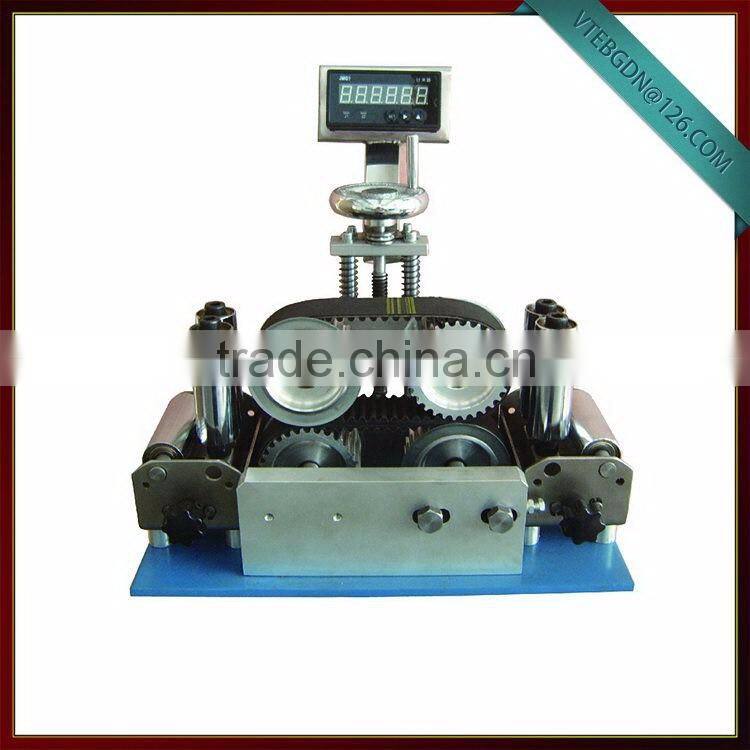

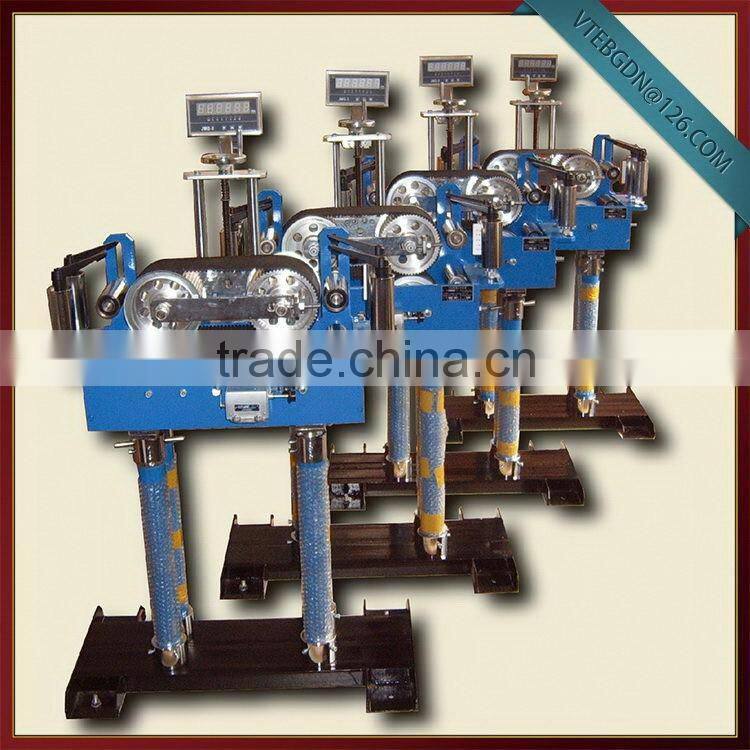

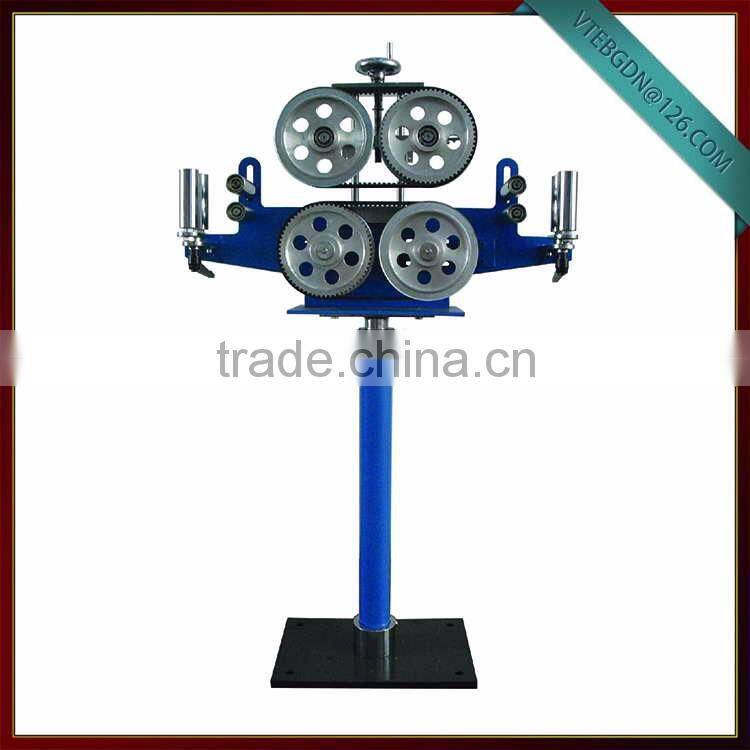

Encoder+digital Display PMJ-LM/30 Wire and Cable Length Measuring Device Supplier's Choice
US$ 1,255 - 1,256
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
KIVU
Model Number:
PMJ-LM/30
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1250 Cantilever Pay-off & Take-up (motor-rised)US$ 5,303 - 5,303MOQ: 1 Set -
6 Digit Digital Counter Meter Comptroller General Instrument Cable Length Measuring DeviceUS$ 1,255 - 1,355MOQ: 1 Set
-
Maximum Size 50MM for Bare and Insulated Wire PMJ-LM50 Meters Length Measuring Counter Quality ChoiceUS$ 1,255 - 1,355MOQ: 1 Set
-
Manufactory 30 Years for Cable 6 Digit Digital Counter MeterUS$ 1,150 - 1,200MOQ: 1 Set
-
PMJ-LM/30 Meter Counter for Coated Cable Isolated Cable and Soft Pipe 8 Digital Display Quality ChoiceUS$ 1,066 - 1,069MOQ: 1 Set
Place of Origin
Shanghai, China
Brand Name
KIVU
Model Number
PMJ-LM/30
Product Description
| Seri No. | Parameter | PMJ-LM/30 | PMJ-LM/40 | PMJ-LM/50 | PMJ-LM80 | PMJ-LM120 |
| 1 | Measuring Diameter | 1~30mm | 1~40mm | 1~50mm | 10~80mm | 30~120mm |
| 2 | Measuring Length | 999999 | 9999.99 | 9999.99 | 9999.99 | 9999.99 |
| 3 | Maximum speed | 200m/min | 500m/min | 200m/min | 100m/min | 100m/min |
| 4 | Accuracy | <0.3% | <0.1% | <0.3% | <0.3% | <0.3% |
| 5 | Type | Vertical | Vertical | Vertical | Vertical | Vertical |
| 6 | Wheel Diameter | 159.15mm | 82.66mm | 159.15mm | 159.15mm | 159.15mm |
| 7 | Wheel Width | 30mm | 40mm | 50mm | 80mm | 120mm |
| 8 | Wheel material | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| 9 | Timing belt | Rubber | Rubber | Rubber | Rubber | Rubber |
| 10 | Sense type | Encoder | Encoder | Encoder | Encoder | Encoder |
| 11 | Display panel | Digital | Digital | Digital | Digital | Digital |
| 12 | Extension function | PLC available | PLC available | PLC available | PLC available | PLC available |
| 13 | Display power | AC110~220V | AC110~220V | AC110~220V | AC110~220V | AC110~220V |

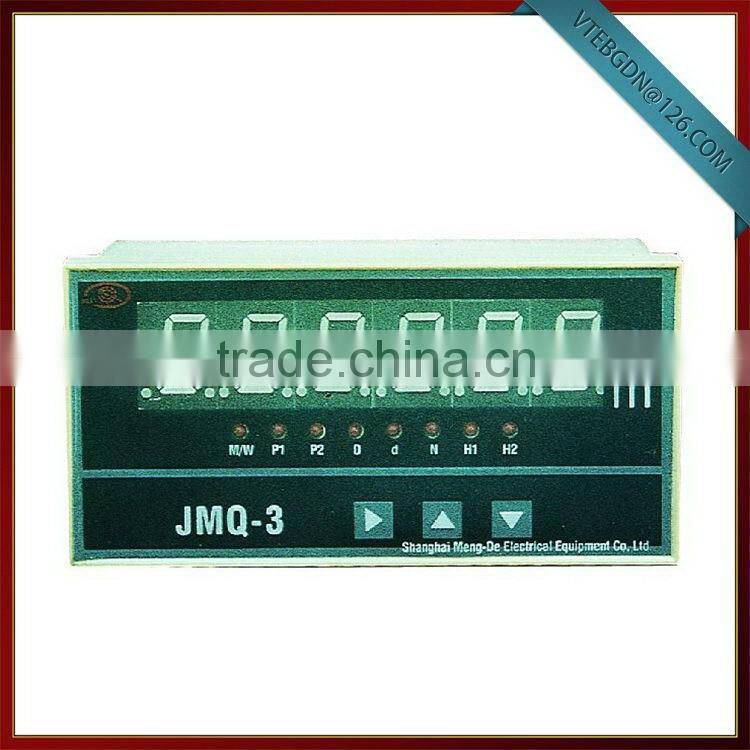

| 14 | Display Screen Model | JMQ-3 | JMQ-3 | JMQ-3 | JMQ-3 | JMQ-3 |
| 15 | Operation type | Manual | Manual | Manual | Manual | Manual |
| 16 | Packing size | 750*300*1220mm | 750*300*1220mm | 1000x500x1500mm | 1000x800x1500mm | 1200x1000x1500mm |
| 17 | Gross Weight | 60kgs | 80kgs | 100kgs | 120kgs | 150kgs |
| 18 | Application | wire, stranding wire Cable, Isolated cable soft pipe |
wire, stranding wire Cable, Isolated cable soft pipe |
wire, stranding wire Cable, Isolated cable soft pipe |
wire, stranding wire Cable, Isolated cable soft pipe |
wire, stranding wire Cable, Isolated cable soft pipe |
