16us High Speed Digital Amplifier, DC12-24V Optical Sensor Amplifier With Two Output

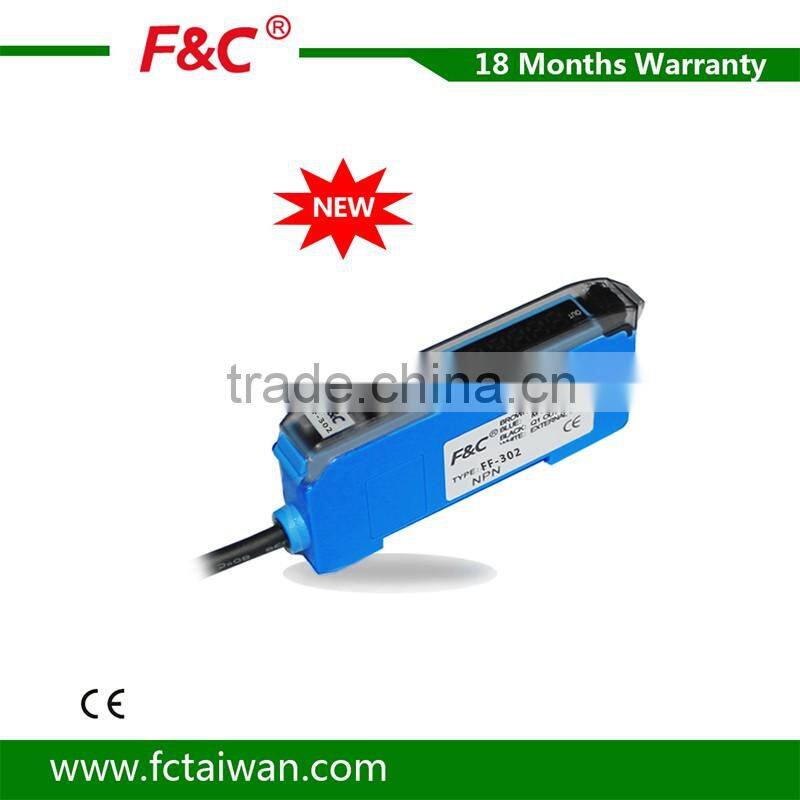

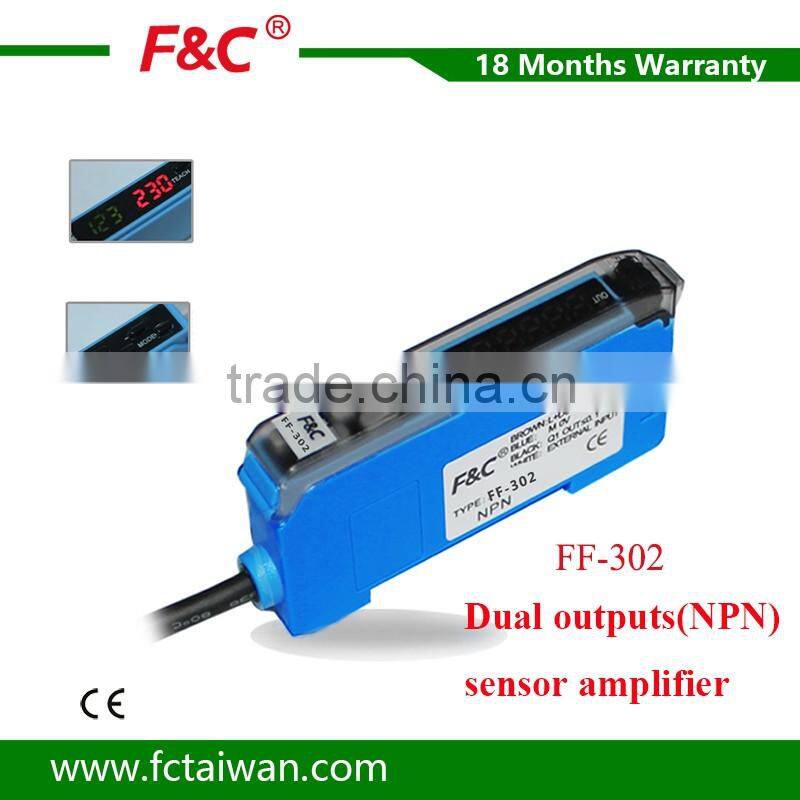

16us High Speed Digital Amplifier, DC12-24V Optical Sensor Amplifier With Two Output photo-1
16us High Speed Digital Amplifier, DC12-24V Optical Sensor Amplifier With Two Output photo-2
16us High Speed Digital Amplifier, DC12-24V Optical Sensor Amplifier With Two Output photo-3
US$ 40 - 68 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FF-302
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou; Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hunan, China
Brand Name F&C
Model Number FF-302
Usage Position Sensor
Theory Optical Sensor
Output Other, Switching Transducer, NPN Type

16us high speed digital amplifier, DC12-24V optical sensor amplifier with two output



Product Description



FF-302 16us digital amplifier
ModelFF-302
Output ModeNPN
Operating Voltage12~24V DC
Reaction  Time16us
Timer Function adjustable
Current Consumption100mA Max
Load Current10mA Max @24V DC
Short-circuit ProtectionYes
Reverse Polarity ProtectionYes
Output IndicatorRed LED
Power IndicatorGreen LED
Isolation Resistance20M Ω @500V DC
Insulation Strength60 seconds @500V AC 60HZ
Operating Temperature-10~50℃
Operating Humidity35~85%RH
Waterproof GradeIP64
MaterialShell: heat-resistant ABS, cover: polycarbonate
fiber optic sensor fixed rod: PPS
Weight65g
Accessory Mounting Bracket
Connecting MethodPre-wired wires





Features advantages for digital amplifier:



1. The longest detection range up to 20m.



2. Excellent anti-jamming capability.



3. Dual NPN output.



4. Shipping from Factory directly with 18 months quality warranty.

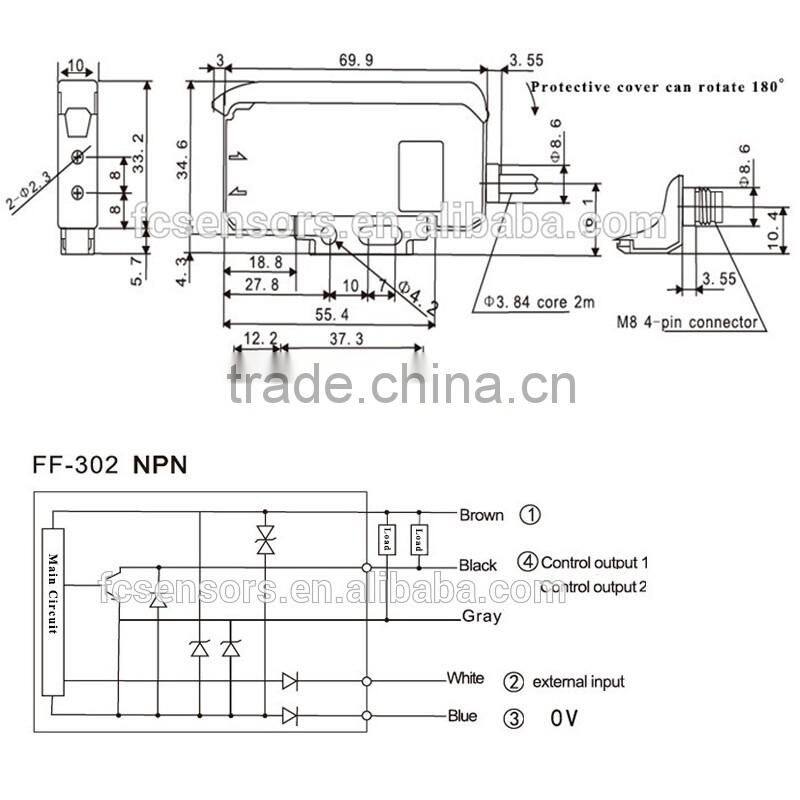

product drawing

 16us high speed digital amplifier, DC12-24V optical sensor amplifier with two output16us high speed digital amplifier, DC12-24V optical sensor amplifier with two output





Dimensions for digital amplifier



16us high speed digital amplifier, DC12-24V optical sensor amplifier with two output
