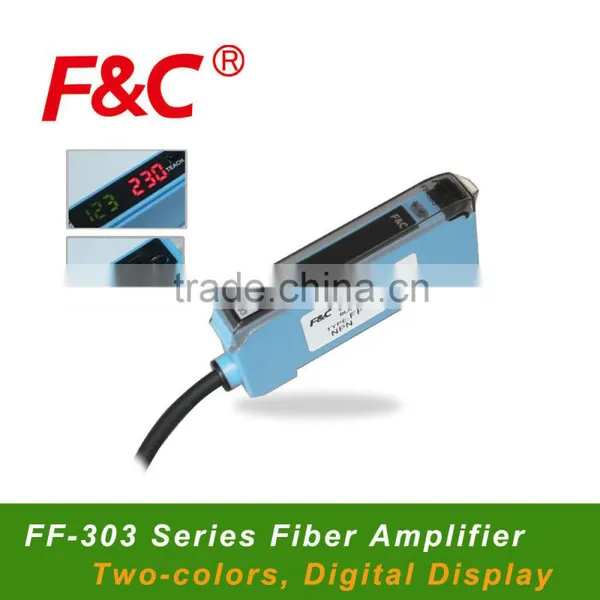

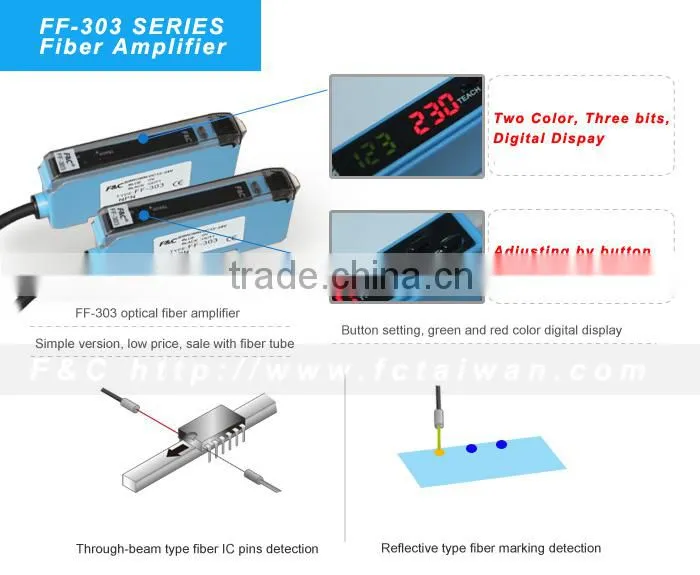

F&C FF-303 Series Fiber Amplifier, Digital Panel, Two Color, Three Bit Digital Display
US$ 20 - 30
MOQ: 5 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hunan, China
Brand Name:
F&C
Model Number:
FC-303 series
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
FF-12 NPN PNP General Purpose Fiber Amplifier for Fiber Optic Sensor With CE CertificateUS$ 15 - 25MOQ: 1 Piece -
F&C 16us NPN Fiber Optical Sensor With CE CertificateUS$ 45 - 72MOQ: 1 Piece
-
F&C FF-12G Green Light Fiber Optic Sensor and AmplifierUS$ 15 - 25MOQ: 1 Piece
-
F&C Low Price NPN PNP Fiber Optic AmplifierUS$ 15 - 25MOQ: 1 Piece
-
FF-12P PNP General Purpose Fiber Optic Amplifier and Fiber Optic Sensor for Glass TestUS$ 25 - 45MOQ: 1 Piece
Place of Origin
Hunan, China
Brand Name
F&C
Model Number
FC-303 series
Usage
Position Sensor
Theory
Optical Sensor
Output
Switching Transducer
Product Description
| Light source | Red | Green | |
| Cable type | FF-303 (npn) FF-303P (pnp) | FF-303G (npn) FF-303GP (pnp) | |
| M8connector | FF-303D (npn) FF-303PD (pnp) | FF-303GD (npn) FF-303GPD (pnp) | |
| Working Voltage | 12~24VDC±10% P-P above10% | ||
| Current consumption | 400mA Max. | ||
| Loading current | 100mA Max.at DC24V | ||
| Output mode | NPN Open collector transistors | PNP Open collector transistors | |
| NPN Open collector transistors | PNP Open collector transistors | ||
| Max input current:100mA | Max output current:100mA | ||
| voltage:30VDC | voltag:30VDC | ||
| Residual voltage:1.0VDC below | Residual voltage:1.0VDC below | ||
| 0.4V below(current at 16mA) | 1.0V below(current at 16mA) | ||
| Operation output: normally open or normally close, can be set by pressed the button. | |||
| Short circuit protection: Yes | |||
| Self diagnosis | Instability detection output when on, the signal last 40ms (cut off the output automatically when output short circuit protection signals continued to short-circuit the disarmament) | ||
| Response time/frequency | Universal:switch frequency: 1KHz,response time:500μs | ||
| Detection distance | red light source | reflective:200mm(1mm diameter fiber core ) | |
| through beam:1200mm(1mm diameter fiber core) | |||
| green light source | reflective:700mm(1mm diameter fiber core) | ||
| through beam:400mm(1mm diameter fiber core) | |||
| Indicatior LED | output:(red) stable:(green, please keep this LED non-flashing) | ||
| Time delay function | 5ms/50ms/500ms/5s/0s,five choice of setting by button. | ||
| Transmission power | 100% / 50% / 25% / 12% Transmitter power can be set in different percentage. | ||
| Ambient temperature | -20 ~ +70°C | ||
| Environment humidity | 35 ~85%RH | ||
| Material | Shell: PC+ABS;Cover: Polycarbonate | ||
| Annex | (Mounting bracket): 1pc | ||

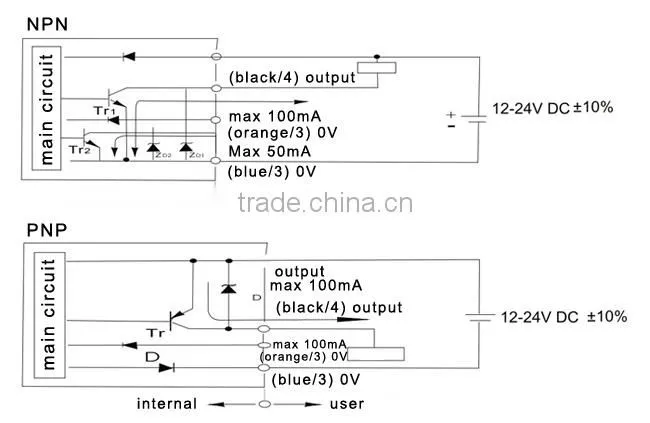

Diagram
