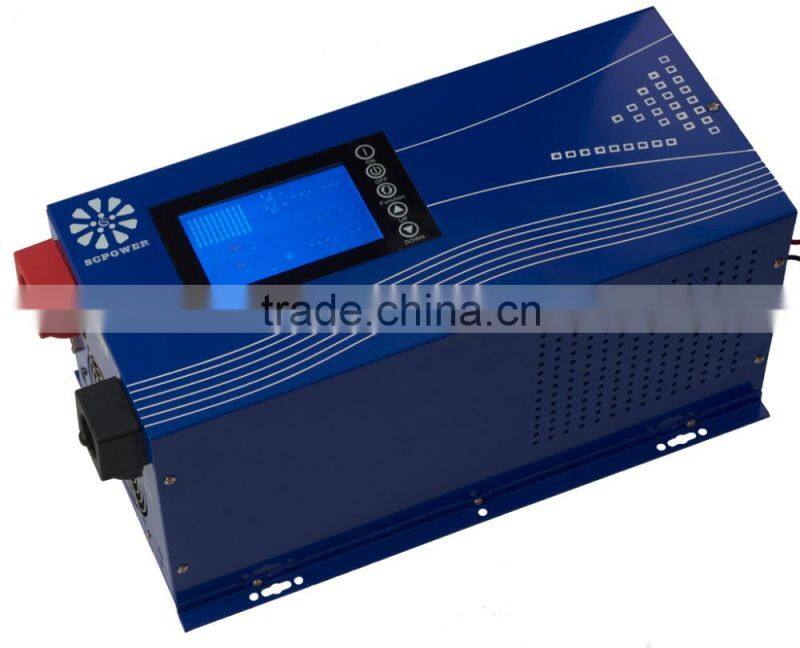

Generator Compatible 1600W AC Power Inverter for AUSTRALIA MARKET
GENERAL DESCRIPTION:
In DC/AC inversion mode, user can set these series of inverters to normal working mode or sleep mode; in utility mode, it has Auto Voltage Regulation (AVR) function, utility charging function (AC first mode) and UPS function. This multi-functional low frequency pure sine wave inverter SC-V series have advantages of stable quality, strong load-carrying ability and long service life. They also can work in poor environment and widely be used in military, industry, home, UPS, EPS, energy system field etc.
ADVANTAGES
_________________________________________________________________________________
- Charging current: 1-50A (AC, Auto-detect safety charging current)
- LCD monitor: Big professional
- Transformer: Toroidal
- Low Noise: < 45db
- Consumption: 1~6W (sleep mode); <1A (working mode)
- Input voltage: 145Vac-275Vac; 73Vac-138Vac
| P R O T E C T I O N | ♦ Short-circuit Protection | ||||||||||
| ♦ Low Voltage Protection | |||||||||||
| ♦ Over Voltage Protection | |||||||||||
| ♦ Overheat Protection | |||||||||||
♦ Overload Protection | |||||||||||
Battery Options
___________________________________________________________________________________________________
+ | + | + | + | |||||
Sealed Lead | GEL Battery | Vented Battery | Ni-Cd Battery | |||||
- | - | - | - | |||||
| Default | Manual Switch | Manual Switch | Manual Switch |
(Compatible with other types of batteries as well!!! )
PRODUCT PARAMETERS
___________________________________________________________________________________________________
| SC-V Pure Sine Wave Inverter | ||||||||||
| Series | 1KVA | 1.5KVA | 2KVA | 3KVA | 4KVA | 5KVA | 6KVA | 8KVA | 10KVA | |
| Rated Output Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 4800W | 6400W | 8000W | |
| Battery Voltage (DC) | 12V/24V (Optional) | 24V/48V (Optional) | 48V/96V/192V (Optional) | |||||||
| General Parameter | ||||||||||
| Working Mode (Setting) | 1 | Utility first (AC first) battery standby mode | ||||||||
| 2 | Sleep mode,no utility,load's power higher than 5% of inverter rated output power. it will start to work automatically | |||||||||
| 3 | Battery first (DC first) utility standby UPS mode | |||||||||
| AC Input | Voltage | 220V ± 35% or 110V ± 35% (Optional) | ||||||||
| Frequency | 50Hz ± 3% or 60Hz ± 3% (Optional) | |||||||||
| AC Output | Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% (Optional) | ||||||||
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 (Optional) | |||||||||
| Battery Charge | AC Charge Current | 1 - 50A adjustable | ||||||||

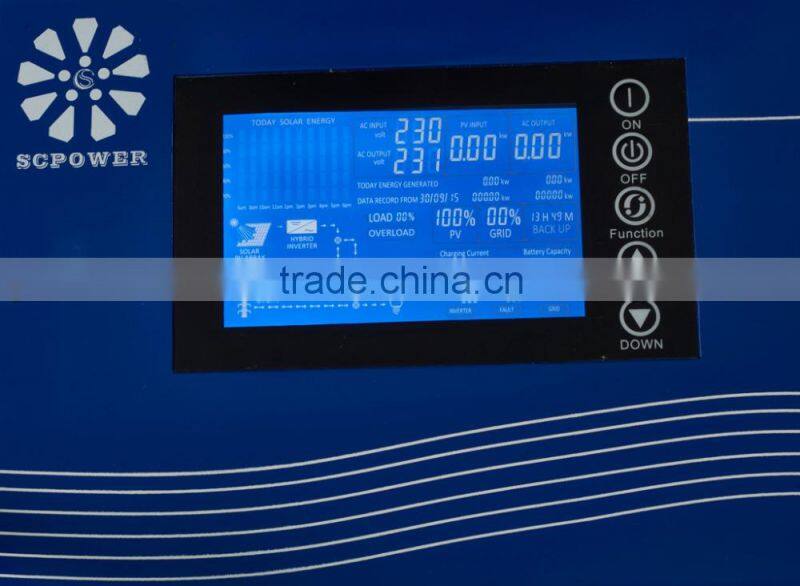

| Display Information | Input voltage, output voltage, output frequency, battery capacity, load condition, status information | |||||||||
| Overload Protection | >120% 1min, >130% 10s | |||||||||
| Power Consumption | Sleep Mode | 1 - 6W | ||||||||
| Normal Mode | <1A | |||||||||
| Conversion Efficiency | 85% - 92% | |||||||||
| Transfer Time | <4ms (AC to DC / DC to AC) | |||||||||
| Protection | Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat | |||||||||
| Size: W*D*H (mm) | 418*208*193.2 | 458*210*216 | 542.5*294*240.7 | |||||||
| Net Weight (kgs) | 11 | 13 | 14 | 15 | 17 | 20 | 34 | 39 | 43 | |
| The specification is only for reference. Subject to change without prior notice. | ||||||||||

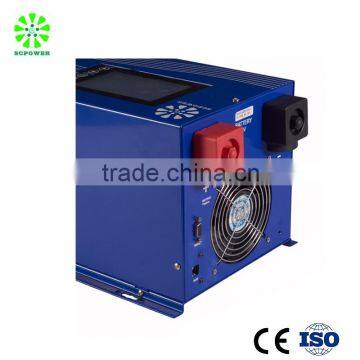

PRODUCT PHOTOS
___________________________________________________________________________________________________
COMPANY INFORMATION
___________________________________________________________________________________________________
Founded in 2009, Foshan SC Power Technology Ltd. is a National Key Support High-Tech Enterprise which integrated with R&D, production and marketing of Solar Inverter, Solar MPPT Controller, Hybrid Inverter (inverter with controller) and related solar power system products...
OUR ADVANTAGES:
We are factory
Master core technology
High spirit team
Rapid growing industry
PRODUCTION ABILITY:
5000sets/month ( Inverter/Hybrid Inverter)
10000sets/month (MPPT Solar Charge Controller)
R & D:
OEM / ODM acceptable
Warmly welcome to inquiry & place orders and wish we have a win-win business cooperation.
PACKAGING & SHIPPING
___________________________________________________________________________________________________
OUR SERVICE
___________________________________________________________________________________________________
- Software upgrade service;
- Free provides of spare parts within warranty
- Online/Onsite training of installation, debugging, maintenance, reparation, etc.
- Consolidation Service( only peripherals of our products)
- Promotion Support
HIGH-SPIRIT SERVICE TEAM LEADERS:
John Mo DJ Pang Jack Bai
(General Engineer) (Product Manager) (Service Manager)
F.A.Q.
__________________________________________________________________________________________________
Q1: What's the different between inverter and hybrid inverter?
A1: Inverter without controller,hybrid built-in MPPT solar controller.
Q2: How about the delivery time?
A2: 7-10 days for sample; mass orders depend on quantity.
Q3: What is the warranty
A3: One year .
