Home > Products > Tapered roller bearing > Slewing Ring Bearing YRT260 Rotary Table Bearings 260*385*55mm
Slewing Ring Bearing YRT260 Rotary Table Bearings 260*385*55mm
- Qingdao/Shanghai/Guangzhou
- T/T Credit Card PayPal
You May Like
Product Details
| Brand Name | Germany | Bore Size | 260, | |
| Outside Diameter | 385, | Model Number | YRT260 | |
| Feature | Cross Roller | Gear Options | External Gear Only | |
| Seals Type | Seal | Place of Origin | Germany |
Product Description
Slewing ring bearing YRT260 Rotary Table Bearings 260*385*55mm
Product | Slewing ring bearing / Rotary Table Bearings |
Model Number | YRT260 |
Bore Size(d) | 260mm |
Outside Diameter(D) | 385mm |
Width | 55mm |
Bearing Brand | Famouse Brand |
Cage | Steel Cage |
Material | Chrome Steel |
Sampe & Stock | Available |
Character | High precision,Long life |
Port of Shippment | Qingdao, Guangzhou |
Shipping | by Sea, by Air, by express/courier |

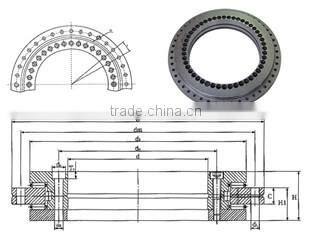

Some model mumber specifications for your reference
bearing type | boundary dimensions | fixing holes | |||||||||||||
d | D | H | H1 | C | D1 | J | J1 | inner ring | outer ring | ||||||
unit:mm | d1 | d2 | a | quantity | d3 | quantity | |||||||||
mm | mm | ||||||||||||||
YRT50 | 50 | 126 | 30 | 20 | 10 | 105 | 63 | 116 | 5.6 | — | — | 10 | 5.6 | 12 | |
YRT80 | 80 | 146 | 35 | 23.35 | 12 | 130 | 92 | 138 | 5.6 | 10 | 4 | 10 | 4.6 | 12 | |
YRT100 | 100 | 185 | 38 | 25 | 12 | 160 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 | |
YRT120 | 120 | 210 | 40 | 26 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 | |
YRT150 | 150 | 240 | 40 | 26 | 12 | 214 | 165 | 225 | 7 | 11 | 6.2 | 34 | 7 | 33 | |
YRT180 | 180 | 280 | 43 | 29 | 15 | 244 | 194 | 260 | 7 | 11 | 6.2 | 46 | 7 | 45 | |
YRT200 | 200 | 300 | 45 | 30 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 | |
YRT260 | 260 | 385 | 55 | 36.5 | 18 | 345 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | |
YRT325 | 325 | 450 | 60 | 40 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 | |
YRT395 | 395 | 525 | 65 | 42.5 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | |
YRT460 | 460 | 600 | 70 | 46 | 22 | 560 | 482 | 580 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 | |
YRT580 | 580 | 750 | 90 | 60 | 30 | 700 | 610 | 720 | 11.4 | 18 | 11 | 46 | 11.4 | 42 | |
YRT650 | 650 | 870 | 122 | 78 | 34 | 800 | 680 | 830 | 14 | 20 | 13 | 46 | 14 | 42 | |
Packing:
We are making different packing by different models.
1). Origin packing+pallets.
2). Single boxes+Outer carbon+Pallets
3). Tube package+Outer carbon +Pallets
4). According to your requirements
Delivery:
1-3 days for sample
5-30 days for bulk order
Shipping:
1). For a small order, send by UPS, DHL, FEDEX, or EMS.
2). For bulk order, send by Air shipment and Ocean shipment.
3). Our shipping ports are Qingdao, Shanghai, Guangzhou and Shenzhen.
