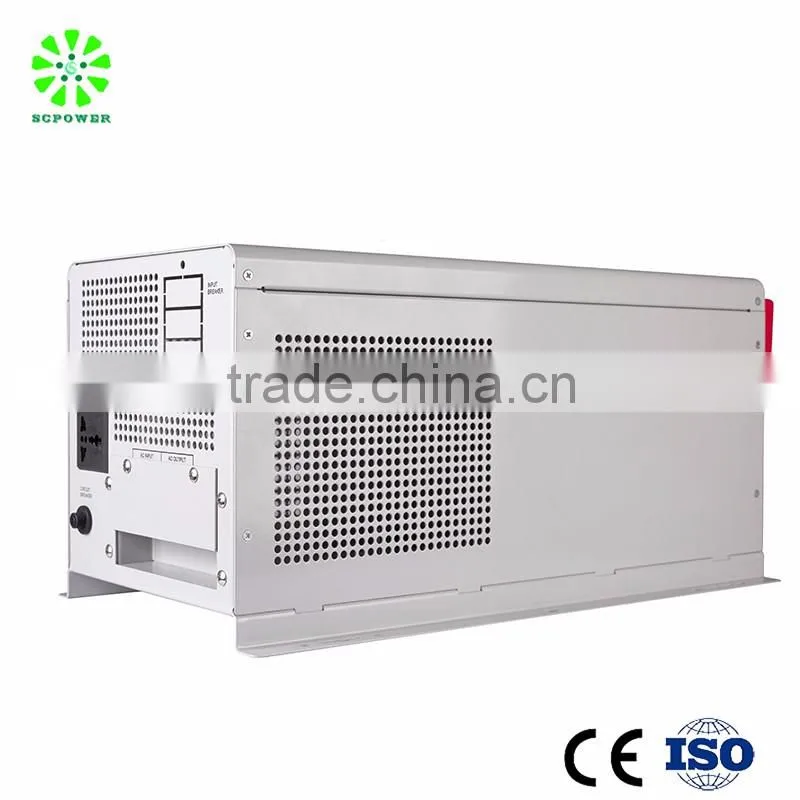

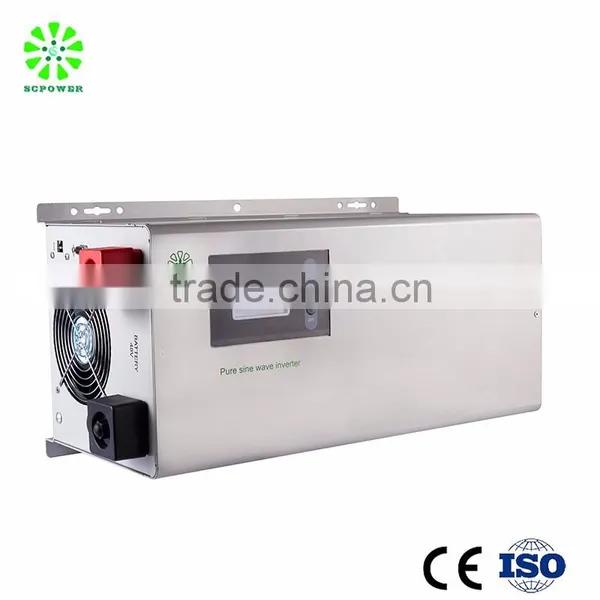

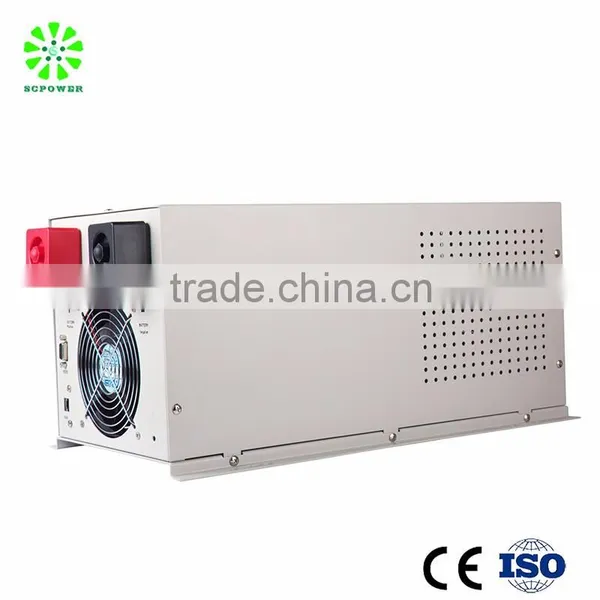

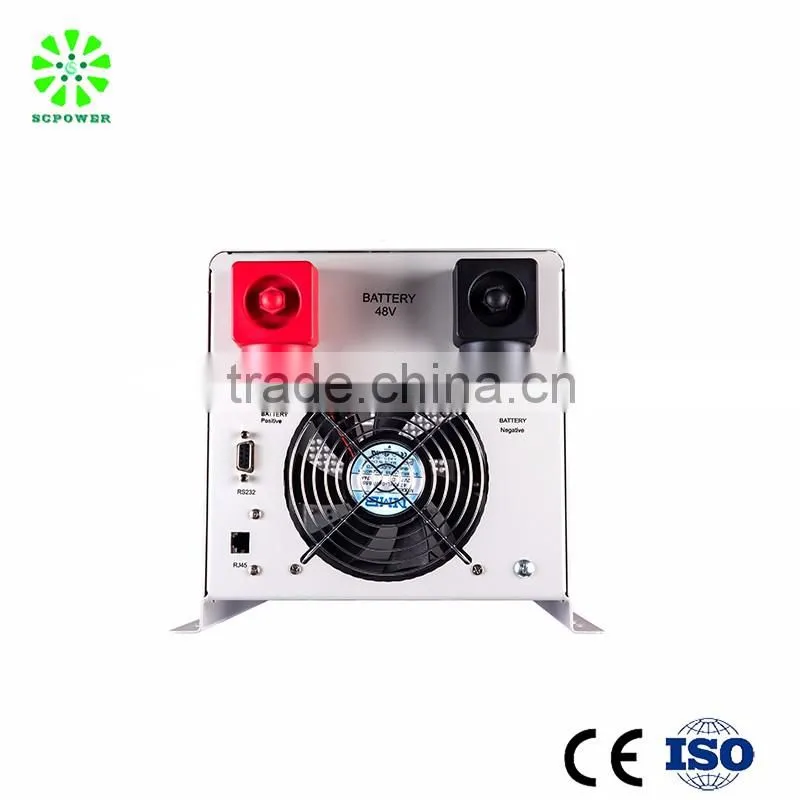

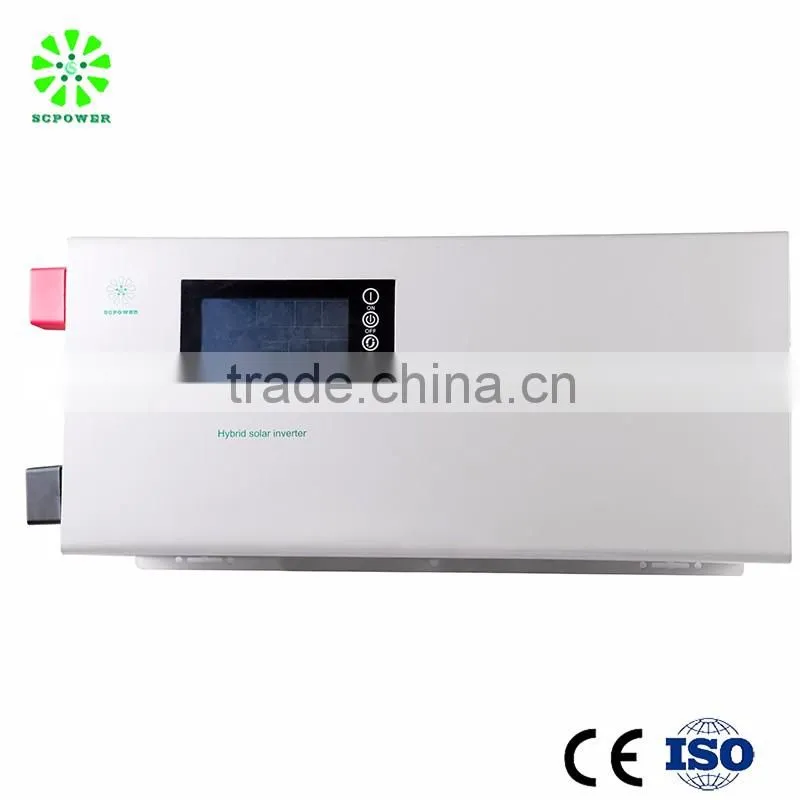

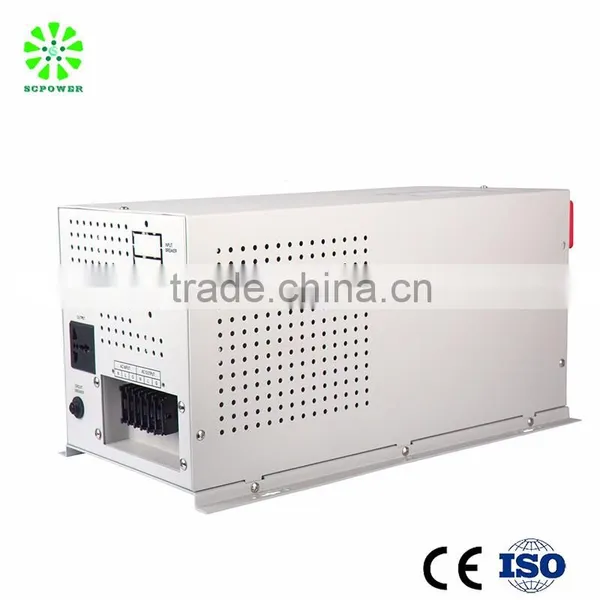

SC-G 2400w 3000w 4000w 5000w ac dc adapter 24v power adapter input 100 240v ac 50/60hz
| SC-G 1~10kVA KEY ADVANTAGES: |
- Hybrid Charging Current: Constant and smart
- Max PV input: 280VDC toleranced.
- Charging current: MPPT 50amp ( PV)
- Charging current: 1-50A (AC)
- Warranty: 1~5 years negotiable
- Transformer: Toroidal
- Wide Input voltage: -35% < Utility Voltage < +25%
- Multi Protection: Short-circuit; Low voltage; High voltage; Overheat; Overload
- Certificates:
- BATTERY OPTIONS:
(Compatible with all types of batteries !!! )
| SC-G Hybrid Inverter Parameters | |||||||||
| Series | 1kVA | 1.5kVA | 2kVA | 3kVA | 4kVA | 5kVA | 8kVA | 10KVA | |
| Surge Power | 3kVA | 4.5kVA | 6kVA | 9kVA | 12kVA | 15kVA | 24kVA | 30kVA | |
| Rate Output Power | 800W | 1200W | 1600W | 2400W | 3200W | 4000W | 6400W | 8000W | |
| Parallel | Support | Not Support | |||||||
| Battery (Lead-acid battery) | 12V/24V | 24V/48V | 48V/96V | ||||||
| Charging Parameter | |||||||||
| Charging Mode (Setting) | PV charge | ||||||||
| PV charge + Utility charge | |||||||||
| MPPT solar controller | Voltage | 12V/24V | 24V/48V | 48V/96V | |||||
| Current | 20A | 25A | 30A | 50A | |||||
| Max PV Input Voltage | 72V/144V | 144V/220V | |||||||
| PV Charge Efficiency | 95% - 99% | ||||||||
| Utility | AC Charge current | 1 - 50A adjustable | |||||||
| Inversion Parameter | |||||||||
| AC Output | Voltage | 220V ± 3% or 230V ± 3% or 110V ± 3% | |||||||
| Frequency | 50Hz ± 0.5 or 60Hz ± 0.5 | ||||||||
| Output wave type | Pure sine wave output, Total Harmonic Distortion THD less than 3% | ||||||||
| Overload Protection | >120% 1min, >130% 10s | ||||||||
|
Power Consumption (Under Normal Working Mode) |
0.4A | 12V:0.9A | 12V:0.7A | 24V:0.7A | 0.6A | 0.65A | 0.7A | 0.75A | |
| 24V:0.7A | 24V:0.7A | 48V:0.5A | |||||||
|
Power Consumption (Under Sleep Mode) |
1 - 6W | ||||||||
| Inversion Efficiency | 85% - 92% | ||||||||
| Utility Mode | |||||||||
| AC Input | 220V ± 35% or 110V ± 35% 50Hz or 60Hz | ||||||||
| AC Output | 220V ± 5% or 110V ± 5% 50Hz or 60Hz | ||||||||
| (AC first or DC first) Prority | |||||||||
| UPS Output (Setting) | AC first DC standby | ||||||||
| DC first AC standby | |||||||||
| General Parameter | |||||||||
| Display Information | Input voltage, output voltage, output frequency, battery capacity, load condition, status information | ||||||||
| Protection | Overload, Short-circuit, High-voltage input, Low-voltage input, Overheat | ||||||||
| Size: W*D*H (mm) | 418*208*193.2 | 458*210*216 | 542.5*294*240.7 | ||||||
| Net weight (kgs) | 13 | 15 | 17 | 19 | 21 | 24 | 32 | 39 | |
| The specification is only for reference. Subject to change without prior notice. | |||||||||
