Everpower Smart 12Volt Airsoft NiMH NiCd Battery Charger Intelligent Automatic Battery Charger

Features and Benefits

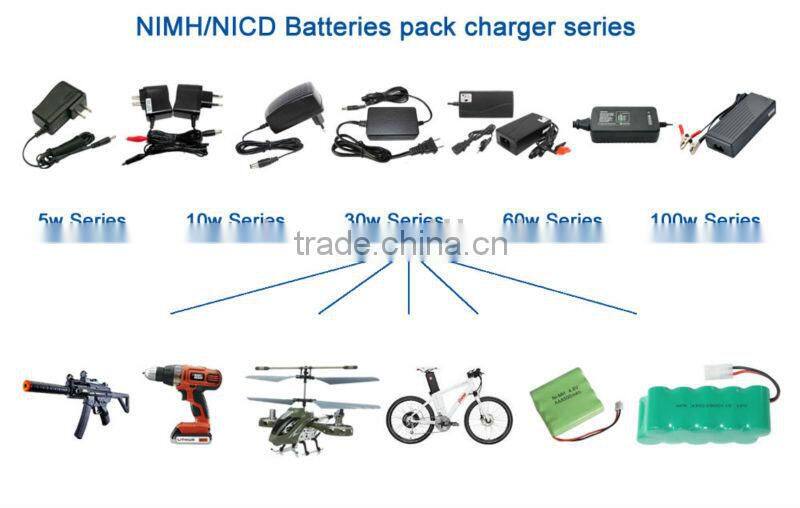

• Best and fast Charger for charging all RC Car, RC Airplane,electronic tool and Airsoft battery packs 7.2v, 8.4V,9.6V,10.8V,12V
• Universal for any NiMH /NiCd battery packs 7.2V - 12V (6-10 Cells Pack)
• Smart Charger with automatic voltage detection
• Use pulse and negative pulse technology to avoid battery overheating during fast charging, optimized for battery pack's cycle life
• Selected double output charging current for charing any nicd nimh battery packs capacity from 300mah~20000mah
• Automatically charging ending with negative delta V
• Worldwide usage with 120-240V AC

Smart Charger Specification

• FOR 7.2V-12 NiMH/NiCD Battery Packs 6-10Cells Packs
• Input: AC 100-240V
• Output: 16V~1.8A or 0.9A
• Call us to know more details datasheet

Operation Instruction

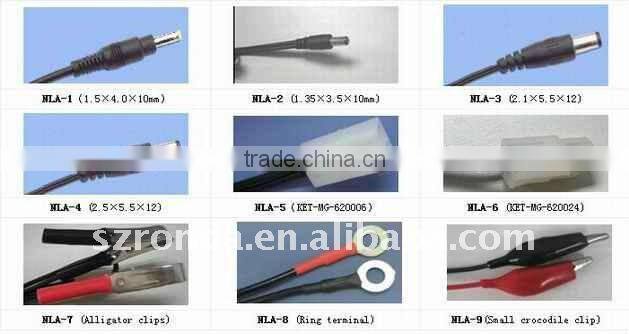

• Connect battery pack to output connector and plug AC power source
• Make sure battery polarity is connected correctly (Red wire is positive)
• Charger will detect battery voltage automatically, Red LED will be on during charging
• When battery is fully charged, current will reduce to trickle charging at 50mA, Green LED will be on
• Battery will be charged at 1.8A constant current
• Approximate Charging time is about 1.5hrs for 3000mAh battery,
• The charger is designed for faster charging NiCd and NiMH battery packs from 7.2 to 12V for RC car/Air and Air soft gun
• Don't charge battery packs with voltage less than 7.2V or greater than 12V and capacity smaller than 300mAh or larger than 30000mAh
• Battery pack must be made by high drain current cell
• Please contact your seller for instruction. Mfg is not responsible for any damage and consequent damage by Misuse.

Caution

• The charger is designed for indoor use only. Don't leave the charger unattended during charging.
• The Charger should be positioned horizontally and work in well ventilated condition, avoid water and keep away from flammable explosive goods.
• Don't cover the charger when charging, ambient temperature shall not be more than 40oC
• Don't touch the plug.
• Don't leave the batteries and chargers on wood surface or carpet.
• Cut off the power supply before connect or disconnect the charger with batteries.
• Don't try to disassemble the charger; High voltage inside!

Outlet selected:

Application
