One Part Bongding Sealant Raw Material Silica Gel For Transformer
Properties
1.One component , dealcoholization, neutral , thixotropic silicone sealant .No obvious odor during curing ,simply operation .
2. Used as coating and insulating material in circuit board industry, it’s good to be served as bonding and insulating material in lamp industry, without corrosion to plastic, metal and electronic element.
3. With excellent adhesion and ductility, especially for circuit board.
4. Excellent weatherability, anti acid, alkali, salt and lube
APPLICATIONS

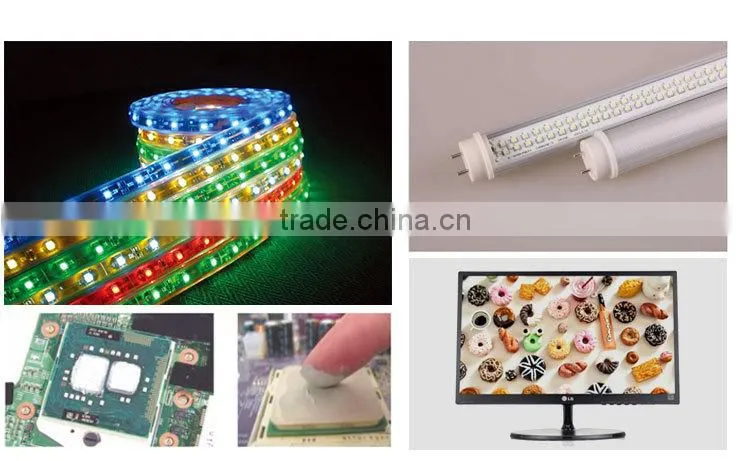

1. Mainly used as bonding and sealing material in electronic industry
2. Mainly used as bonding and sealing material among PCB, aluminum, glass and many other material
3. Mainly used as insulating, fixed material
Parameter
Color |
Semi-transparent |
viscosity(Mpa.S) |
Paste |
Gravity specific |
1.0g/cm³ |
Hardness (Shore A) |
25±3 |
Tensile strength |
≥0.8Mpa |
Shear strength |
≥0.8Mpa |
elongation |
200% |
Application temperature ( ℃ ) |
–50+150 |
Breakdown voltage |
16kv/mm |
Volume resistivity |
5.1*1014Ω•CM |
Dielectric constant |
2.8(1MHz) |
Tack free time |
5 min(25℃,50% RH) |
Packaging
100 g per tube or 45g per tube
Storage
Preserve at -20℃~27℃ shady and dry environment for as long as 6 month since the manufacture date
Remark
Complete cure products are poisonous, but do not directly contact with eyes, stay away from kids . Make sure that the application environment is ventilated .Due to varied situation of application environment; we suggest that test the product before mass production.
1. What are the normal package ?
100 ml /300 ml /2600 ml /18.9 L for one part silicone sealant
1 kg /tin for heat sink compound
20 kg / barrel for two parts potting compound
2. Normal application temperature ?
Normally it's -50C - +180C ,depends on specific item .
3. Does your silicone sealant corrode metal and plastic ?
No, it doesn't .All of our silicone sealant are neutral .
4. What kind of silicone sealant are you selling ?
We are selling neutral silicone sealant for LED ,automobile ,Solar PV ,consumer electronics ,craft ,etc
5. Are your silicone sealant Eco-friendly ?
All of our silicone sealants are Eco-friendly ,they have gone through RoHS, REACH tests every year .Some have UL certificates .
6.What is the Shelf life of your silicone sealant
When stay unopened, shelf life is six months from the date of manufacture, keep in cool and dry place (-20℃~27℃).
1. We have been in silicone sealant industry for more than 10 years
2. We have supplied our silicone sealant to many famous brands in and out of China ,which include Philips India ,Videocon ,Midea ,Galanz ,Nationstar ,FOXCONN ,etc .
3.Haoming provide comprehensive range of electronic silicone sealant ,which are widly used in LED ,Solar PV ,automobile ,consumer electronics ,etc .
4. We have a professional R&D team ,products have stable quality .
