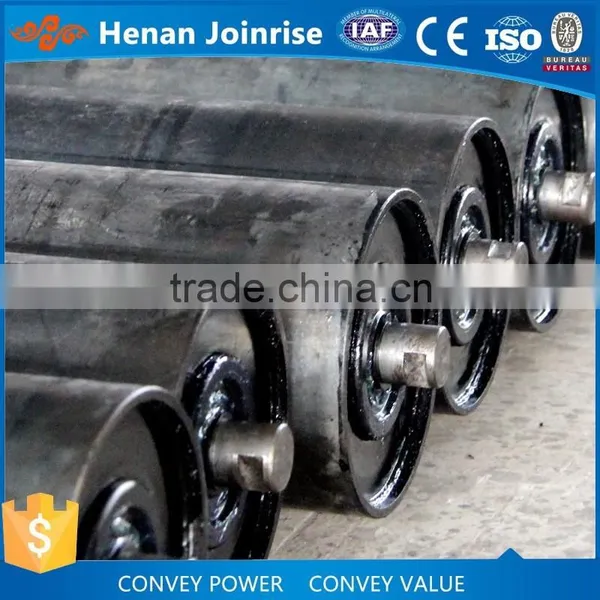

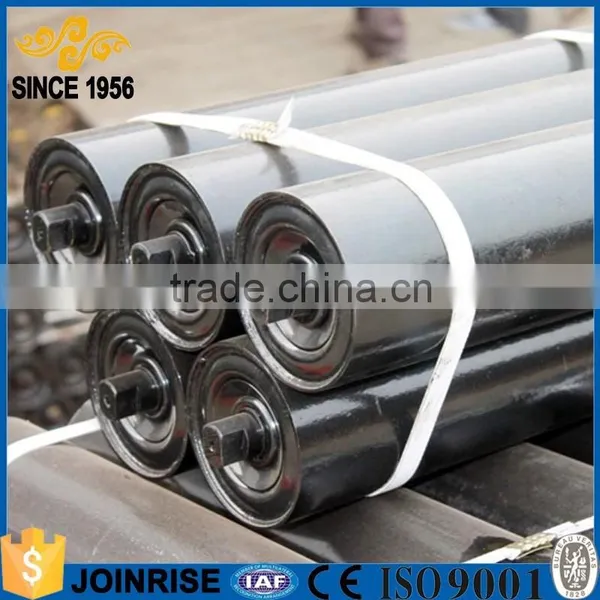

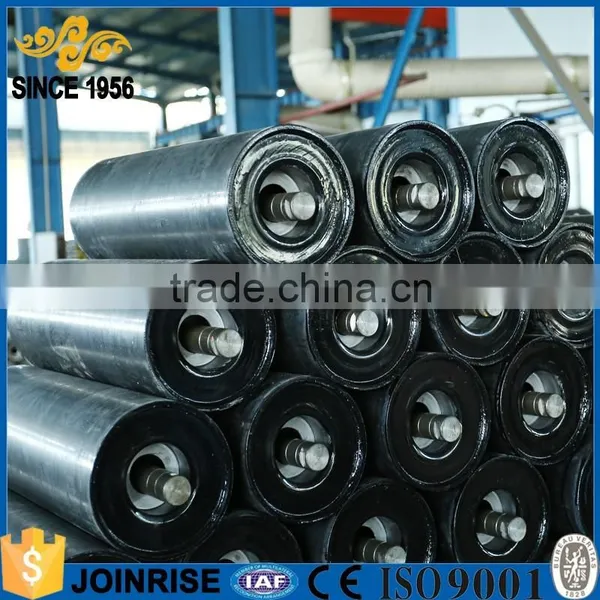

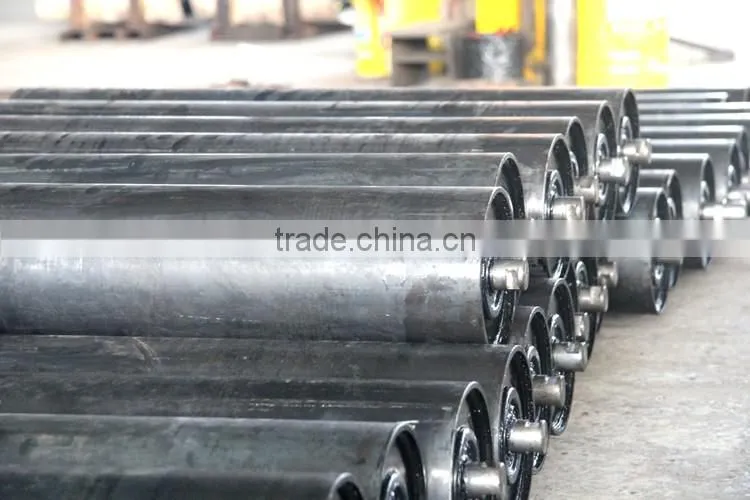

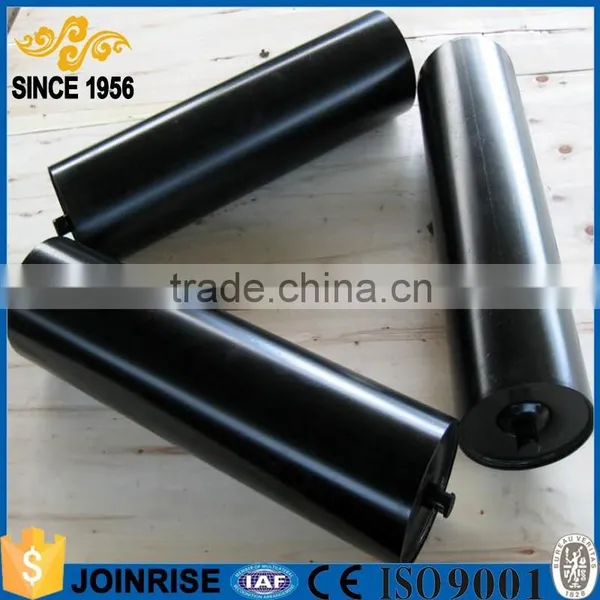

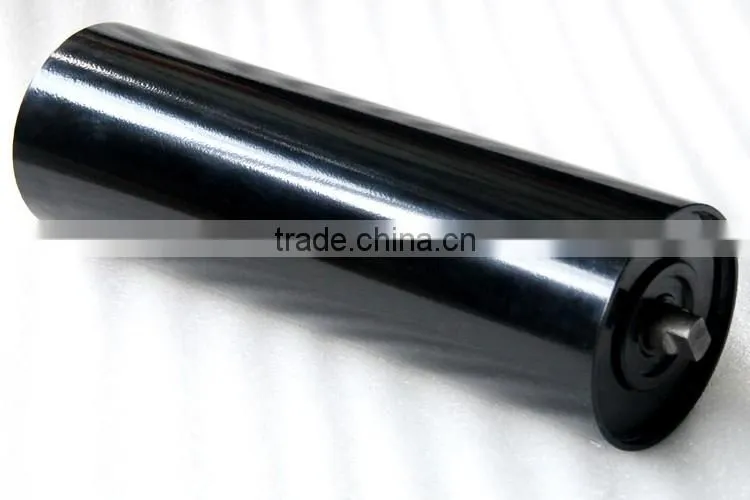

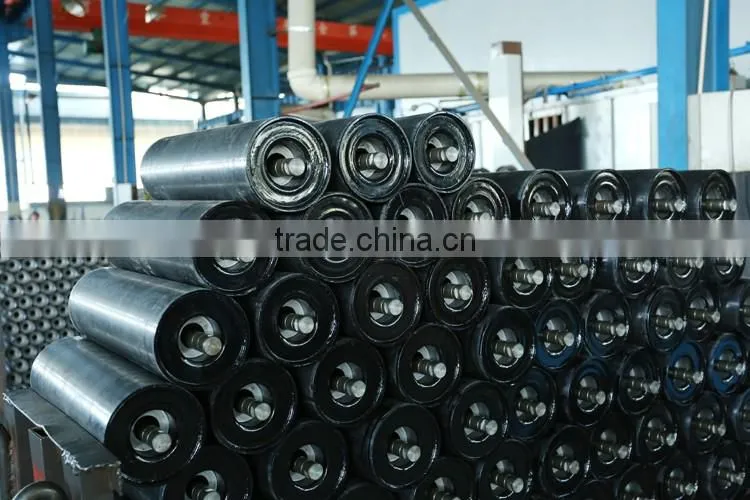

High-performance industrial transportation belt conveyor steel roller
Henan Joinrise are a profesional manufacture of specially producing all kinds of Conveyor idlers & rollers & pulley, including Carrying idlers/roller ,Impact idlers/roller, Return idlers/roller, Training idlers/roller, Guiding idlers/roller, and Conveyor pulley & different types of Frame.
The function of Conveyor idler/roller is supporting the conveyor and conveying materials, therefore, the quality of conveyor idler/roller is particularly important.

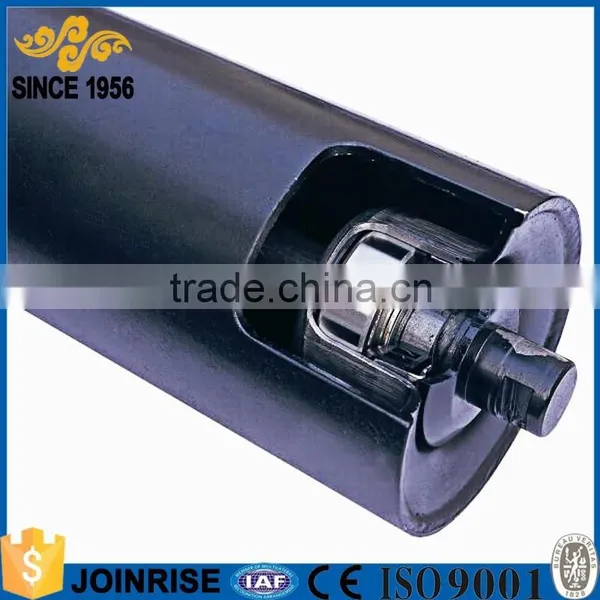

Parallel conveyor belt roller is used for supporting the weight of the basecoat rubber belt. It consists of shell, axis, bearing, bearing pedestal and seal ring.
Roller Idlers Dia |
89mm-159mm |
Roller Length |
190mm- 530mm |
Roller Material |
Q235 Or Seamless Steel Tube |
Roller Bearing |
Double Row Deep Groove Ball Bearing ( NSK, SKF, FAG, NTN and so on) |
Roller Welding |
CO2 gas shielded arc welding end |
Roller Lubrication |
Grease is Lithium soap type grease with Rust Inhibitors. |
Roller Seals |
Grease retaining inner seal with Multi-stage Labyrinth |
Roller Application |
Steel industry, harbor, coal industry, power industry, cement industry, etc |
|
|
|
|
|
|
| Roller conveyor idlers basic parameters and dimensions and bandwidth combination table | ||
| Belt width (mm) | Roller Diameter (mm) | Roller length (mm) |
| 500 | 63.5,76,89 | 200,315,600 |
| 650 | 76,89,108 | 250,380,750 |
| 800 | 89,108,133,159 | 315,465,950 |
| 1000 | 108,133,159,194 | 380,600,1150 |
| 1200 | 465,700,1400 | |
| 1400 | 530,800,1600 | |
| 1600 | 133,159,194,219 | 600,900,1800 |
| 1800 | 670,1000,2000 | |
| 2000 | 750,1100,2200 | |
| 2200 | 800,1250,2500 | |

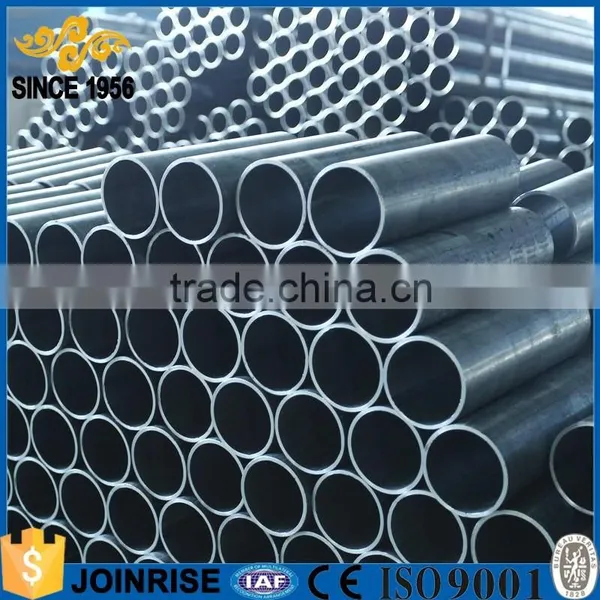

| The shell cutting of the conveyor roller | |
|
The welding of the conveyor roller |
| The test of the conveyor roller | |
1. Henan Joinrise Mining Equipment Manufacture Co.,Ltd is a fixed-point production facility for the original China Coal Mining Machinery Industrial Department.
2. It is one of the first organizations to be awarded the national Safety Sign Approval Certification.
3. It has passed ISO9001 International Quality System Certification, acquired the Industrial Products Manufacturing License.
4. It is a professional manufacturer of belt conveyors and have boast a technical and engineering team with rich practical experience.
1) We can design the conveyor roller as customer requested.
2) One-year warranty for free.
3) Any problems during use, you can freely contact with us by email or by telephone.
