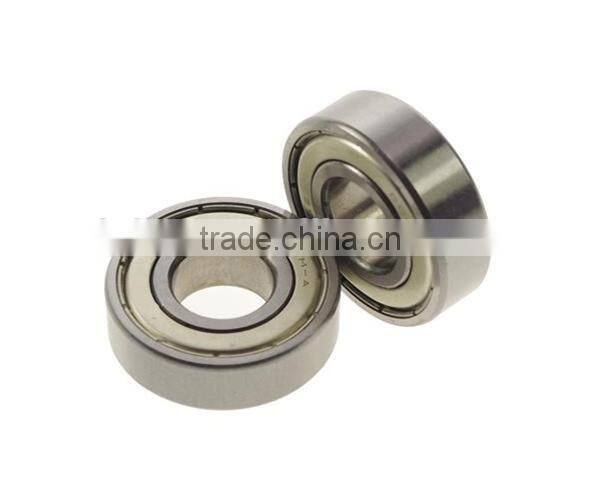

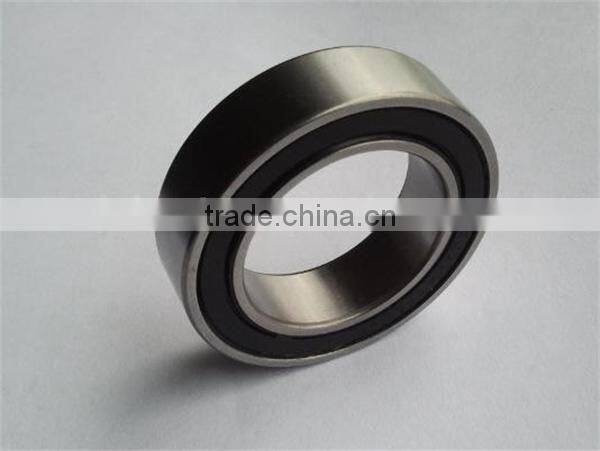

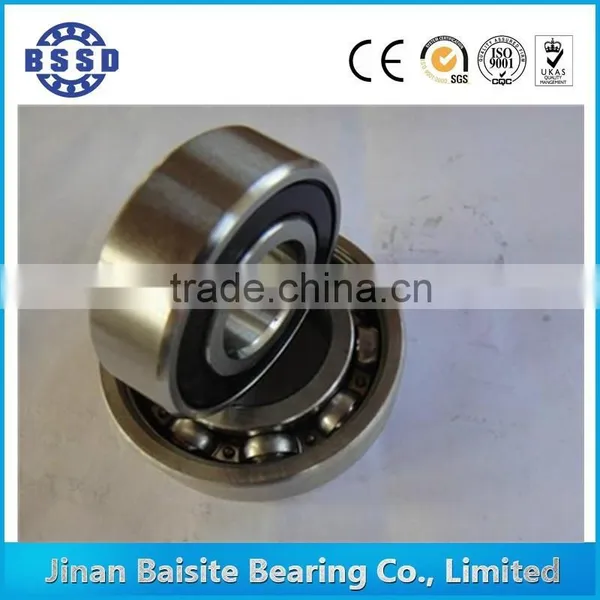

chinese manufacturing deep groove metric ball bearing 6308/2RS/C3
Single row deep groove ball bearings,commonly known as 'popular metrics',are rigid nonseperable radial bearings and are the most common bearings,used in a wide range of applications from agricultural equipment to printing machinery.
They are designed to carry both axial and radial loads.
Ball Bearing Type |
Deep Groove |
Bore Type |
Parallel |
Bearing Material |
Chrome steel |
Cage Material |
Steel |
End Type |
Sealed |
Inside Diameter |
40mm |
Outside Diameter |
90mm |
Race Width |
23mm |
Race Type |
Plain |
Number of Rows |
1 |
Limiting Speed |
8500rpm |
Static Load Rating |
24kN |
Dynamic Load Rating |
42.3kN |
Features

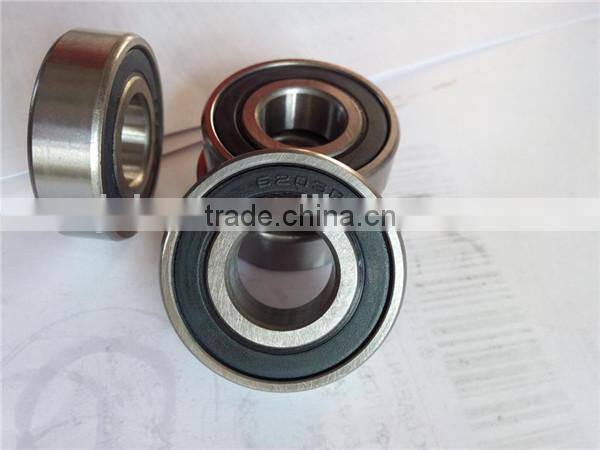

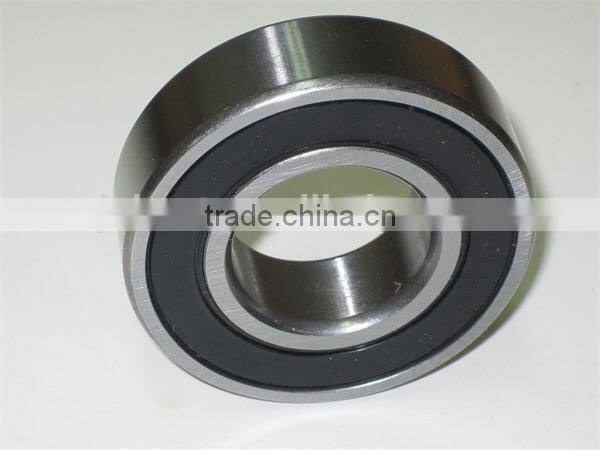

1.Sealed (2RS1) bearings are fitted with two synthetic rubber seals to prevent leakage of lubricant as well as entry of dust, water and other harmful material.
2.The seals are made from an oil and wear-resistant synthetic rubber with a steel reinforcement
3.Operating temperature from -40°C to +120°
4.Accepts radial and axial loads
5.Both standard and C3 clearance available

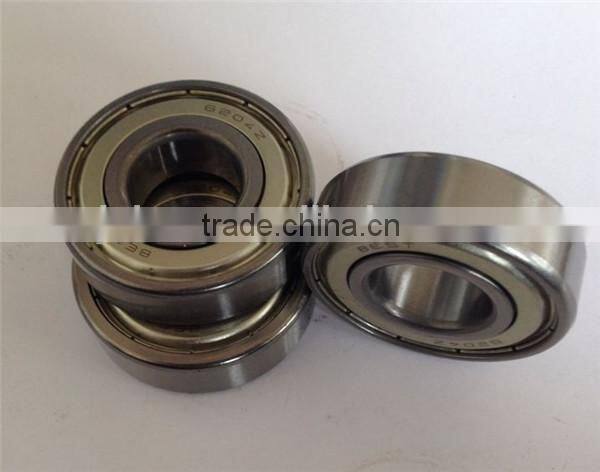

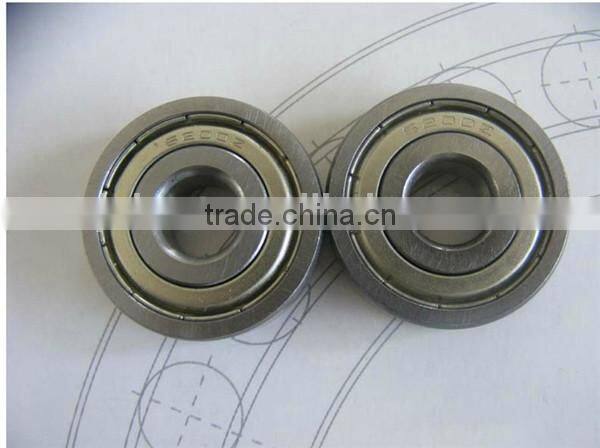

Double shields of deep groove bearing

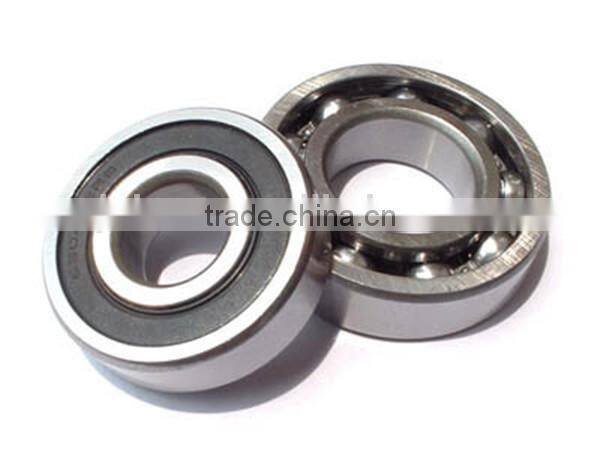

In a deep groove radial bearing have deep,uninterrupted raceway grooves.These raceway grooves have a close osculation with the balls, enabling the bearings to accommodate radial and axial loads in both directions thus can support higher loads.
These bearings are very versatile and are simple in design,non separable,suitable even for very high speeds and require little maintenance.
Deep groove ball bearings are the most widely used bearing type. Consequently, they are available in many designs, variants,series and sizes.

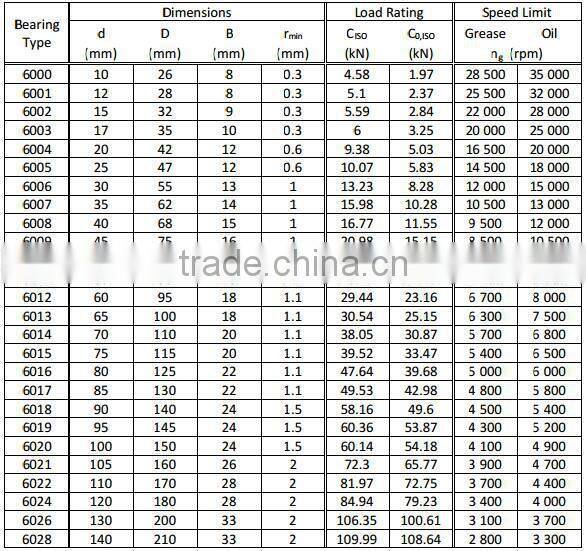

deep groove bearings specifications
Where to buy bearings?
Here at Jinan Baisite bearing Co.,Ltd,
we offer the full range of bearings including ball, self-aligning,angular contact,roller,cylindrical, needle and spherical bearings at highly competitive prices which are available for 2-10 days delivery.
