Specifications

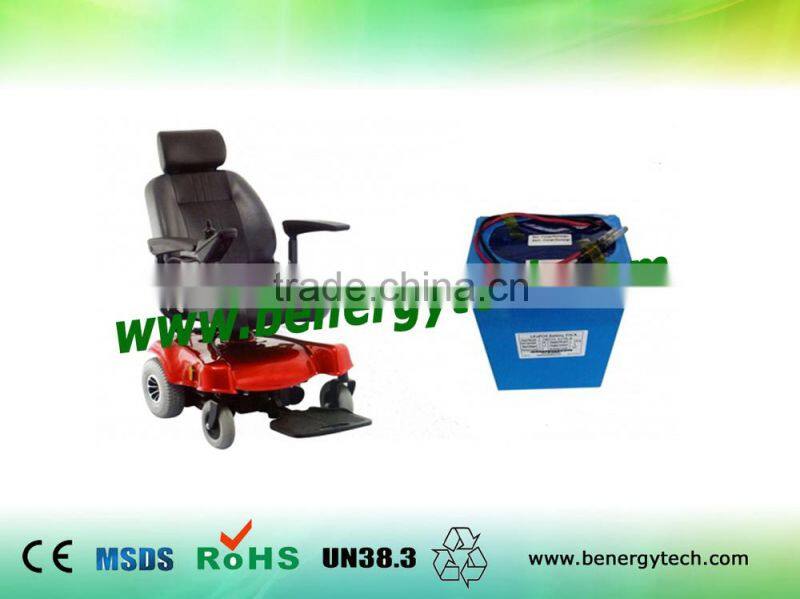

48V 20AH Lifepo4 Battery for electric scooter/motorcycle.Higher rate discharge, lighter weight,smaller size,customized design
48V 20AH Lifepo4 Battery for electric scooter/motorcycle/wheelchair, PVC packed or matched with iron cases.
Product advantages:
1. Long cycle life: More than 2500 times (charge and discharge at 1C, 80% capacity retention after 2500 cycles);
2. High safety: No fire and explosion in overcharge test;
3. Good charging and discharging performance;
4. Green Battery. All raw material of the batteries are environmental-friendly;
5. Wide working temperature range: From -10℃ to 60℃, extremely cold and hot weather will not affect its performance.
6.Produced with automatic equipments. With high performance and matched well.
Detail Specifications:
Nominal Voltage |
48V |
Rated Capacity |
20Ah |
Pack Dimension |
239*228*123(mm) (or customerized size) |
Internal Impedance |
≤90mΩ |
Charge Voltage |
36.8V~58.4V |
Charge Current |
0.2C~0.5C(4A~10A) |
Rated Discharge Current |
1C(20A) |
Max.Discharge Current |
2.5C(50A) |
Charging Mode |
CC/CV |
Pack weight |
About 11kg |
Over Current Protection |
Customized design |
Cycle Life |
More than 1500 Cycles |
Charge Temperature |
0-45 ℃ |
Discharge Temperature |
-20-55 ℃ |
Certificates |
CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001 |
Range With One Charge |
80km (Motor 500W) |
|
The data on the table is only for reference | |
Why choose Benergy as your supplier?
1.Professional lithium-ion battery pack for over 5 years (Since 2009).
2.Experienced R&d team to support.
3.Only make high quality battery
4.Whole battery solution battery+ BMS solution.
5.Offer OEM service for customer small order.
6.Quickly action & respond.
7.Best sale service and good price.
8:All of us,working hard.
Automatical producing, grading and testing process:
Fast delivery by various shipping ways:
Other Applications of Our Lifepo4 Battery:
EV |
Mini E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery |
UPS |
Telecom Base station, Lighting, Small Doctor instruments, Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor |
Power tools |
Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools |
Power storage system |
Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system |
