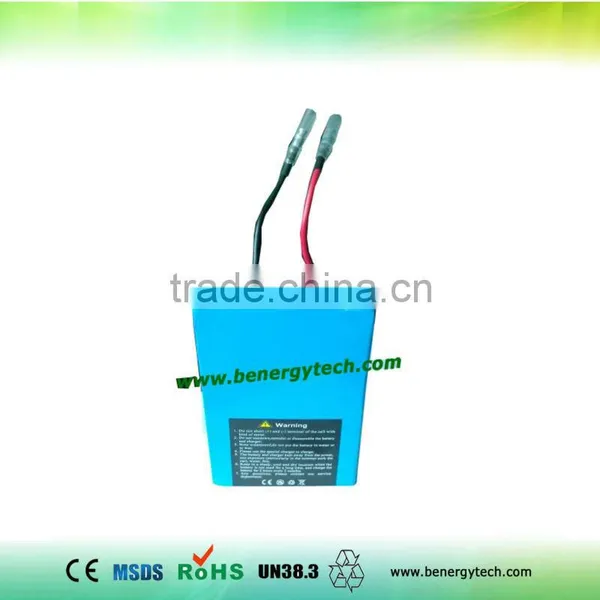

12V 20AH lithium battery Lifepo4 battery 12V 20AH battery

Specifications

12V 20AH Lithium Battery for energy storage system
High rate discharge, lighter weight,smaller size,customized design

12V 20AH emergency light battery, street light battery



With the emergence of wind & solar power and other new energy sources, the development of intelligent grid technology as well, large -scale energy storage station is becoming to meet peak power allocation. Benergy is developing he environmental-protection  lithium-ion energy storage battery with the lightest, fast charge and discharge, cycle file more than than 10,000 times to meet the future demand of energy storage stations and new energy vehicle charging stations. Benergy strives to become an advanced enterprise in the energy storage battery industry field.

Benergy 12V &24V standard lithium ion battery with excellent safety,high energy density, cell voltage detection, which could be connected with BMS to monitor the matter as well, which is most suitable for energy storage battery.



Product advantages:

1. Long cycle life (2000 cycles).  is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material. (such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.



Detail Specifications:





Item	Description
Nominal Voltage	12V
Rated Capacity	20Ah
Pack Dimension	275*200*26mm or customerized size
Internal Impedance	≤80mΩ
Charge Voltage	9.2V~14.6V
Charge Current	4A~10A
Min.Discharge Voltage	10.6V
Rated Discharge Current	30A
Max.Discharge Current	100A
Charging Mode	CC/CV
Pack weight	About 3.2kg
Over Current Protection	Customized design
Cycle Life	More than 1500 Cycles
Charge Temperature	0-45 ℃
Discharge Temperature	-20-55 ℃
Certificates	CE,ETL,RoHS ,MSDS,UN38.3, ISO/TS14001
The data on the table is only for reference



Why choose Benergy as your supplier?



1.Professional lithium-ion battery pack for over 5 years (Since 2009).

2.Experienced R&d team to support.

3.Only make high quality battery

4.Whole battery solution battery+ BMS solution.

5.Offer OEM service for customer small order.

6.Quickly action & respond.

7.Best sale service and good price.

8:All of us,working hard.



Other Applications of Our Lifepo4 Battery:



EV	Mini E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery
UPS	Telecom Base station, Lighting, Small Doctor instruments, Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor
Power tools	Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools
Power storage system	Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system





Automatical producing, grading and testing process:

Fast delivery by various shipping ways:

And different voltage and capacity is available!OEM orders are welcome !

Please feel free to contact us!
