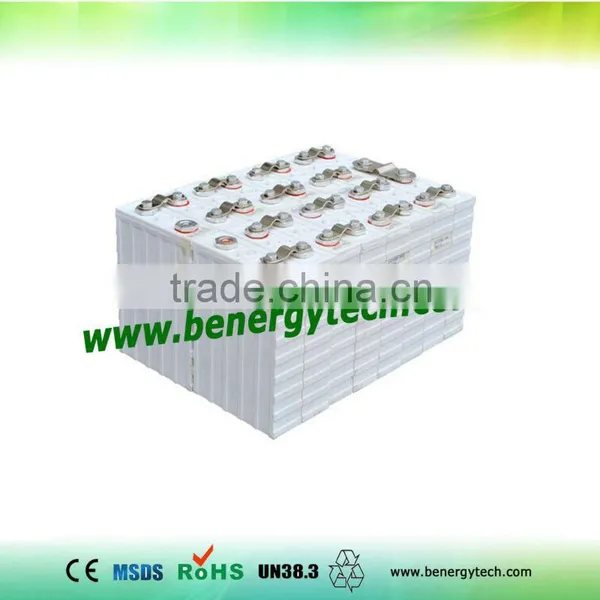

48V 180AH Lifepo4 Battery, Lithium Battery.
Product advantages:
1. Long cycle life (2000 cycles) is several times greater than Ni-MH, Ni-Cd or lead-acid.
2. No toxic, or polluting material(such as lead, cadmium, mercury) is contained in lithium battery, which is a kind of green battery.
3. High safety. LiFePO4 is an intrinsically safer cathode material than Lithium-ion since exothermic reactions can not occur in batteries based on this material LiFePO4 cells do not incinerate or explode under extreme conditions.
4. Good performance in high-current discharge cycles. We can design different capacity and size according to your demands.
For many applications, our battery systems result in significantly lower total cost of ownership over lead acid because lighter-weight, longer-life batteries means fewer replacements, reduced maintenance and service costs, less shipping and material handling costs, and lower total inventory carrying costs.
Detail Specifications:
Item |
Parameters |
Remark |
|
Nominal voltage |
48V |
|
|
Nominal capacity |
180Ah |
0.2C5A discharge |
|
Max Charge voltage |
58.4V |
|
|
Discharge Cut-off Voltage |
>38V |
|
|
Continuous Charge current |
90A |
||
Max Charge current |
180A |
||
Continuous discharge current |
≤ 360A |
||
Max discharge current |
≤ 900A (15 sec) |
|
|
Over-current protection |
200A |
or customized design |
|
Connection mode |
16S |
|
|
Battery box |
stainless steel housing |
|
|
Dimensions |
mm **mm *mm(L*W*H) |
or customized design |
|
Weight(Kg) |
About 90 Kg |
|
|
Charge/discharge port |
Connectors/Anen connector |
or customized design |
|
charging method |
standard |
0.2C5A×6 hrs.(reference value) |
(CC/CV) |
|
Fast |
0.5C5A×3 hrs.(reference value) |
|
Working temperature |
Charge |
0℃~+45℃ |
|
|
Discharge |
-20℃~+55℃ |
|
Storage Temperature |
-40℃~+40℃ |
|
|
Storage humidity |
5%~90% RH |
|
|
Other Applications of Our Lifepo4 Battery:
EV |
Mini E-car, e-bikes, e-scooter, e-motorcycles, Road Sweeper, golf cart, electric wheelchair, startup car battery |
UPS |
Telecom Base station, Lighting, Small Doctor instruments, Stand by Power, Mining lighting, LED torch, Video, Heating garment, data acquisition power, Electric water pump, Road side night warning indicator, laser sensor |
Power tools |
Electric lawn mower, electric drill, electric vacuum cleaner, Electrical tools |
Power storage system |
Solar system, Solar pv system, Solar LED street light,Tidal energy, Wind / solar energy, on & off grid solar system |
And different voltage and capacity is available!OEM orders are welcome !
Please feel free to contact us!
