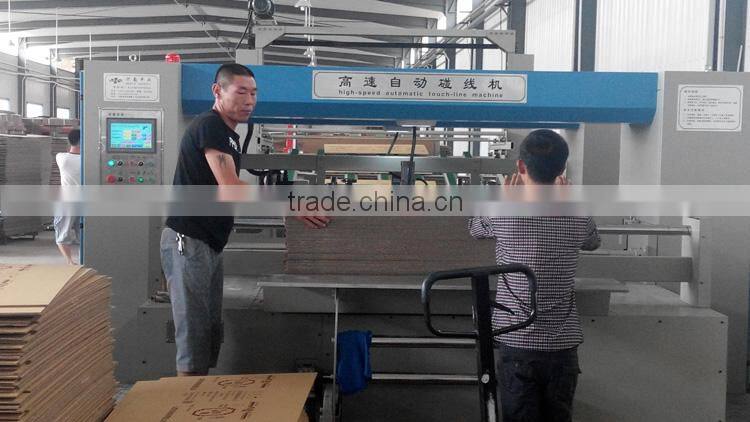

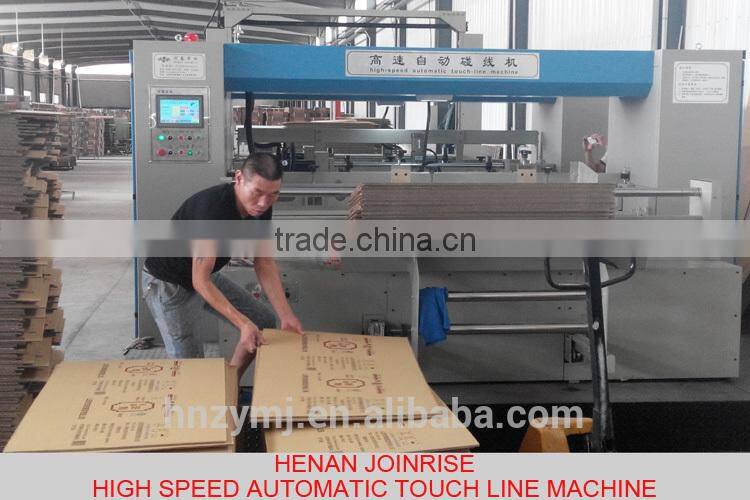

Corrugated Cardboard Creasing Machine Price of Carton Box Packing Machine
This machines is main used for impressing the join line of the corrugated paper board, which can make the carton easy to joint, all the drive joints of adopts the rolling bearing. It has light and quick transmission. It is easy to mend, and get a long service life, also the a elegant shape.
Corrugated paperboard machine features
1. Highly automated-man-machine interface with touch screen, PLC SIEMENS controls;
2. Sound performance-traditional concavo convex tools vertical pressing, inherited good forming quality, durable crease line, adjustable impression depth/size from the traditional standalone impressing machine. The frontal paper feeding allows no crush and good flatness, and a perfect solution to carton die cutting and pressing after notching;
3. High speed-economic speed of 80-100 pieces/min;

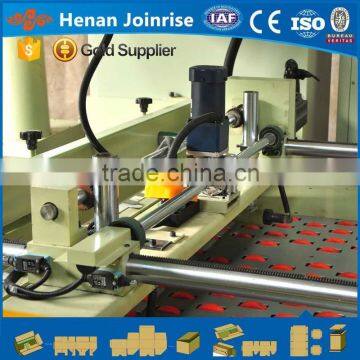

4. High accuracy-positioning section controlled by servo motor and photoelectric register with an accuracy of ±0.5mm.
Corrugated paperboard machine technical specification
Type(mm) | Max. Size Paperboard (mm) | Min. Size Paperboard (mm) | Carton Height (mm) | Cover Size (mm) | Speed(piece/min) | Accuracy | Dimensions(mm) |
| 2000 | 800*1900 | 360*800 | 0-500 | 100-250 | 80-100 | ±0.5mm | 4000*2900*1900 |
| 2200 | 1100*2100 | 360*800 | 0-500 | 100-300 | 80-100 | ±0.5mm | 4000*3100*1900 |
| 2500 | 1250*2400 | 360*1000 | 0-800 | 100-350 | 70-90 | ±0.5mm | 5000*3400*1900 |
NB: Above specifications are only for reference, customized specifications available.
Corrugated paperboard machine structure and configuration

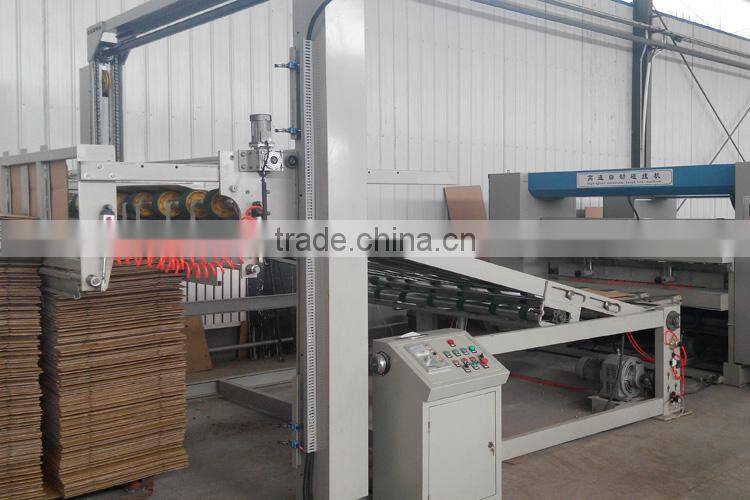

Main sections: Feeding, Running, Pressing, Positioning, Palletizing
Configuration: VECTOR Servo Drive for main machine (4kw) 2 sets, INVT variable frequency motors 2 sets, VECTOR Servo Motor (2.2kw) 2 sets, SIEMENS CPU, 7.0 Kunluntongtai Man-Machine Interface, Suction Fans 5 sets

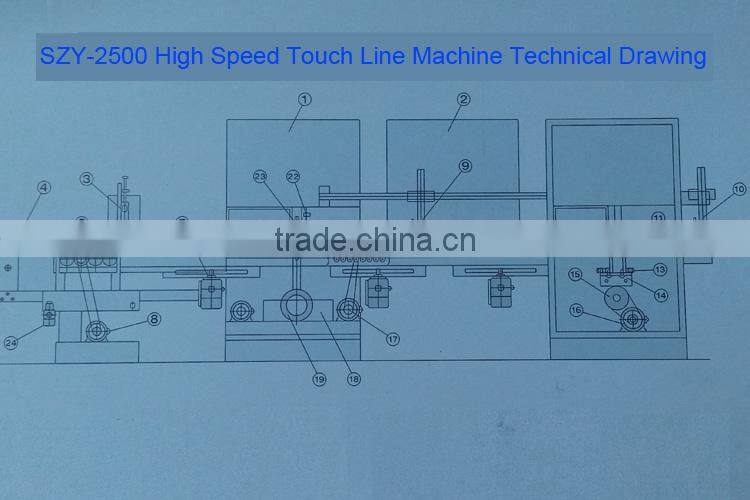

Corrugated paperboard machine technical drawing
1.Shield 2.Electrical Cabinet 3.Feeding Positioning 4.Feeding Backstop 5.Feeding Suction Bellow 6.Running Suction Bellow 7.Running Suction Fan 8.Feeding Running Motor
9.First Pressing Positioning 10.Second Pressing Positoning 11.Pressing Upper Tool
12.Pressing Lower Tool 13.Pressing Lower Tool Adjustment Bolt 14.Pressing Lower Tool Fixing Bolt
15.Pressing Tool Main Drive Gear 16.Pressing Motor 17.Running Suction Fan Drive Motor
18.Pressing Cam Lubricant Oil Tank 19.Pressing Cam 20.Pressing Cam Connecting Rod
21.Pressing Adjustment Screw 22.Pressing Upper Tool Positioning Sensor Switch
23.Positioning Servo Sensor Switch 24.Feeding Size Mobile Motor
Why Choose Our Touch Line Machine
1. Sub-pressure type frontal paper feeder minimizes paper feeder’s compressive loss to carton;
2. Tool positioning structure ensures high speed and prevents irregular sizes or deflection of paper covers;
3. PLC computerized control of row size, automatic accuracy adjustment ± 0.5mm;
4. Double gantry intensified design ensures regular and shapely impression depth;

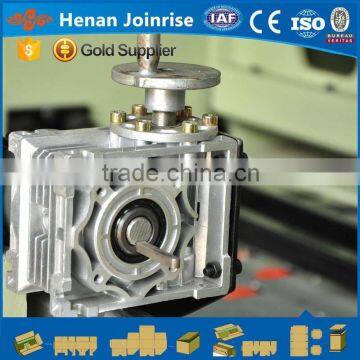

5. Built with glass hard 20 cmo precision gears and long service life;
6. Automatic oil spray and dripping lubrication for gearbox;
7. Clear man-machine interface for easy operation;
8. Start alert and clearing alert systems guarantee the safety of operator.
