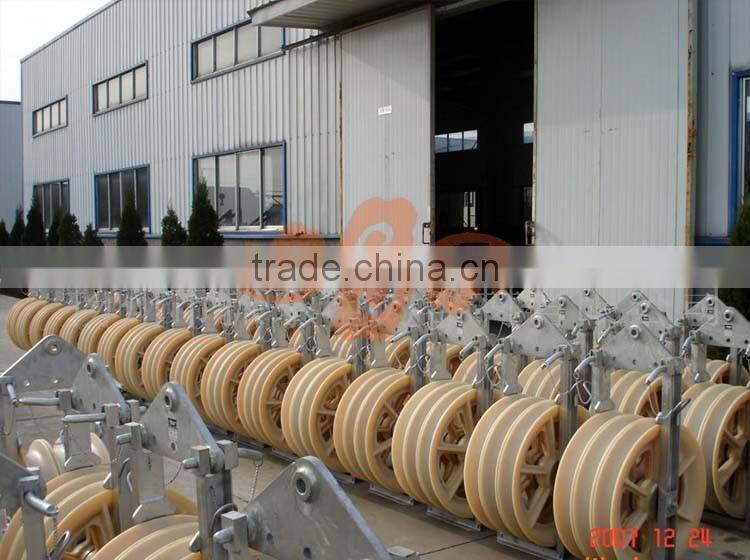

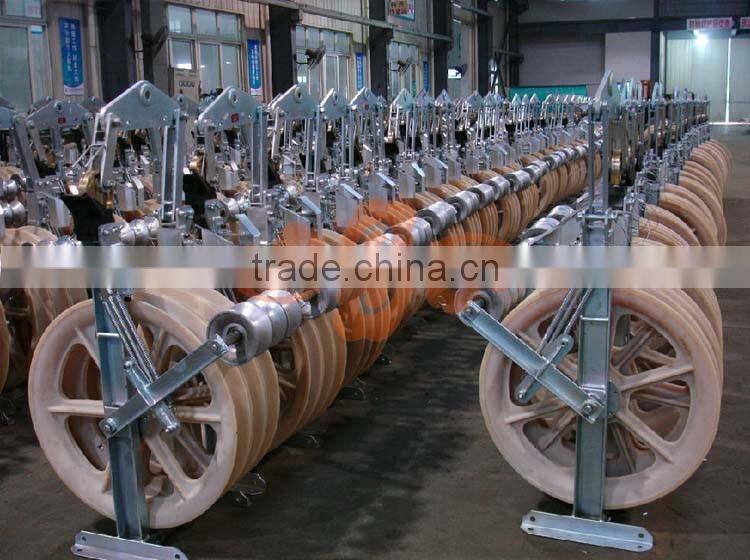

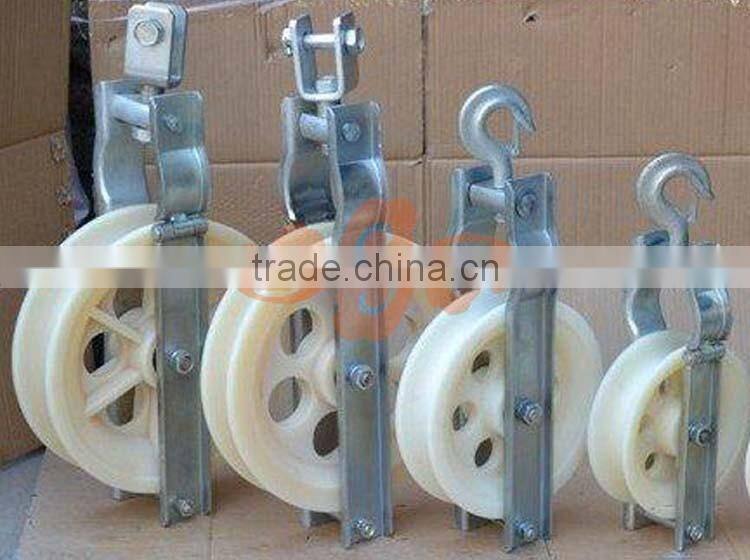

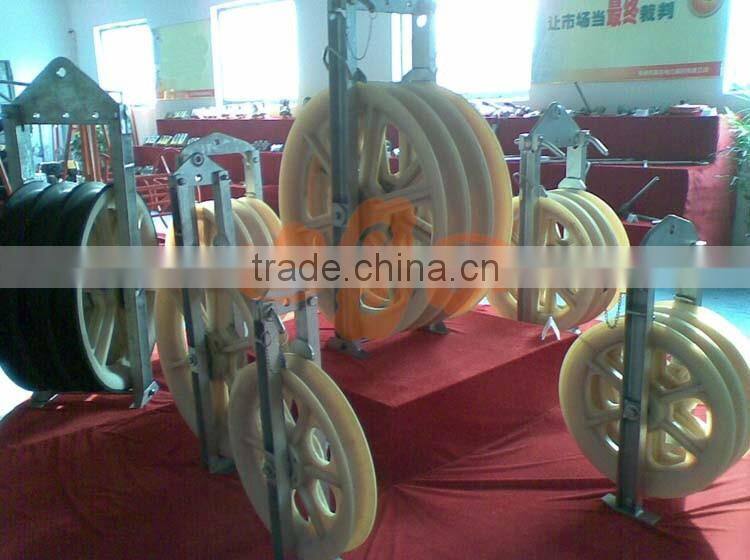

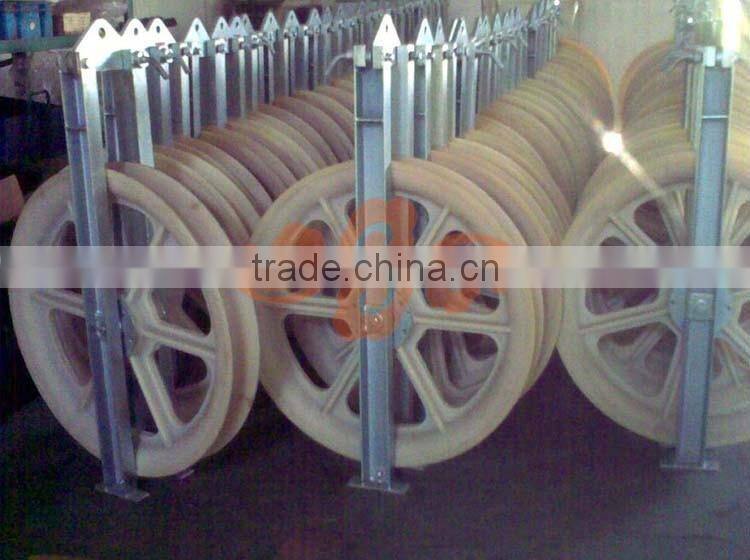

Help CenterGalvanized Steel Frame Nylon Pulley Block
Related Products
Clectric Cable Pulley with variety model provided by
honest supplier
Henan Joinrise Mining Equipment Manufacture Co., Ltd.

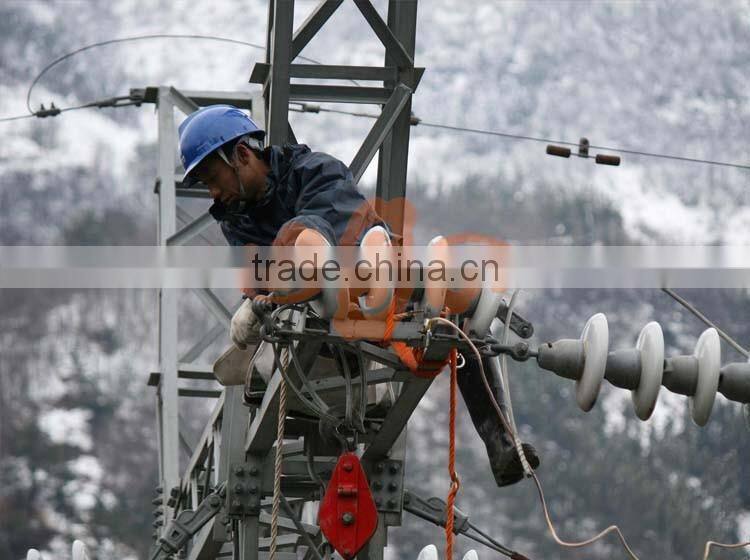

Usage:Protect the cable and conductor from fricting when they are laying.They can save time and effort.
Description:

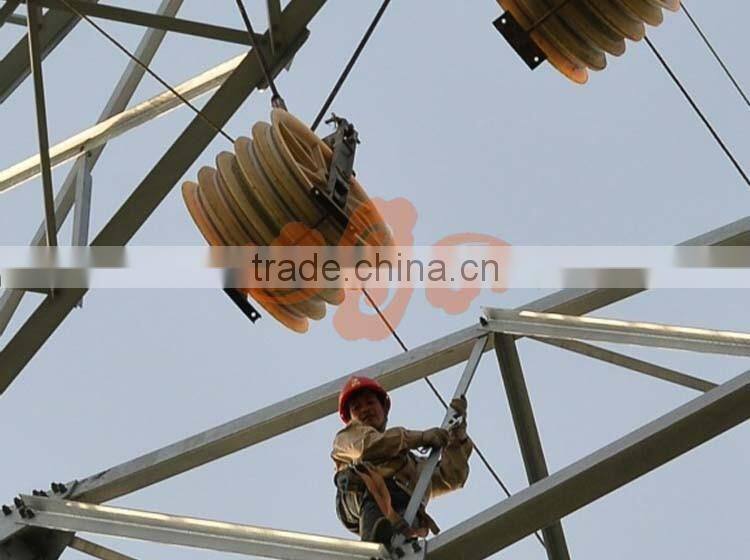

a. We manufacture a lot of models for different uses in the overhead transmission line construction.
b. They have are used to support conductors,OPGW,ADSS, communicatio lines.

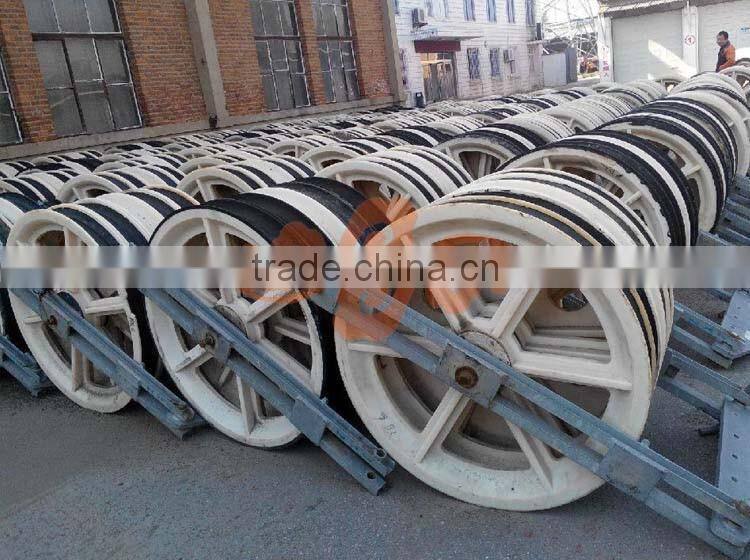

c. The sheave of the pulley blocks are made from higth strength MC nylon,or aluminum materials ,and the frame of blocks are made of galvanized steel.The lateral ones are mounted on ball bearings.
Remarks:All kinds of pulley blocks can be manufactured according to the customers's requirements.
Parameters of Clectric Cable Pulley
| Type | No. of Pulleys | Rated Payload (KN) |
Groove Rood Diameter (mm) |
Applicable Lead (mm2) |
Weight (Kg) |
| DNH1-508x75 | 1 | 20 | φ408 | ≤LGJ-400 | 17 |
| DNH1-660x90 | 1 | 20 | φ560 | ≤LGJ-400 | 31 |
| DNH1-660x100 | 1 | 20 | φ560 | ≤LGJ-400 | 32.5 |
| DNH1-780x90 | 1 | 20 | φ660 | ≤LGJ-400 | 28.5 |
| DNH1-822x110 | 1 | 20 | φ710 | ≤LGJ-720 | 43 |
| DNH1-916x110 | 1 | 50 | φ800 | ≤LGJ-400 | 45 |
| DNH3-508x75 | 3 | 40 | φ408 | ≤LGJ-400 | 45 |
| DNH3-650x75 | 3 | 50 | φ550 | ≤LGJ-400 | 58 |
| DNH3-650x85 | 3 | 50 | φ550 | ≤LGJ-400 | 62 |
| DNH3-650x90 | 3 | 40 | φ560 | ≤LGJ-400 | 75 |
| DNH3-660x100 | 3 | 40 | φ560 | ≤LGJ-400 | 77.5 |
| DNH3-780x90 | 3 | 40 | φ660 | ≤LGJ-720 | 85 |
| DNH3-916x110 | 3 | 50 | φ800 | ≤LGJ-720 | 127 |
| DNH5-650x85 | 5 | 50 | φ550 | ≤LGJ-630 | 82 |
| DNH5-660x90 | 5 | 60 | φ560 | ≤LGJ-400 | 112 |
| DNH5-660x100 | 5 | 60 | φ560 | ≤LGJ-400 | 120 |
| DNH5-916x110 | 5 | 100 | φ800 | ≤LGJ-720 | 213 |
| DNH5-916x126 | 5 | 120 | φ800 | ≤LGJ-720 | 230 |
| DNH5-660x90 | 7 | 50 | φ560 | ≤LGJ-400 | 144 |
1. What is the advantage of Joinrise compared to other suppliers?
Since the manufacturing team all possesses years of experience, Joinrise can provide conveyors and accessories with competitive price and superior service. We have professional sales team, production team, researching team.
2. What is the price policy of your company?
In our company, the price is different according to the quantity of your order, the more the cheaper. For more detailed information, you can contact our customer service representatives.
3. What are the features of the services your company offered?
Based on the wide product range, we offer the best One-Stop sourcing service and all-around after-sales service . We will definitely save you a lot of time and money. It will improve your efficiency significantly and be more economical.
4. What is the payment of your company?
Joinrise accepts the payment of T/T and L/C, 30%T/T in advance, 40% after shipment, the balance D/P,everything can be further discussed.
