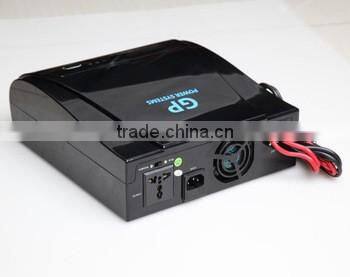

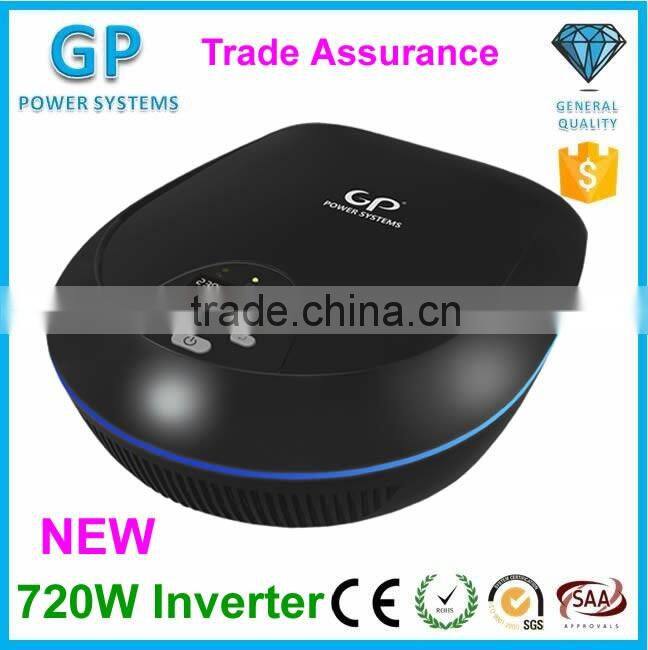

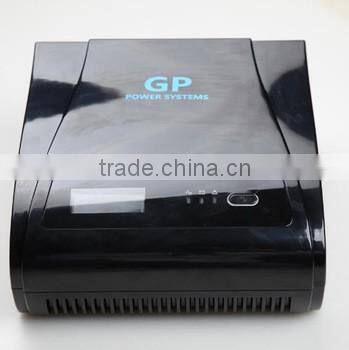

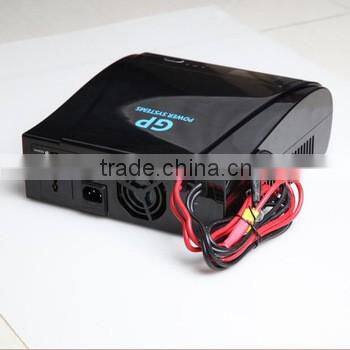

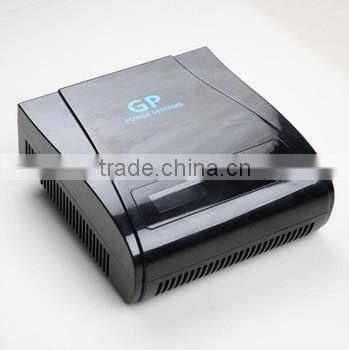

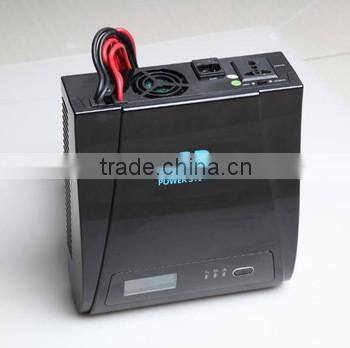

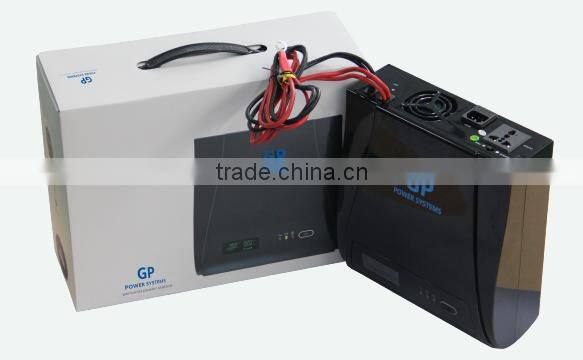

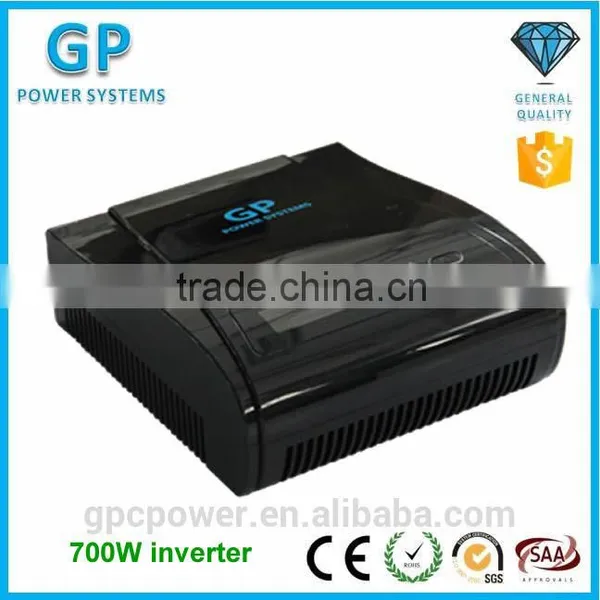

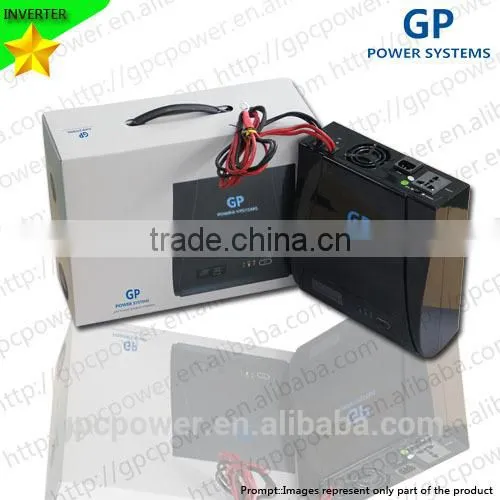

GPC1200S inverter 1200Va ac power supply 720W inverter for solar panel
1200Va ac power supply 720W inverter specification:
• High conversion efficiency, smart soft start function.
• Multiple protection circuit for low voltage
• Smart, light, easy for carry
• Portable size power inverter
• Electricity - Battery automatic conversion
• Different choice of input voltage range
• High efficiecy rate of DC - AC conversion, minimize energy loss
• 10A/20A charge current manual select
• Different front panels to choose
• Intelligent charge control, can ensure the effective charging,but can not avoidexcessive charging
• Ultra-load protection• With the multiple protection circuit, no harm to equipments
• Modified/Square waveform output.
• 21 years' experience in home power supply industry.ProtectionTo ensure the safety of the power inverter, five protections are designed,including reverse polarity protection, over voltage protection, low voltageprotection, short-circuit protection, ground fault protection.ApplicationThis power inverter is extraordinarily designed for home use, which can convertDC 12V of portable power supply to AC 230V and it works for almost all thehousehold electrical resistive appliances such as MP3/MP4 player, cell phone,laptop, emergency light, electric blanket, electric shaver, electric cooker, digitalcamera, digital video, CD/DVD player, XBOX/PS4 game player, ordinary electriclamps, bulb, rice cooker, electric iron, desktop computer, fax machines,printers, LCD TV, electric fans, cell phone chargers, electric iron , drinkingfountain, hair dryer and so on.(Note: Only pure sine wave inverter can runsensitive electric appliances that are including refrigerator, washing machine,microwave oven, induction cooker, electric drill,compressor, airconditioner,mercury lamp,
sodium lamp and so on)
| Inverter Model NO. | GPN1000 | GPN1200 | GPN2000 | ||
| Inverter Capacity | 1000VA/700W | 1200VA/900W | 2000VA/1500W | ||
| BATTERY | 12VDC | 24VDC | |||
| AC INPUT | Nominal Voltage | 220/230/240VAC | |||
| Selectable Voltage Range | Narrow | 170~280VAC | |||
| Wide | 90~280VAC | ||||
| Frequency Range | 50HZ/60Hz(Auto sensing) | ||||
| OUTPUT | Voltage | 230vac | |||
| Output Voltage Regulation | +10/-18% | ||||
| Frequency Range | 50HZ/60Hz | ||||
| Frequency Regulation(Bat.Mode) | +/-1 Hz | ||||
| Waveform | Modifided Sine-wave | ||||
| BATTERY& CHARGER | Charge Current | 20A | 15A | ||
| Overcharge Protection | 16V | 32V | |||
| TRANSFER TIME | Typical | 15ms Typical 40ms Max | |||
| EFFICIENCY | AC to AC | >95% | |||
| DC to AC | >80% | ||||
| DISPLAY INDICATOR | AC Mode | Display Output Power,Output Voltage | |||
| Battery Mode | The mark will flick every 1 second | ||||
| Battery Charging Mode | Display the battery capacity | ||||
| Fault | Display fault | ||||
| Audible Alarm | Low Battery at Battery Mode | Sounding every 2 seconds | |||
| Charger Voltage (Vbat>12.5V) | Sounding every 0.5 seconds | ||||
| Fault | Continuously sounding | ||||
| PROTECTION | Full Protection | Discharge,Overcharge,Overload,Over temperature,Short Circuit | |||
| PHYSICAL | Dimensions (W*H*D) | 296*268*91mm | |||
| Net Weight (kg) | 1.98kg | 2.29kg | 2.17kg | ||
| Environmental | Operating Enviroment | O.c.to 50C,5%.90% relative humidity(non-condensing) | |||
| Storage Environment | 000-15C to 55C,5% to 95% humidity(non-condensing) | ||||
| Noise Level | Less than 50dB | ||||
General Power Corporation, which was founded in Detroit City, Michigan State in 1928, was usually abbreviated to GP. GP is a large corporate enterprise, By the technology innovation of inverters, UPS and diesel generator. It has been a leader in the field of power source. After more than 80 years’ development, the products have been supplied to more than 140 countries. And in USA, Germany, Mexico, South Africa, China and Thailand, GP have already set up the manufacturing bases, with more than 1700 distributors and agencies, and 31.000 employees all over the world.GP is one of the Fortune 500 enterprises in US.
1.Five years warranty for free.
2. After the warranty period,engineers Maintenance aboard available.
3.Will get response within 24h.
