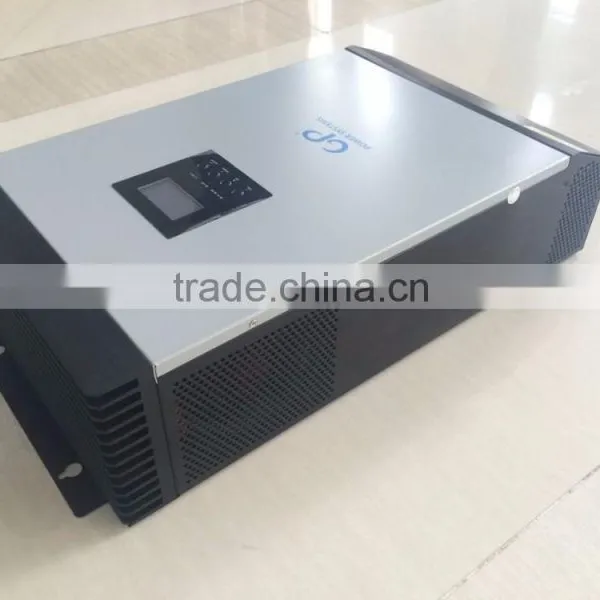

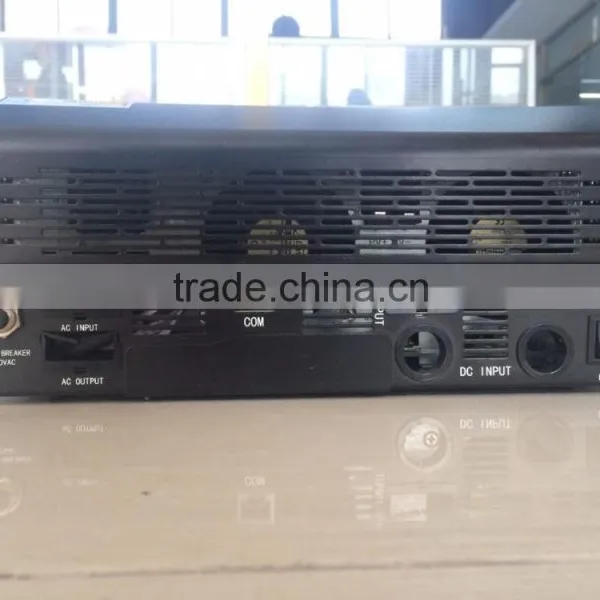

Inverter and Converter 1000W dc ac Inverter 230V for 12V 24V Battery Inverter Quality Choice
US$ 100 - 190
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GP
Model Number:
GPC- 1000W inverter and converter
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
GP Inverter Solar Power Inverter 3200W Single Phase Inverter 12V/24V/48V Pure Sine Inverter 4000VAUS$ 365 - 395MOQ: 1 Set -
12 Volt Inverter for Printer Solar Power Inverter 2000W dc to ac InverterUS$ 160 - 190MOQ: 1 Set
-
GP Inverter Computer Power Supply Inverter 2400W off Grid Inverter 220V for Smart HomeUS$ 260 - 290MOQ: 1 Set
-
GP Inverter Single Phase Inverter 2000W ac dc Power Inverter for Home AppliencesUS$ 190 - 230MOQ: 1 Set
-
Power Inverter 1200Va GPC1200S With PV Interface Slot Solar Inverter 720WUS$ 55 - 65MOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
GP
Model Number
GPC- 1000W inverter and converter
Output Power
Other, 1000W
Output Type
Single
Size
218*179*442mm
Weight
15KG
Input Voltage
100V/120V/220V/230V/240VAC
Output Voltage
100V/120V/220V/230V/240VAC
Type
DC/AC Inverters
Output Frequency
50/60Hz
Output Current
10A-60A

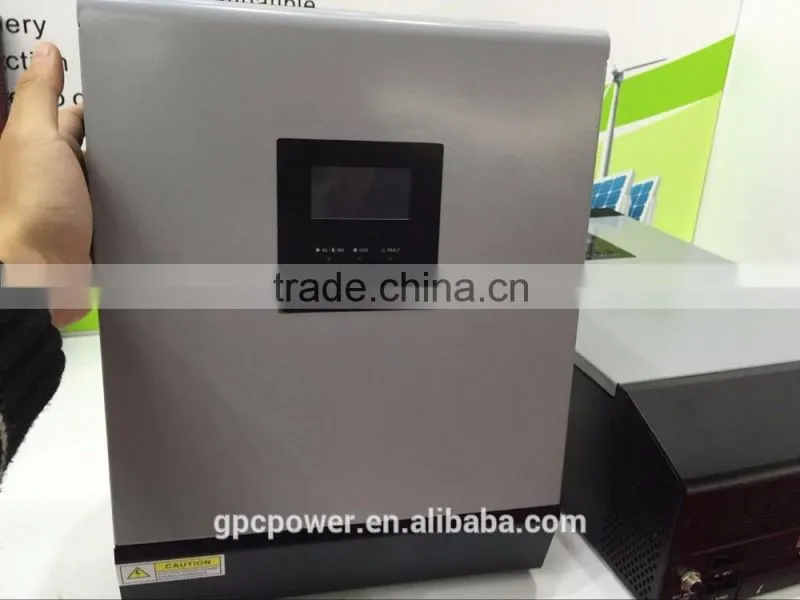

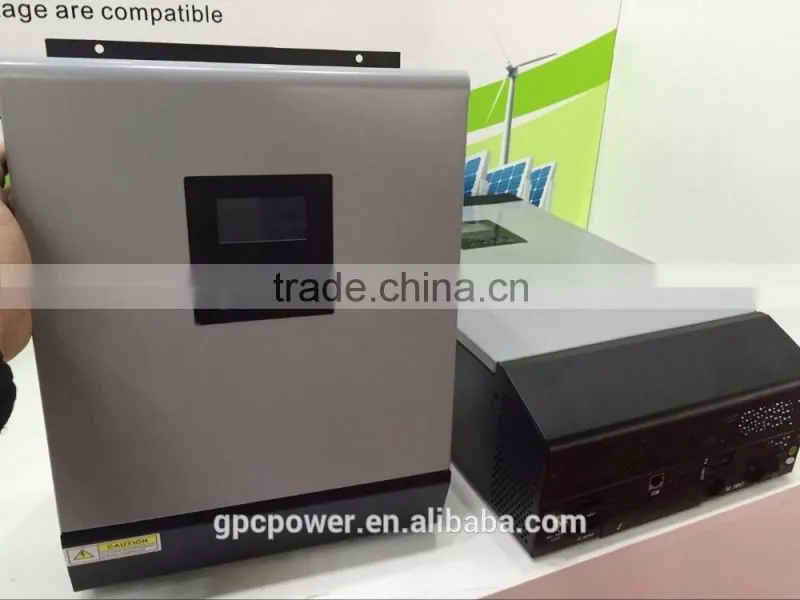

inverter and converter 1000W dc ac inverter 230V for 12V 24V battery inverter
Product Description
Feature:
inverter and converter 1000W :
1, Pure Sine Wave output wave form
2, Big Power for high overload ability
3, 3-step intelligent battery charging
4, 8 preset battery type selector for totally flat batteries
5, Less power consumption than convertional units
6, Ability to select power saver mode
7, Optional LCD display and Remote control swtich
8, Pure copper transformers
1, Charge current control, 25% ~50%~75%~100%
2, Big LCD display
3, LCD remote control switch
4, AC priority / battery priority for solar system
5, Built-in MPPT solar controller for optional
6, New toroidal transformer for the lowest idle current.
| Nominal Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10000W | 12000W |
| AC Input | |||||||||
| Phase & waveform | Single phase & sinewave | ||||||||
| Voltage | 120VAC/230VAC | ||||||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | 154VAC~273VAC | |||||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | 154Vac±4% | |||||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | 164Vac±4% | |||||||
| Line high Transfer | 135V±4%/253±4% | 273Vac±4% | |||||||
| Line high Return | 127V±4%/243±4% | 263Vac±4% | |||||||
| Frequency | 50Hz or 60Hz (auto sensing) | ||||||||
| Line Low Transfer | 47Hz for 50Hz,57Hz for 60Hz | 40Hz ±0.3 for 50Hz | |||||||
| Line high Transfer | 55Hz for 50Hz,65Hz for 60Hz | 80Hz ±0.3 for 50Hz | |||||||
| Output | |||||||||
| Phase & waveform | Single phase & sinewave(bypass mode sync to input) | ||||||||
| Voltage | 230VAC(bypass mode sync to input) | ||||||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | ||||||||
| Frequency | 50Hz±0.3Hz(bypass mode sync to input) | ||||||||
| Crest Power | 3 times of ratings | ||||||||
| Short Circuit Protection | Yes,shutdown after 10 s | ||||||||
| Power Factor | 0.9-1.0 | ||||||||
| DC Input | |||||||||
| Battery Voltage | 12V/24V | 12V/24V/48V | 24V/48V | 48V | |||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | 40Vdc | |||||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | 44Vdc±1.2Vdc | |||||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | 40Vdc±1.2Vdc | |||||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 64V for 48V | 64Vdc±1.2Vdc | |||||||
| Max Charging Current | 70A35A | 70A | 85A | 100A | |||||
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | 62.8V | |||||||
| Transfer Efficiency | |||||||||
| line Mode | >95% | ||||||||
| Battery Mode | >88% | ||||||||
| power saver | Available when the load is less than 25 Watts | <75W | |||||||
| Indicators | |||||||||
| LED /LCD | Line mode,Charging Mode,inverter mode, Fault | ||||||||
| Protections | low battery,over charging,over temp,over load | ||||||||
| Enviromental | |||||||||
| Operating Environment | 0-40℃,0-90%RH(non-condensing) | ||||||||
| Audible Noise | <60dB | ||||||||
| Physical | |||||||||
| Net Weight(KG) | 18 | 20 | 22 | 35 | 38 | 40 | 60 | 66 | 70 |
| D X W X H(mm) | 218X179X442 | 218X179X598 | 750x520x310 | ||||||
Company Information

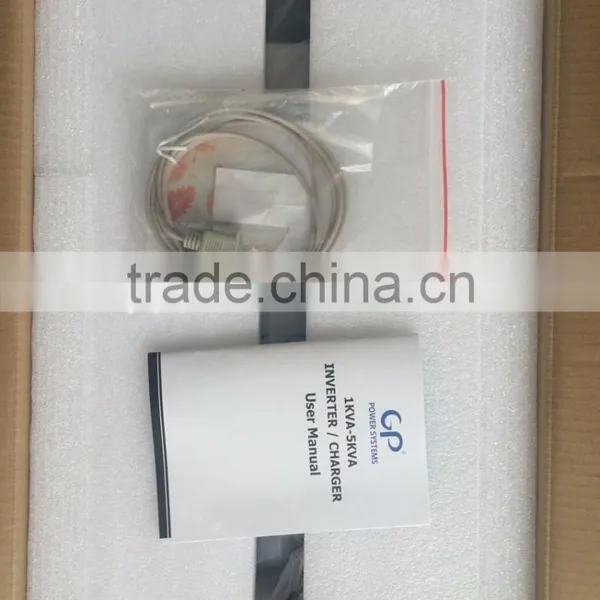

Packaging & Shipping

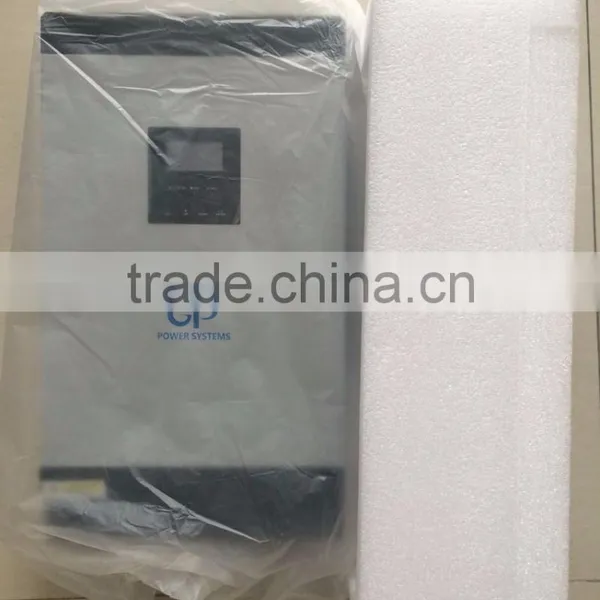

1.Original carton box with scientific design, styrofoam in it to keep safe.
2.Goods lead is in 5 days while in stock and 5-15 days when it is out of stock.
3.Shipping via DHL in 5-7 days or by sea in 10-30 days.
Our Services
1.Three years warranty for free.
2. After the warranty period,engineers Maintenance aboard available.
3.Will get response within 24h.
