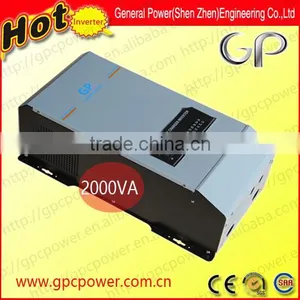

Help CenterUps Power Big Power Puer Sine Wave Inverter With ac Charger
Related Products
-
GP 3000watts Pure Sine Wave Big Power Charge Current InverterUS$ 260 - 285MOQ: 10 Sets -
GP 3000watts Low Frequency Pure Sine Wave Big Power Charging InverterUS$ 260 - 280MOQ: 10 Sets
-
GP 1kva High Quality Low Price Pure Sine Wave Solar Power Inverter With PWM ControllerUS$ 140 - 155MOQ: 50 Pieces
-
GP 2kva CE Approved Pure Sine Wave PWM Hybrid Solar Power Inverter 1kva~5kvaUS$ 180 - 200MOQ: 50 Pieces
-
GP 3KVA PWM pv Solar Power Pure Sine Wave Inverter 1kva~5kvaUS$ 190 - 210MOQ: 10 Pieces
Features:
On Inverter
1. High overload ability
2. Low battery voltage trip selectable, extracting max power from various batteries with different protections.
3. Low quiescent current, selectable sensing cycle to reduce power consumption.
On Battery Charger
1. 3-step intelligent battery charging.
2. 8 preset battery type selector plus de-sulphation for totallly flat batteries.
3. Powerful charge rate up to 70Amp, selectable charging current.
4. PFC(Power Factor Correction) for charger, less power consumption than conventional units.
On Transfer
1. Delay before transfer, extra protections for loads under generator mode.
2. Input AC voltage range selectable, for different kinds of loads.
3. 8 ms typical transfer time, guarantees power continuity.
4. 30A/40A through current ablility.
5. Output voltage regulation optional.
On remote control & other features
1. Ability to switch the unit on/off.
2. Ability to select/deselect power saver mode.
3. 17 alarms/warnings, informative for easier operation and trouble-shooting.
4. LCD status display available.
5. RS232 communication port optional.
| Technology Specifications: | ||||||
| Model No. | GPE | |||||
| Nominal Power | 2000W | |||||
| AC Input | ||||||
| Phase & waveform | single phase & sinewave | |||||
| voltage | 100V/120V/220V/230V/240VAC | |||||
| Acceptable Voltage | 194-243VAC164-243VAC(wide mode) | |||||
| Line Low Transfer | 85V±4%/184(154 wide mode±4%) | |||||
| Line Low Return | 95V±4%/194(164 wide mode±4%) | |||||
| Line High Transfer | 135±4%/253±4% | |||||
| Line High Return | 127±4%/243±4% | |||||
| Frequency | 50Hz or 60Hz(Auto Sensing) | |||||
| Line Low Transfer | 47Hz for 50Hz, 57Hz for 60Hz | |||||
| Line High Transfer | 55Hz for 50Hz, 65Hz for 60Hz | |||||
| Output | ||||||
| Phase & waveform |
Single phase & sinewave (bypass mode sync to input) |
|||||
| voltage |
100V/120V/220V/230V/240VAC (sane as input on bypass mode) |
|||||
| Voltage Regulation | ±10%rms(bypass mode sync to input) | |||||
| Frequency | 50Hz or 60Hz(Auto Sensing) | |||||
| Crest Power | 3 times of ratings | |||||
| Short Circuit Protection | Yes, shutdown after 10 minutes | |||||
| Power Factor | 0.9-1.0 | |||||
| DC Input | ||||||
| Battery Voltage | 12V/24V/48V | |||||
| Minimum Start Voltage | 10V for 12V, 20V for 24V, 40V for 48V | |||||
| Low Battery Alarm | 10.5V for 12V, 21V for 24V, 42V for 48V | |||||
| Low Battery Transfer | 10V for 12V, 20V for 24V, 40V for 48V | |||||
| High Voltage Alarm | 16V for 12V, 32V for 24V, 62.8V for 48V | |||||
| Max Charging Current | 20A-75A | |||||
| Over Charge Voltage | 15.7V for 12V, 31.4V for 24V, 62.8V for 48V | |||||
| Transfer Efficiency | ||||||
| Line Mode | >95% | |||||
| Battery Mode | >85% | |||||
| Power Saver | Available when the load is less than 50 Watts | |||||
| Indicators | ||||||
| 7-LED Display |
From the right to the left, LED1 line mode (green lighting),LED2 inverter mode(green lighting),LED3 charging mode(yellow lighting),LED4 Fully Charged(green lighting),LED5 over heat shutdown(red lighting),LED6 Overloaded shutdown(red lighting),LED7 Saving Mode(green lighting) |
|||||
| 3-LED Display | Charging Mode(green lighting),inverter mode(green lighting),Alarm(red lighting) | |||||
| LCD Display | Input Voltage,Output Voltage,Frequency,Battery Voltage,Load | |||||
| Switch selector |
Saving Mode is on/off when push the switch forwards/ backwards, keeping it horisontal is turning the inverter off |
|||||
| Audible Alarm |
Sounding when the heatsink's tem is over 105ºC and shutdown after 30 seconds |
|||||
| Protections | low battery,over charging,over temp,over load. | |||||
| Communications | RJ11/RS232(Optional) | |||||
| Enviromental | ||||||
| Operating Environment | 0-40ºC,0-90%RH(non-condensing) | |||||
| Audible Noise | <60dB | |||||
| Physical | ||||||
| Net Weight(KG) | 19 | |||||
| Dimension,D*W*H(mm) | 218*179*442 | |||||
General Power (SHENZHEN) Engineering Co., Ltd has 25000 square meter manufacturing base, more than 200 R&D employees. According to the features of China mainland power supply system environment and local industrial standard, GP Shenzhen keep optimizing the products to meet the local market's requirement. General Power (Shenzhen) Corporation always follow the principle of having the whole word in view and providing the best quality power products with the best price, satisfy with all users all over the world.
General Power products have been realized localization and applied to many fields like military,industrial, government, communication engineering, power supply system, traffic etc. and won a good reputation.
