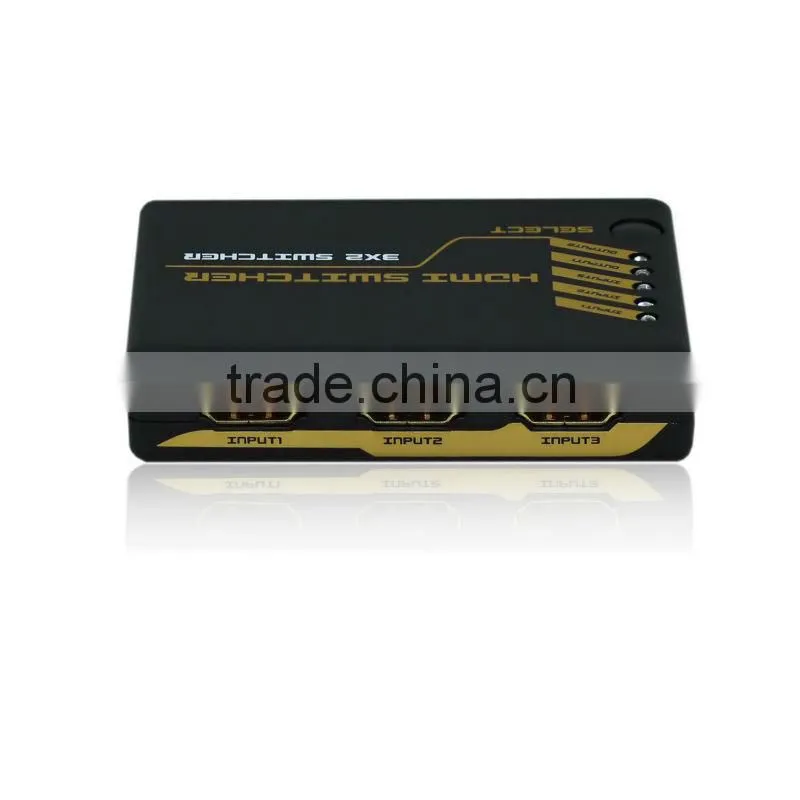

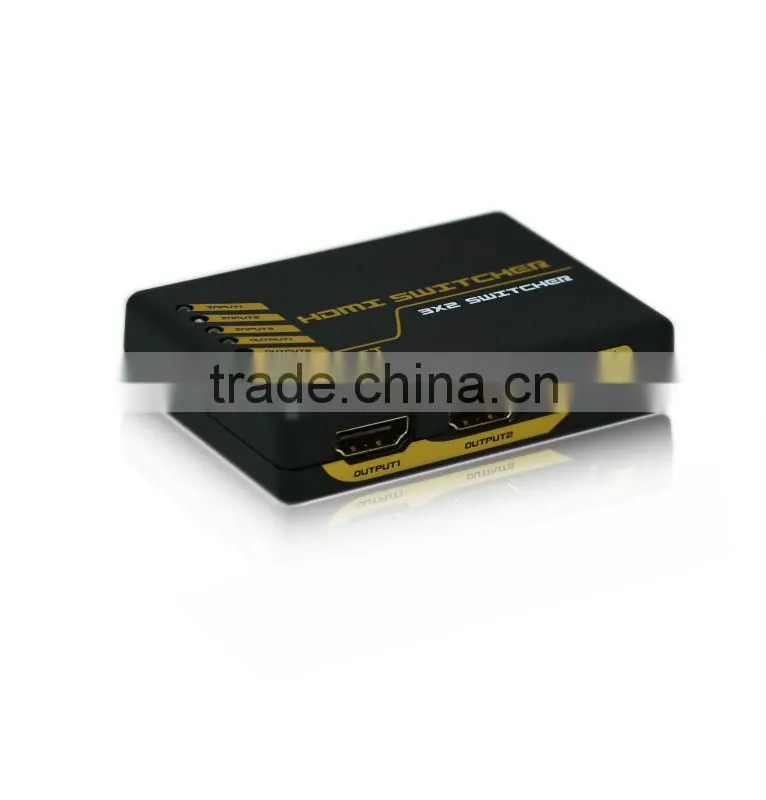

Help CenterSmart 3x2 Port Hdmi Switch Switcher With Remote PET0302
Related Products
-
Hi-fi System Hdmi Optical Audio Converter for Home Theater PETDTANegotiableMOQ: 100 Pieces -
3D 1080P HDCP 3x2 Port Hdmi Switch Switcher With IR PET0302NegotiableMOQ: 50 Pieces
-
3 in 2 Out Port Hdmi Switch Switcher for Multimedia PET0302NegotiableMOQ: 50 Pieces
-
3D 1080P 3x2 Port Hdmi Switch Switcher With IR HDCP Compliant PET0302NegotiableMOQ: 50 Pieces
-
HDMI Switch Splitter With Audio Support HDMI Cable 20m PET0402ANegotiableMOQ: 100 Pieces
Specifications
1)3 port HDMI Switch,Mini HDMI Switch 3x22)HDCP Compliant,1080P,with remote control
3)HDMI Adopter,REACH,RoHS,CE,FCC Cert
HDMI Amplifier Switcher 3 in 2 out with ir remote control
Introduction
3x2 HDMI Switcher routes high definition video (in multiple resolutions up to 1080p) and digital audio from any one of the three sources to display unit.
The output sends the high definition audio/video signals to high definition display. This kind of the HDMI Amplifier Switcher not only has the key-press-switching function, but also has the IR remote control and intelligent function.
Features
* Multifunctional on switching : intelligent or mechanical
* Three HDMI Input, two HDMI outputs
* Support HDMI1.3b, HDCP pass-through
* Support highest video resolution 1080p.
* High performance up to 2.25Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby
True HD)
* Support 3D
Specifications
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/250MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
5V DC@2A |
Power consumption (Max) |
5W |
IR extender receiver |
|
IR remote |
|
User Manual |
English Version |

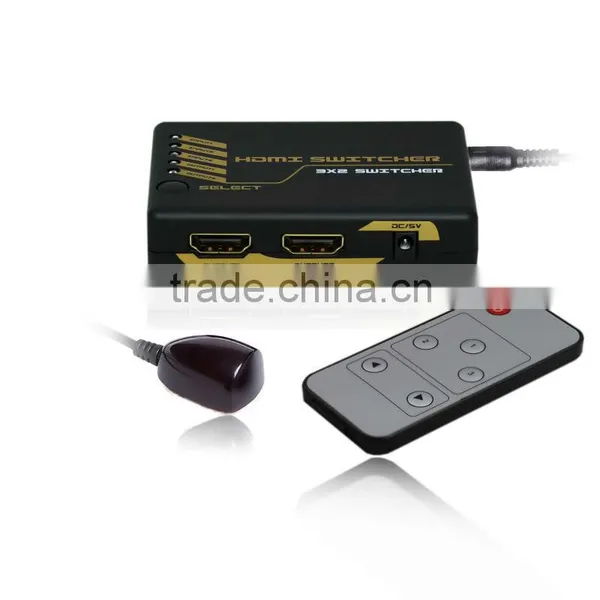

Package Contents
1) Main unit. (3 in 2 out hdmi switch )
2) Remote control
3) IR extender receiver
4) User Manual
5) Power adapter
Package : Neutral gift box,color box or custom design.
Bubble package reduce cost to least
Any question or information needed ,plz feel free to contact with us anytime, will reply you within 2 hours (during working time 8:00am - 5:30 pm ) , within 12 hours (off duty ) (Janet:) )
