Specifications
1.hdmi splitter 2 in 1 out2.Connect 2 HD device to HD display convenience for HD tv home theather
3.Free OEC service

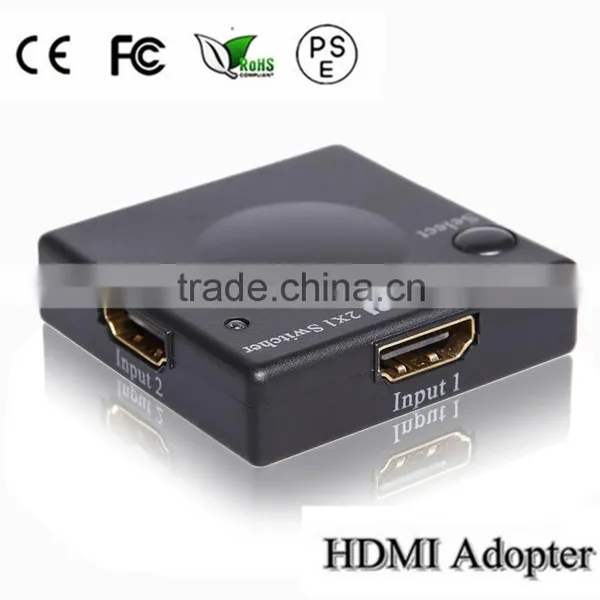

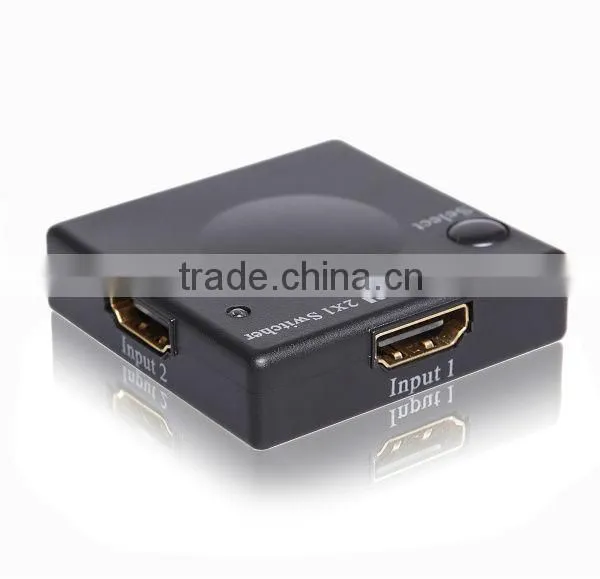

2 way automatic hdmi splitter 2 in 1 out Support 3D 1080P
1. Description
This kind of hdmi switch 2 input 1 output not only has the key-press-switching function, but also has the intelligent function. It routes high definition video (in multiple resolutions up to1080p) and digital audio from any one of the several sources to display units. All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for HD-DVD,SKY-STB, PS3, Xbox360 etc.
2.Features2
2.Feature
* hdmi switch 2 input 1 output Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
3.Specifications
| Input DDC Signal | 5 volts p-p (TTL) |
| Output Video | HDMI 1.3b |
| Maximum Single Link Range | 1920X1080p |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | No power needed |
| Power consumption (Max) | 5W / 1A |
| User Manual | English Version |
When to Use 1080p hdmi switch box
Do you not have enough HDMI inputs on your TV to handle all your new HD devices? You don't need a new TV and you don't need an expensive or bulky box. Just get this simple HDMI Switcher adapter instead! Plug this switch into your TV's input. Then plug the cable from each of your HD devices into the switch. That's it! So much better than plugging in and unplugging cables when you want to use the different pieces of equipment.
Neutral Packing color box for 2 to 1 hdmi switch
4.About us
As a specialized independent supplier of HDMI products, Protech focuses on high quality image process technology and application design,
owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM, ODM production.
