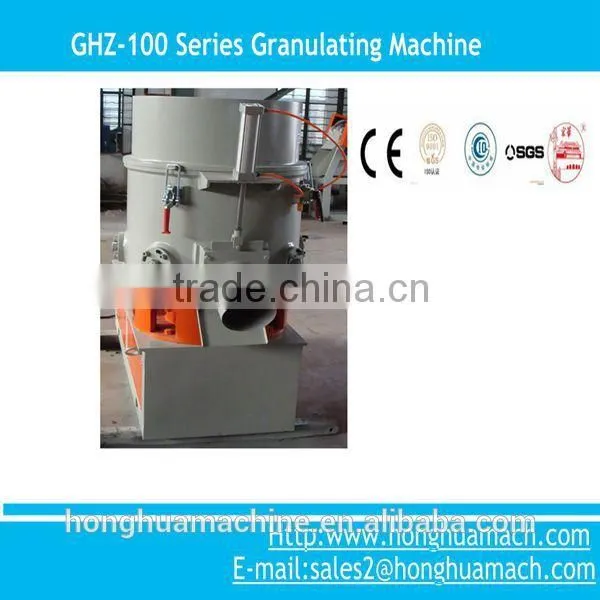

GHZ-100 Series Granulating Machine

GHZ-100 Series Granulating Machine photo-1
US$ 6,500 - 8,500 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HONGHUA
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Jiangsu, China
Brand Name HONGHUA
Model Number GHZ-100
Use Waste Plastic Crusher
Plastic Type PP/PE
Shaft Design Single
Power 37KW
Capacity 130L
Voltage 380V
Power(W) 37KW
Dimension(L*W*H) 1700*800*1400
Weight 1T
Certification ISO 9001 CE SGS
After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.thickness less than 2mm
2.suited :soft PVC,PE,PS,PP srcap and film can be agglomerated,even the EPS scrap.
3.30-year quality

                       GHZ-100 Series Granulating Machine







Product Description

 GHZ-100 high speed agglo granule machine is a kind of pelleting equipment,which can agglomerate the scrap and thermoplastic film,or the plastic product which thickness less than 2mm.The soft PVC,PE,PS,PP srcap and film can be agglomerated,even the EPS scrap.



 After jumping the scrap into the boiler,by the shearing function of the high speed revolved rotate blade and fixed blade,can quickly make the scrap and film into pieces.The sheared piece material flow along the boiler inner wall by the centrifugal force of the rotate blades,in the same time the scrap material up and down turnover by the function of the blow loaf,then flow from around to center.Due to the high speed,the scrap material friction and the blade friction will bring a lot of friction heat,then can make the material temperature rise up to the semi-plastic condition,the material will cemented bit.Add amount of water sprinkle into the boiler before the material joint block,when the hot material meet the cool water,will boil off at once and can take away the heat of the material surface,make the material surface cooling and anti-joint block,then the material will cut into granule(size anomalistic granule).As requested,also can mix the color,add some dye when cutting.



This material which produce by this type machine,can be used directly in the extruder,and injection machine.For some exact material product,need to extruding,pelleting and then can be used.



 GHZ-100 Series Granulating Machine technical parameters:



1,  Model :GHZ-100



2,  Pot body volume:  130L



3,  Effective capacity: 100L



4,  Rotary Blades Qty : 2pcs



5,  Fixed Blades Qty : 6pcs



6,  Rotary cutter rotation : 850r/min



7,  Mechanical power : 37KW



8,  Outline dimension :1700×800×1400



9,  Output:3T/Day



10,Weight:1T
