VGA extender splitter 300m 1 vga input 2 vga output
Item : long range video transmitter , VGA extender splitter
Introduction

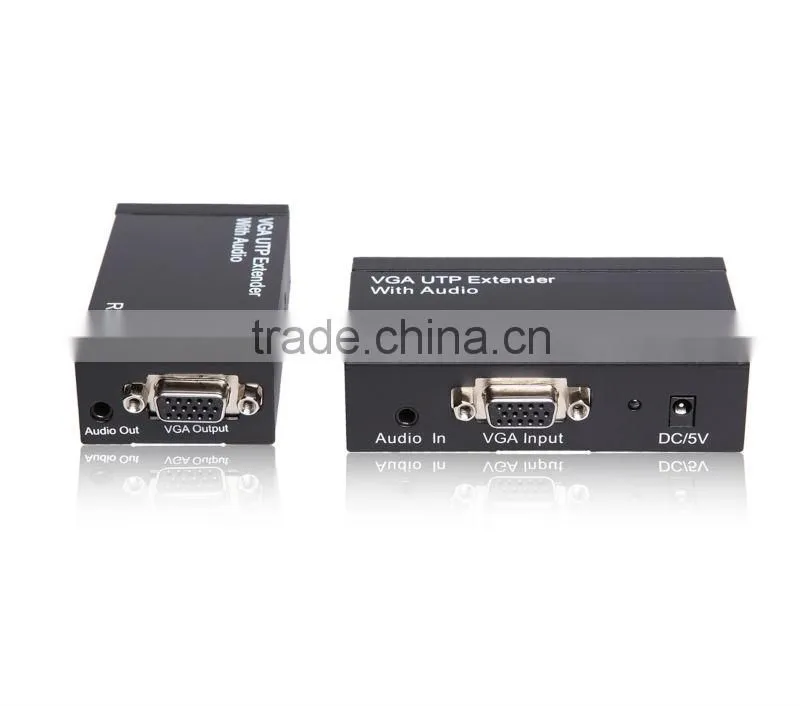

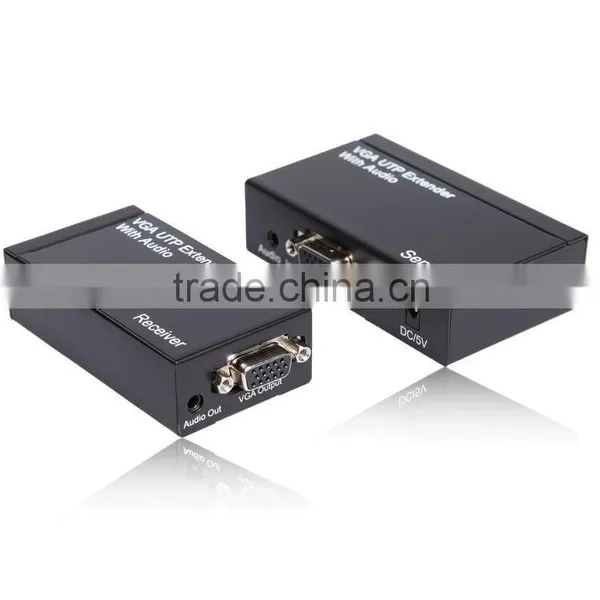

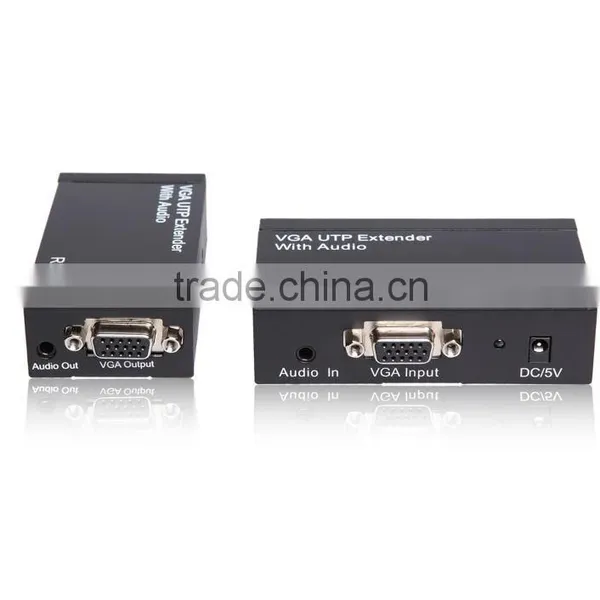

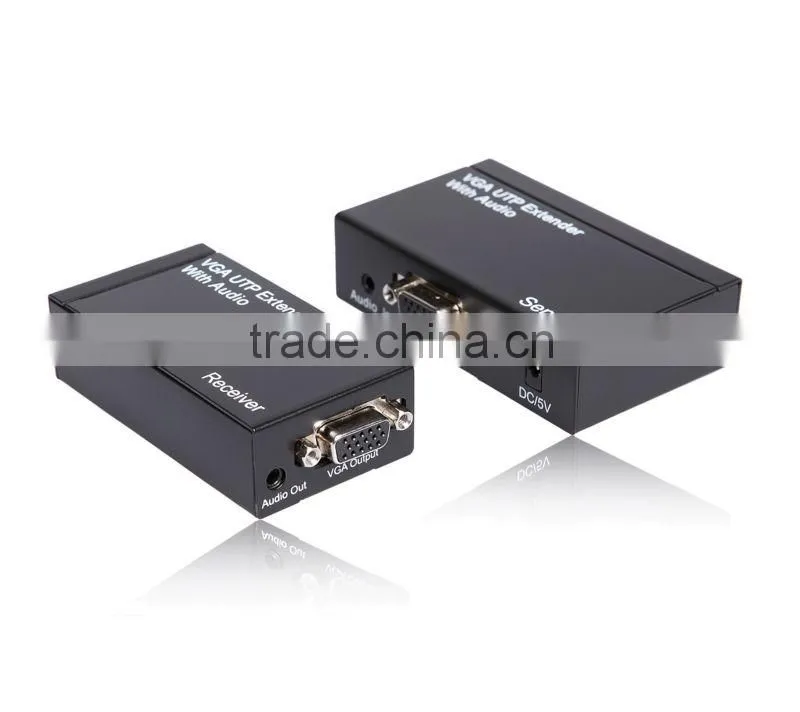

This VGA UTP Extender 1X1 Splitter with Audio is an ideal device for local displaying and remote viewing. It combines split function and extension function. It distributes the input of the VGA signal and audio signal into the local and remote outputs simultaneously.
Receiver by Cat5 x1 works with the Sender as a full functional module by receiving the distributed signal from the sender and transmitting to display. Only by the most inexpensive UTP cable with cross stand nside, the full functional module extend the VGA display max up to 300 meters.
Features
lExtend VGA video and stereo audio signal max up to 300m over one UTP cable with cross stand inside

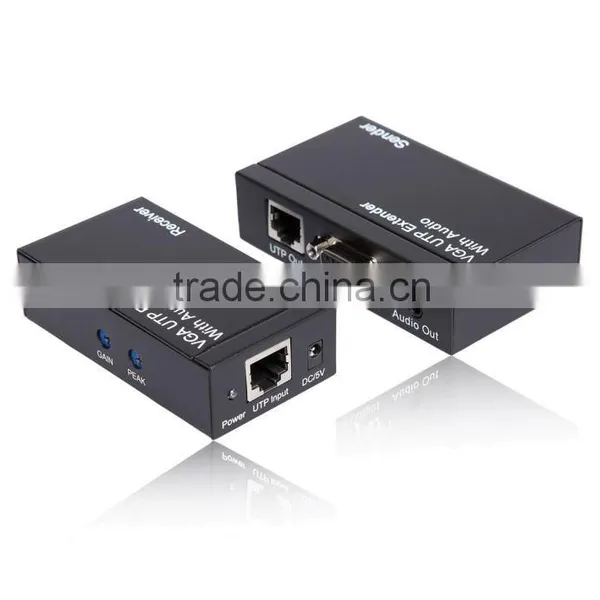

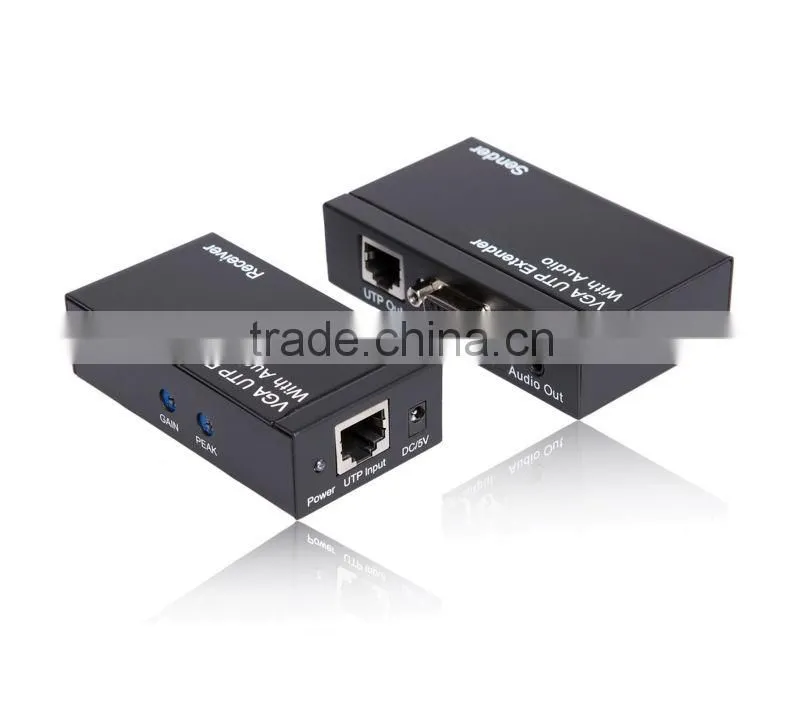

lAdjusting GAIN and PEAK to adapt for the different length of UTP cable.
GAIN: Brightness adjustment.
PEAK: Skew adjustment.
lSupports resolution max up to 1920x1200.
lDual output at local unit: 1 x VGA output for local site, plus 1 x UTP output for remote site.
lWork with monitors projectors, HDTV, and flat panels.
Parameters
Input connector |
VGA(Female 15pin), Stereo Audio |
Output connector |
VGA(Female 15pin), Stereo Audio,1xRJ45 |
Vertical Frequency Range |
60/75/85Hz |
|
Resolutions(PC) 640X480 800X600 1024X768 1280X720 1280X768 1280X960 1280X1024 1600X900 1600X1200 1920X1080 1920X1200 | |
Size of VGA UTP Extender 1X1 Splitter |
100×65×25.5mm |
Weight of VGA UTP Extender 1X1 Splitter |
208g |
Size of Receiver (L-W-H) |
81.5×43×23MM |
Weight of Receiver (Net) |
108g |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply for VGA UTP Extender 1X1 Splitter |
5V@2A, max 5W |
Power Supply for Receiver |
5V@2A, max 5W |
Converter Unit |
FCC,CE,UL |
Power Supply |
UL,CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version |
Package Contents
Before attempting to use this unit, please check the packaging and make sure the following items are contained in the shipping carton:
1) VGA UTP Extender 1X1 Splitter
2) One Receiver
3) Two pieces of 5V@2A DC Power Supply
4) User’s Manual.
Package : Neutral gift box, or custom design
