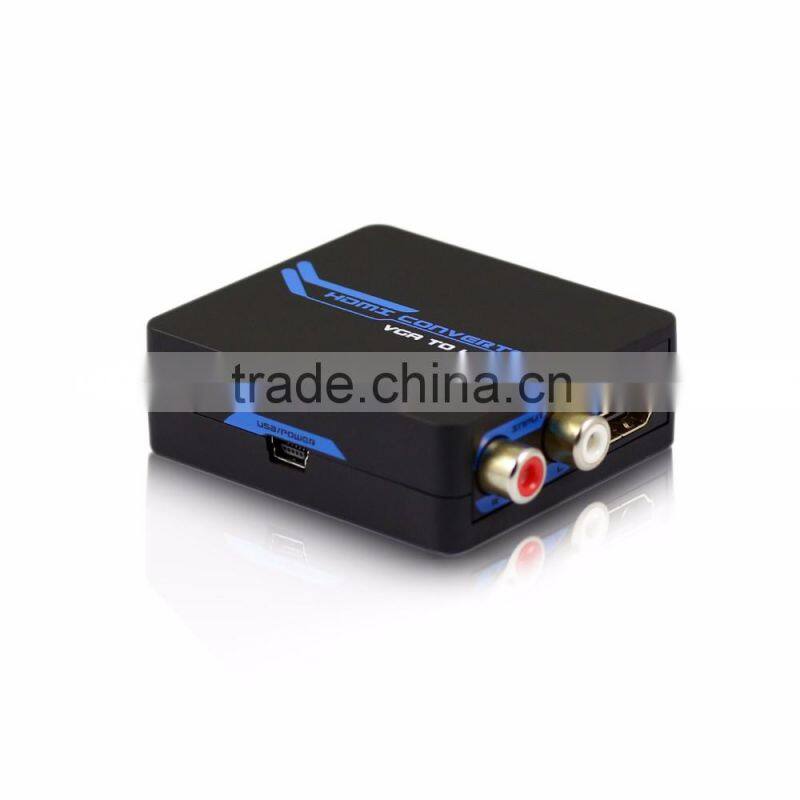

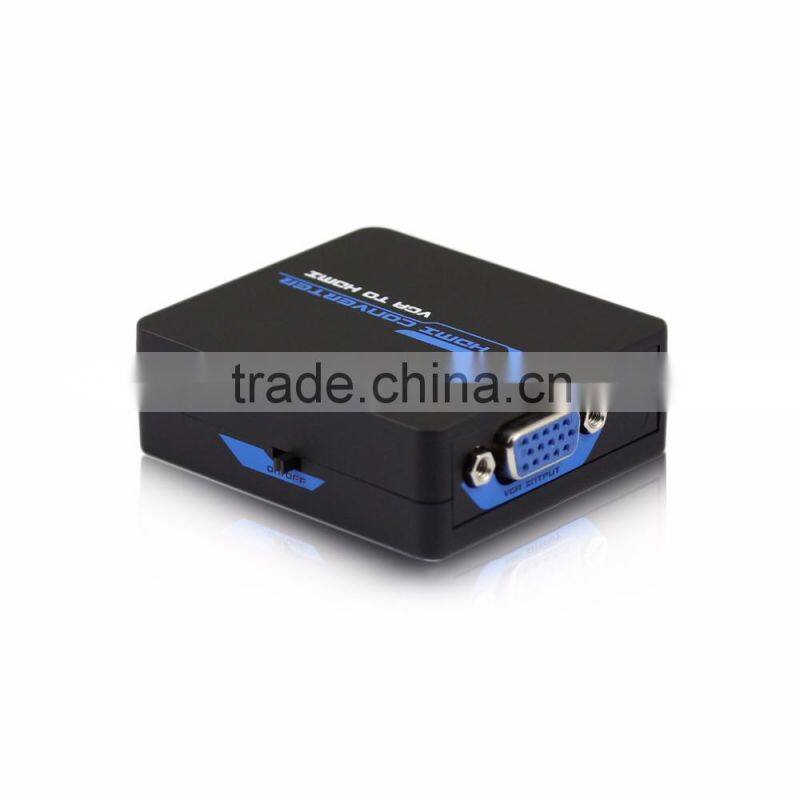

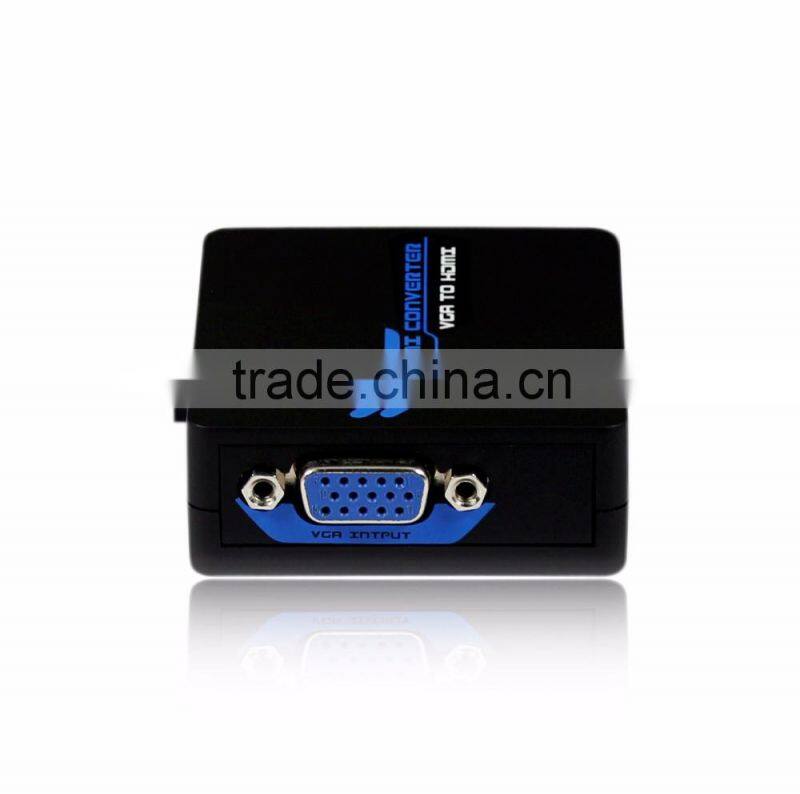

Help CenterMini VGA Converter VGA and R/L to HDMI 1080P Chinese Manuafacturer
Related Products
-
Hot Sell VGA and 3.5mm Stereo Audio to Hdmi Converter 720P/1080PUS$ 1 - 8.1MOQ: 50 Pieces -
China Wholesale VGA and Stereo to Hdmi Converter 720P/1080PUS$ 1 - 9.99MOQ: 50 Pieces
-
VGA and Component SPDIF/RL to HDMI With IRUS$ 17.7 - 21.87MOQ: 50 Pieces
-
New Premium CVBS/S-VIDEO to VGA Mini Converter Upscaler 1080p for Home TheaterUS$ 9.9 - 19.9MOQ: 100 Pieces
-
VGA and Component RGB YPbPr + SPDIF/RL to HDMI Converter Scaler(720P/1080P)US$ 1 - 13MOQ: 50 Pieces
VGA+R/L TO HDMI Mini Converter
This kind of the Converter is a VGA video converter. It converts VGA input into HDMI to allow
PC users to show their image not only on the PC monitor, but could also on T V, to have a large
display. The conversion is along with the audio.
* VGA to HDMI Converter box converts PC VGA and audio to HDMI, allowing connection
Of PC to 1080p HDT V
* Input: VGA & Stereo Audio R/L
* Output: HDMI,
* HDCP compliant;
* PC VGA Resolution:
1920 X1080@ 60Hz, 1360 X 768 @ 60Hz, 1280 X 1024@ 60Hz,
1024 X 768@ 60Hz, 1280 X 720 @ 60Hz, 1280 X 768@ 60Hz,
S00 X 600@ 60Hz, 640 X 480 @ 60Hz, 720 X 400 @ 85Hz
* HDMI Transmission Rate: 5Gbps
* Support 165MHz/1.65Gbpsper channel (4.95Gbps all channel) bandwidth
* Support 8bit per channel (24bit all channel) deep color
* Support uncompressed 2 channel audio such as LPCM
Signal Input |
VGA Signal |
Input Video Signal |
0.5-1.0 volts p-p |
Output Video |
HDMI signal |
DTV/HDTV |
480i/576i/480p/576p/720p/1080i/1080p |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and labor |
Operating Temperature |
0℃ to 70℃ |
Operating Humidity |
10% to 85% RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
USB Power cable |
Power consumption(MAX) |
5W |
Converter Unit Cert |
FCC.CE |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
Note:
1. The converter doesn’t support audio decoding. Please assure the output audio format of the input device is set to LPCM in case there’s no sound output for the converter.
2. Specification is subject to change without notice.
PACKAGE CONTENTS
l ) Main Unit VGA To HDMI Converter
2) USB Power cable
3) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
