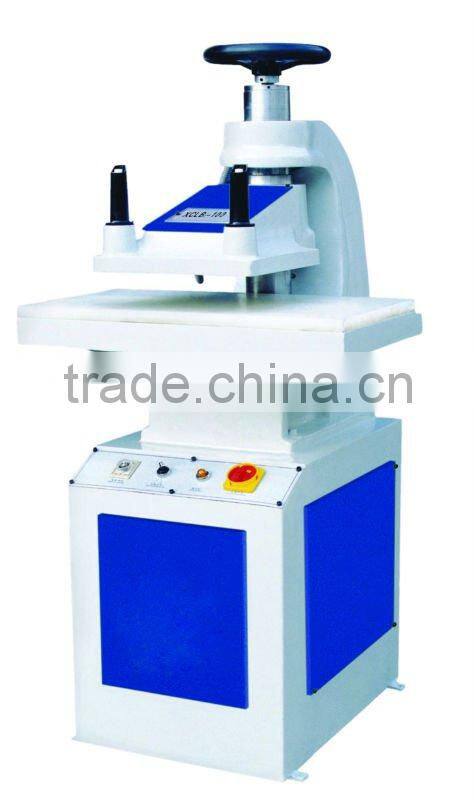

Machine for Plastic Bag Punches,press Machine

Machine for Plastic Bag Punches,press Machine thumbnail-1
Machine for Plastic Bag Punches,press Machine photo-1
US$ 1,900 - 2,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Driven Type:
Hydraulic
Contact Supplier Request Quote Chat Now
Jiangyin City Honghua Machinery And Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Automatic Grade Automatic
Driven Type Hydraulic
Power 0.75kw
Place of Origin Jiangsu, China
Brand Name HONGHUA
Model Number JCK-100
Weight 480kg
Dimension(L*W*H) 900x 600x1230mm
Certification ISO9001
After-sales Service Provided Engineers available to service machinery overseas

Specifications

This machine is used for punching plastic bags,any different specification bags can be processed after change the knife mould.



  • different shape bags can processed by changing the different knife size
  • both hands operation switch to ensure the safety



This machine is used for punching plastic bags, any different specification bags can be processed after change the knife mould.

  1. The arm swing and circumgyrate freely and operate easy;
  2. The main pillar is made from high quality non-sew steel tube , with upper and down poles supporting ,to make sure running agility and high reliability of the upper beat broad;
  3. It adopts both hands operation switch , to make sure the operator’s security;
  4. The position of waving arm is adjusted by the hand wheel in the high position of machine , and the punching length is adjusted by calculagraph, so one can easily knows the best cutting position, improve work efficiency, extend use life of knife mould and tray board;
  5. Making use of flywheel’s inertia to save energy, economizing energy sources.





Main technical parameter

Max momentum

 100KN

size of the working table

 650X330mm

range travel adjustment

 5-75mm

power

0.75kw

Weight of machine

 480kg

Overall dimensions

 900x 600x1230mm
