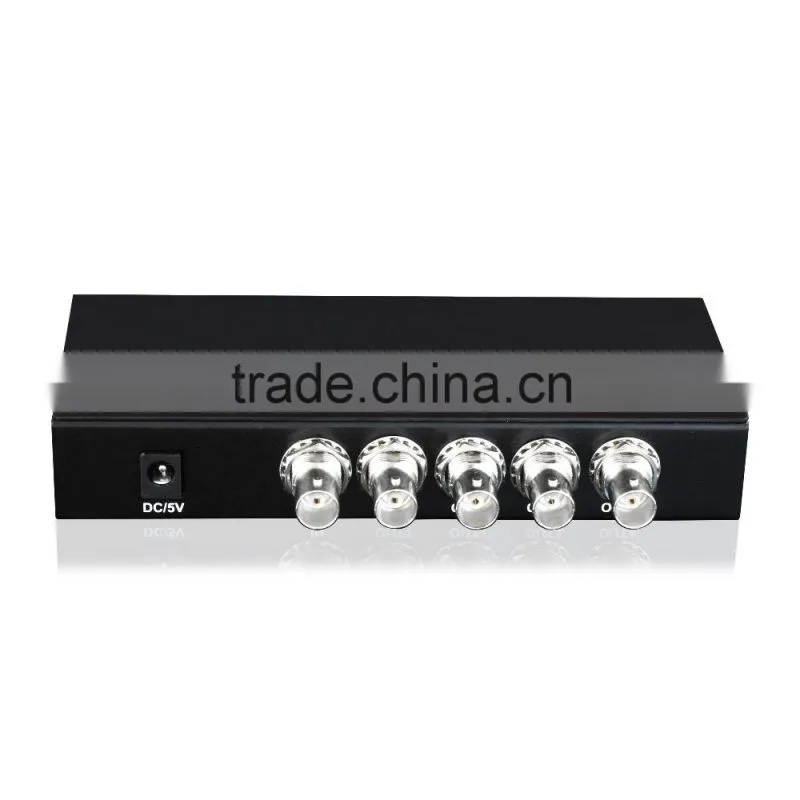

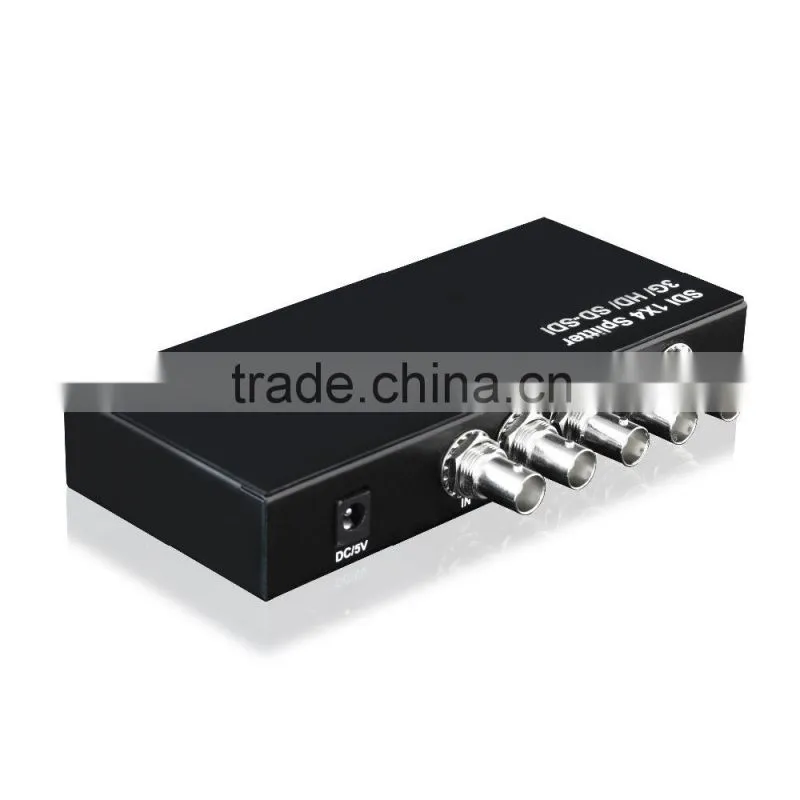

SDI Splitter 1x4 Support 3G/HD/SD-SDI ,1080P
1.0 Introduction
This 1x4 SDI splitter distributes one SDI signal to 2 simultaneous SDI outputs. It supports full range of SDI
signal formats including 3G SDI, HDSDI, SDSDI with easy operation and high reliability. Using broadcast quality
processing technology, it delivers high definition, lossless and lag free distribution.
This splitter can be widely used in SDI broadcast room, no linear editing field, CCTV security system and
training showroom etc.
2.0 Features
* Features equalizer circuit on the input and outputs, allowing it to support long cable runs
* Support multiple video resolution:
• SD 525i and 625i
• HD 720p@24, 25, 30,50 and 60 Hz
• HD 1080i@50, 60 Hz
• HD 1080p@24, 25, 30, 50 and 60 Hz
* Support multiple color space:
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
* Support wide range of data rates:270Mbps~2.97Gbps.
* Support multiple deep color:8bit.10bit.12bit.
3.0 Specifications
Input Connector |
1x SDI BNC Male |
Output Connector |
4x SDI BNC Male |
Supported Cable Length (using RG59 cable) |
3G(1080p 60Hz) Mode:Front 60M followed 30M OR Front 20M followed 50M |
HD(720P 60HZ)Mode:Front 100M followed 100M | |
Limited Warranty |
1Year Parts and Labor |
Operating Temperature |
0C to 70C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10C to +80C |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption(MAX) |
5W |
Splitter Unit Cert |
FCC.CE |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
4.0 Package & Shipping Contents
1) Main unit
2) DC 5V power supply
3) User Manual
5.0 Company Imformation
About us :
As a specialized independent supplier of HDMI products, Protech Electronics & Technology Limited focuses on high quality image process technology and application design, owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection, such as HDMI cable, switcher, splitter, matrix converter and extender.
In addition, Protech provides the prime quality & reasonable price for all our customers, and supports clients with high technology product development, experienced OEM, ODM production and highly effective global logistics. "To serve customers with good quality & price of the world competition" is our winning policy.
Office & Factory Outlook:

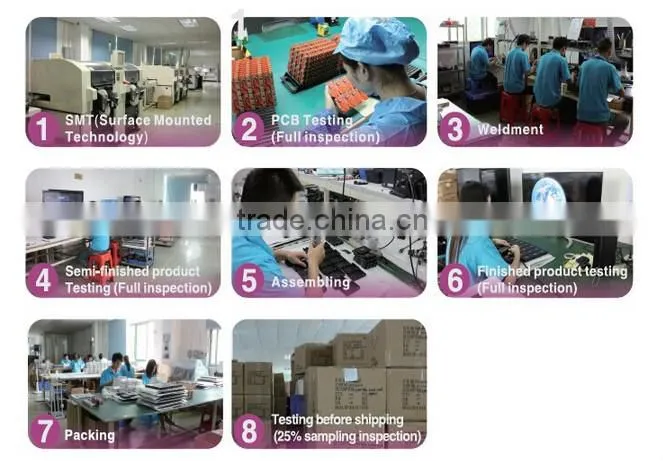

Flow of Production :

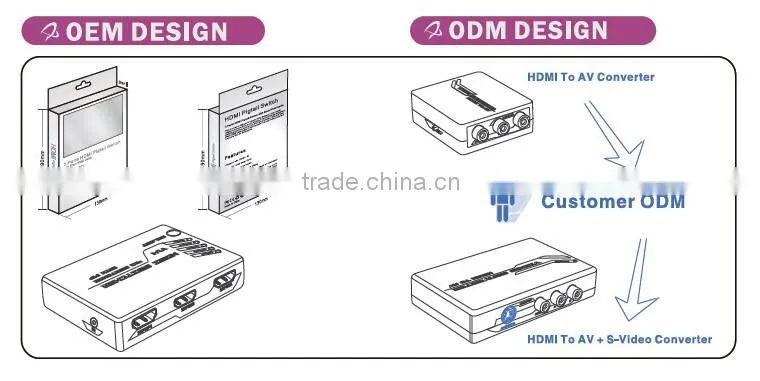

OEM & ODM:
Certification:
Exhibition:
6.0 Conatct US
