1x2 SDI splitter for CCTV Camera BNC SDI Splitter 1 input 2 output Audio Video Splitter 2 way SDI Splitter Support 1080P

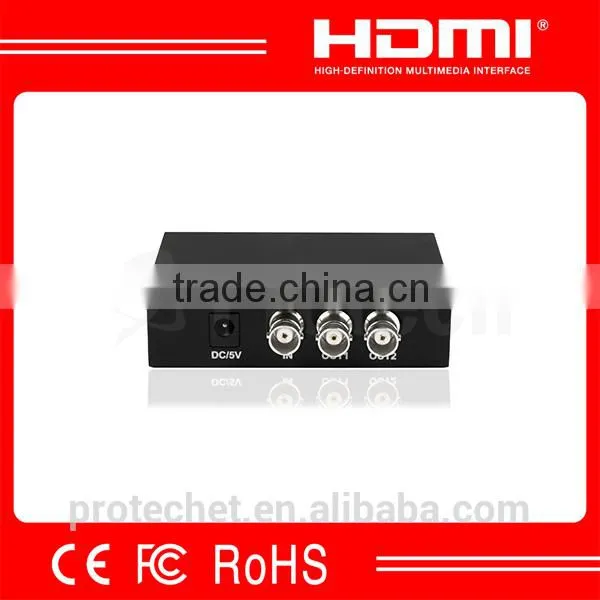

BNC SDI Splitter 1 input 2 output Audio Video Splitter 2 way SDI Splitter Support 1080P
1.0 Introduction
This 1x2 SDI splitter distributes one SDI signal to 2 simultaneous SDI outputs. It supports full range of SDI
signal formats including 3G SDI, HDSDI, SDSDI with easy operation and high reliability. Using broadcast quality
processing technology, it delivers high definition, lossless and lag free distribution.

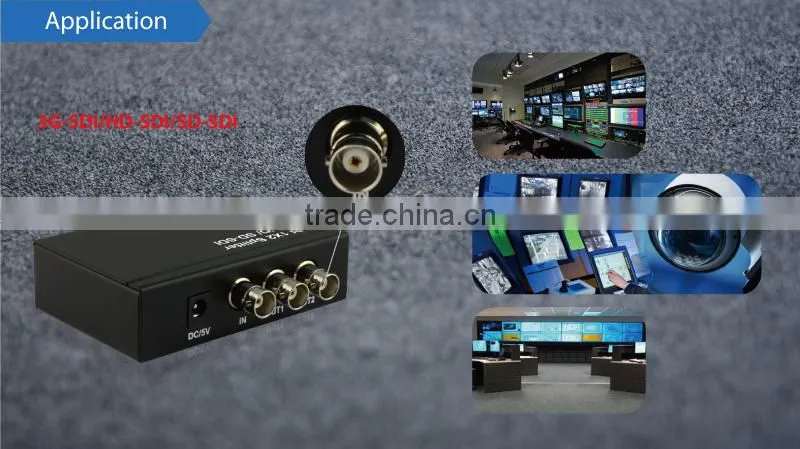

This splitter can be widely used in SDI broadcast room, no linear editing field, CCTV security system and
training showroom etc.
2.0 Features
* Features equalizer circuit on the input and outputs, allowing it to support long cable runs
* Support multiple video resolution:
• SD 525i and 625i
• HD 720p@24, 25, 30,50 and 60 Hz
• HD 1080i@50, 60 Hz
• HD 1080p@24, 25, 30, 50 and 60 Hz
* Support multiple color space:
• RGB or YCbCr 4:4:4 sampled
• YCbCr 4:2:2 or 4:2:0 sampled
* Support wide range of data rates:270Mbps~2.97Gbps.
* Support multiple deep color:8bit.10bit.12bit.
3.0 Specifications
Input Connector |
1x SDI BNC Male |
Output Connector |
2x SDI BNC Male |
Supported Cable Length (using RG59 cable) |
3G(1080p 60Hz) Mode:Front 60M followed 30M OR Front 20M followed 50M |
HD(720P 60HZ)Mode:Front 100M followed 100M | |
Limited Warranty |
1Year Parts and Labor |
Operating Temperature |
0C to 70C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10C to +80C |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption(MAX) |
5W |
Splitter Unit Cert |
FCC.CE |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
4.0 Package Contents
1) Main unit
2) Power adapter 5V@2A
3) User Manual
Packages available
1. Neutral gift box or custom design beautiful in appearance
2. Bubble pack reduce cost to least
As a specialized independent supplier of HDMI products, Protech Electronics &Technology Limited focuses on high quality image process technology and application design,owns perfect production lines and innovates on technical route continually to provide the best solutions for home media, especially for HD source connection,experienced OEM.
Protech always persists with high quality; it is operated strictly according to the standard operating procedures and rules. With the rich and applicable laboratory equipments, high quality makes every client satisfactory.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
Protech has consistently advocated high quality with reasonale price, it relies on mass production to reduce costs, thereby it creates so much value.
We welcome all friends and merchants to establish cooperative relationships with us. Please contact us for more information on our company and products.
* About US
* Company milestones
* Marketing
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Q1. Is your company a trading company or a factory company?
Answer:Our company is a factory company, located at NO.6 Baofu Road, Shangmugu Baolai Industrial Park,Ping Hu Town, Long Gang District,ShenZhen, Guangdong, China. You are warmly welcome to visit our company!
Q2. What 's the advantage of your company?
Answer: Our company is a manufacturer and HDMI adopter, so we can handle hdmi products legaly and offer products with high quality at factory price. Our products get releated certificate such as CE, FCC, RoSH, REACH,etc and all of them have to be strictly inspected before any production process.
Q3: What kind of payments and shipments can you offer?
Answer: We accept paypal, bank transfer, moneygram, wester union,etc; DHL, UPS,EMS,FEDEX,TNT, by air, by sea are all acceptable.
Q4: What kind of warranty can you offer?
Answer: Our excellent after-sales team will do our best to serve you. We offer one one year warranty for our products without man-made damages.
