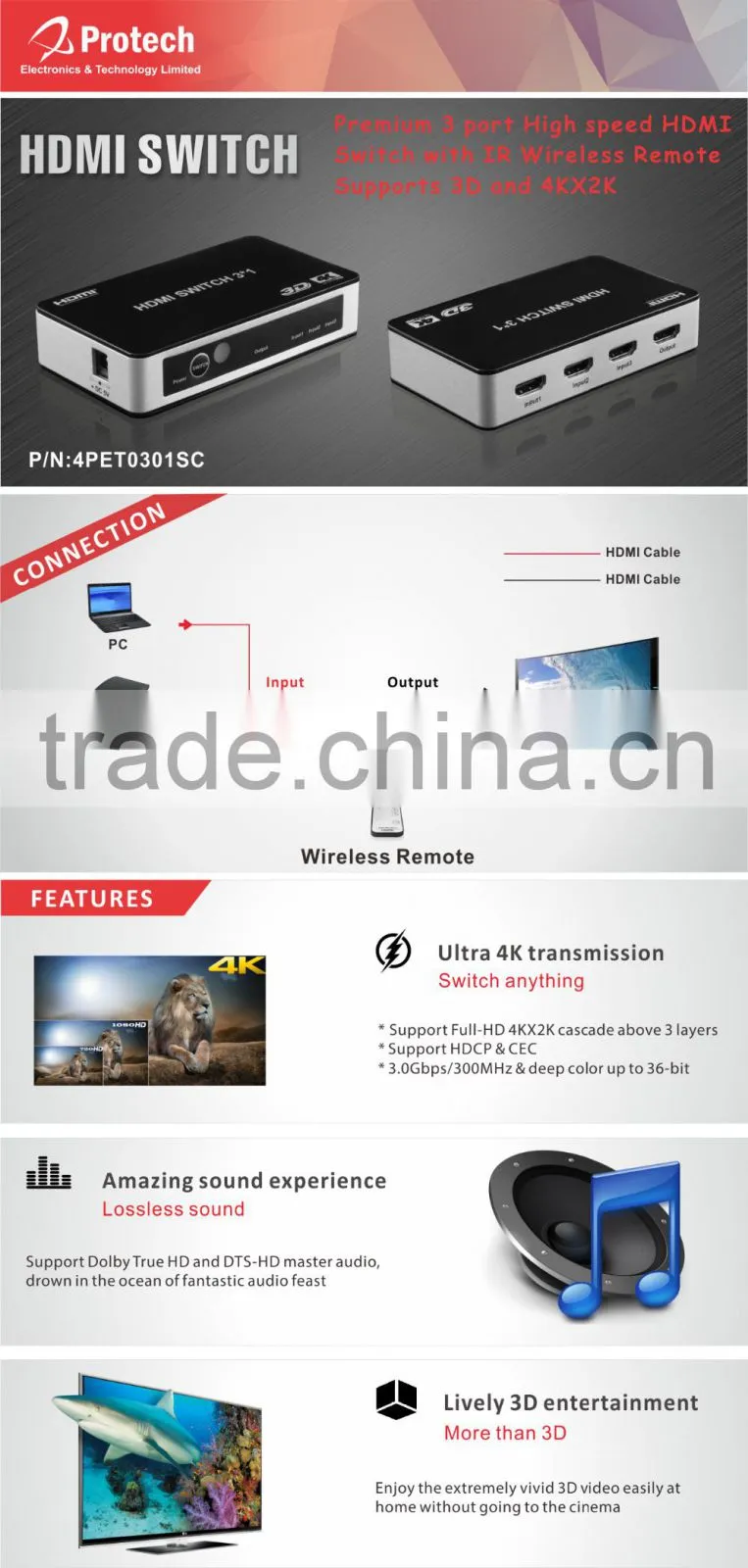

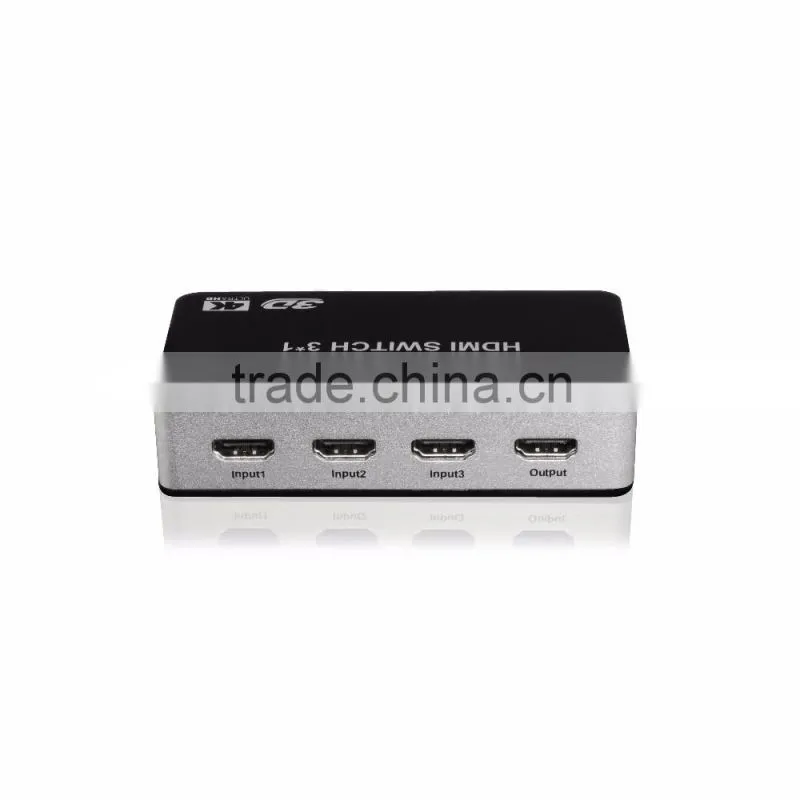

Ultra HD 1080PV1.3 Full HD 1080P supported High Speed HDMI switcher 3 input 1 OUTPUT
1.0 Introduction
I. Smart Function Introduction
* Sense the input source ports automatically, and bypass the port without signal loss.
* Switch to the last plugged input source port automatically when hot plug.
* Remember the active input source port while pressing “MEMORY” on the remote control, and select this input source port automatically when restart.
II.Remote Control Introduction
* Pressing the number to select the input source accordingly.
* Pressing “”or “”to select the previous or next input source.
* Pressing “MEMORY” to get the switch rememberthe active input source, and select this input source port automatically whenrestart.
III.LED Indication
* Red LED indicates “Signal Not Selected”.
* Blue LED indicates “Active Signal Path”.
* No LED indicates “No Input Signal”.
2.0 Feature
* HDMI Stylish switches with remote control
* Support bit rates up to 3.0Gbpsper channel
* Support deep color up to 36-bit
* Support HDMI 3D video
* Support Dolby True HD and DTS-HD master audio
* Support Full-HD 4KX2K cascade above 3 layers
* Automatic switching (smart function), IR controlled switching or manual switching
* Support HDCP repeater
* Support CEC
* Compliant with HDMI 1.4b
3.0 Specification
Input DDC Signal |
5 volts p-p (TTL) |
Input TMDS Signal |
0.5-1.0 volts p-p |
Maximum Single Link Range |
4KX2K/30Hz |
Product Size |
117mm x 64mm x 25mm |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
3.0Gbps/300MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4KX2K/30Hz |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 ℃ to +85℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Extend Power Supply |
5V DC |
Power Consumption (Max) |
5W |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
4.0 Package Content
1) Main unit
2) Remote control
3) User Manual
4) 5V DC Power supply
Ultra HD 1080PV1.3 Full HD 1080P supported High Speed HDMI switcher 3 input 1 OUTPUT
1) We are member of HDMI Association(can be found on HDMI official website ), you won't have any import problem when work with us.
2) We are specialize in HDMI Accessory for more than 7 years, have professional R&D department, and QC department.
3) With possession of complete SMT machines, we can better control goods quality and lead time.
4) 7 years exporting experience, we can do perfect OEM order.
SMT (Surface Mounted Technology) Machines for pasting PCBA
Protech Electronics &Technology Limited, branded as Protech, founded in 2008, located at No.6 Baofu road, Baolai Industry Park, Pinghu Town, Longgang District, Shenzhen, is a market leading manufacturer of HDMI products. Over the years, Protech has gained experience and knowledge in electronic business, market development and the HDMI industry. We have always found pride in our solid quality control, exceptional products, immediate availability and continual product development, a keen sense of what distributors and their customers need to build and grow.
Protech always persists with high quality, it is operated strictly according to the standard operating procedures and rules with the rich and applicable laboratory equipment, high quality so that to makes every client satisfactory. You can find that we have a comprehensive inspection system on the products upon visiting our factory: full inspection on raw material, full inspection on PCB, full inspection on semi-finished products, full inspection on finished products, full inspection and random inspection before packing, random inspection before shipment. This is how we assure the quality of our goods.
Protech is committed to the green products and has the comprehensive RoHS,CE,FCC system. We are also one of the HDMI Adopter manufacturers .
* Office and Factory Outlook
* Production Process
* OEM & ODM
* Certificates
* Exhibition We Attend
Supports resolution up to 4Kx2K
Q1: Are you a manufacturer or trading company?
A1: yes, we are manufacturer. We located in Shenzhen, China. And the FOB Shenzhen port is Yantian/Shekou.
Q2: Can I customized my product in your factory?
A2: Sure, we offer OEM and ODM service.
Q3: Do your product comes with a warranty?
A3: yes, 1 year parts and labor.
Q4: Can you give me a discount?
A4: Yes, the discount comes with different quantity. If the order quantity exceed 50pcs, we will give you a discount, if exceed 100pcs, another discount, if exceed 300pcs, 500pcs, 1000pcs, 2000pcs..., the more quantity your order, the lower price you will get.
Q5: What information should I provide if i want to get a quotation?
A5:
For our product with totally our design |
Item name, order quantity, shipping term(EXW/FOB etc) |
For OEM items |
Item description, detailed spec, color, package content, order quantity, shipping terms, photo |
Q6: How many days will the sample be available? And what about the mass production?
A6: sample will be sent out within 3 days after sample cost is settled and confirmed. For mass production, ready in 1-3 days with stock, 1-3 weeks for those without stock.
Q7: what is your inspection procedure?
A7: 1st inspection: when the raw material is sourced, we will have a 100% inspection.
2nd inspection: during production, we will inspect goods randomly
3rd inspection: after production is finished. Our QC department will choose 10-50% completed goods for inspection. The inspection percent depends on the order quantity!
Q8: how do you ship the goods?
A8: by sea, by air, by courier(DHL/UPS/FedEx/TNT etc)
