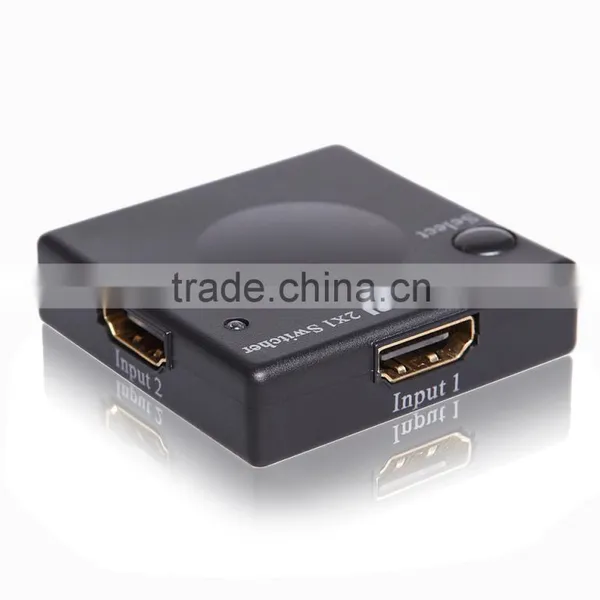

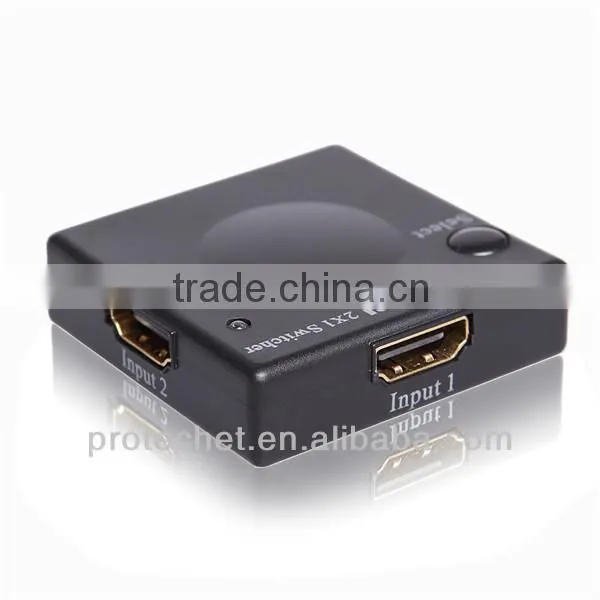

2 ports Mini HDMI Switch 2x1 support 3D 1080p hdmi switcher
introdction
This HDMI mini amplifier switcher not only has the keypressswitching function, but also has the intelligent function.
It routes high definition video (in multiple resolutions up to1080p) and digital audio from any one of the several sources
to display units.
All inputs accommodate the connections of the high definition video sources simultaneously, compatible well for H-DVD,SKY-STB, PS3, Xbox360 etc.
Intelligent function
1) Once the source device is turned on or plugged in (should stay power-on mode), the switcher
will automatically select this source.
2)Once the source device is turned off or plugged out, the switcher will automatically select the
next power-on source depending on the sequence automatically(input1>input2)
Note:
1) When the source devices are on the stand-by mode, its power supply should be turned off,
otherwise this switcher can not meet intelligent function.
2) When plugged in or out, this switcher is completely intelligent.
Features
* Multifunctional on switching : intelligent or mechanical
* Support HDMI1.3b
* Support highest video resolution 1080p.
* High performance up to 2.5Gbps.
* Support 12bit per channel (36bit all channel) deep color.
* HDCP pass-through.
* Support uncompressed audio such as LPCM.
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD).
* Support 3D
SPECIFICATIONS
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Output Video |
HDMI 1.3b |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.5Gbps/250MHz |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 °C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
No power needed |
Power consumption (Max) |
5W |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
Package Contents
1) Main unit.
2) User Manual
