HDMI Splitter 1x2 video resolution 1080P
Description

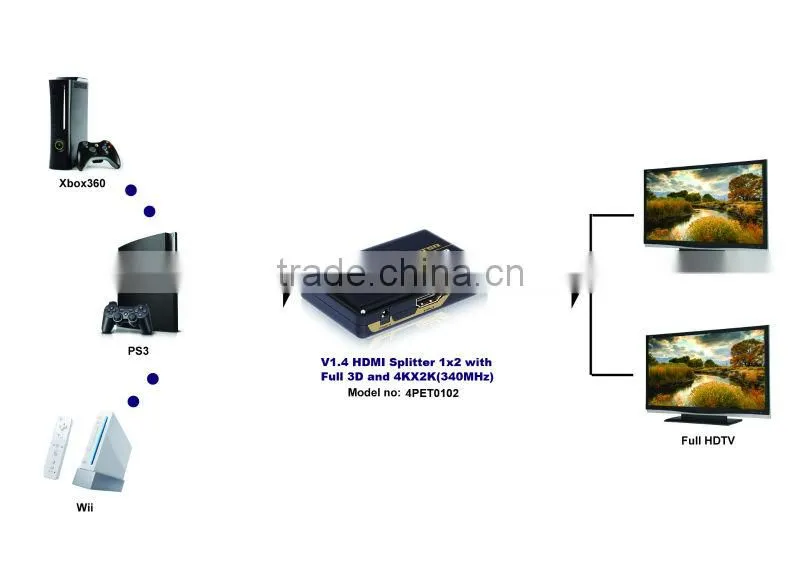

This HDMI Amplifier Splitter is an HDMI splitter with two outputs. It distributes the input of the HDMI signal into the two identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Features
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
l Easy to Use: Install in seconds, no need of setting.
l One HDMI Input, two HDMI outputs
l Supports Full 3D and 4Kx2K resolution.
l Supports highest video resolution 1080p.
l Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
l Supports 12bit per channel (36bit all channel) deep color.
l Supports HDCP 1.3
l Supports uncompressed audio such as LPCM
l Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
Specifications
Signal Inputs/Output |
|
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4kX2k |
Output Video |
HDMI1.4a with full 3D and 4Kx2K + HDCP 1.3 |
Operating Frequency |
|
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
340MHz/3.4Gbps |
Resolutions(HDTV) |
|
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Mechanical |
|
Size(L-W-H) |
63×54×18mm |
Warranty |
|
Limited Warranty |
1 Year Parts and Labor |
Environmental |
|
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Requirement |
|
External Power Supply |
5V DC@ 1A |
Power consumption (Max) |
8W |
Regulatory Approvals |
|
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
Accessories Adapter |
|
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
|
Note: Specifications are subject to change without notice.
Package Contents
1) Main unit
2) 5V DC Power Supply.
3) User’s Manual.
Photos
Packing
Our main products
HDMI Switcher /HDMI Splitter/ HDMI Matrix/HDMI Extender / Repeater HDMI Converter /Audo Converter /HDMI Extender
Our Factory
Shipping
