New premium hdmi splitter 1x2 hdmi splitter 1 in 2 out for hdmi video capture card
1.0 Introduction
This 2-Port HDMITM Amplifier Splitter lets you share a single HDMITM source signal between two HDMITM enabled displays simultaneously. Supporting True HD 1080p video resolutions, the HDMITM splitter acts as a distribution amplifier that enables you to situate your HDMITM -capable displays up to 50ft (15m) away from the splitter. The HDMITM splitter is easy to install and use with no software or configuration required, for a completely plug-and-play setup that can be used with HDMITM output devices such as Blu-ray players or desktop/laptop computers.
2.0 Feature
* Support cascade function for large distribution purpose.
* Support HDMI (with 3D) and HDCP pass-through
* Support highest video resolution 1080p
* Support 2.25Gbps per channel (6.75Gbps all channels) bandwidth
* Support Consumer Electronics Control function
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS, Dolby Digital (including DTS-HD Master AudioTM and Dolby TrueHD).
Note: Dolby is a trademark of Dolby Laboratories.
3.0 Specification
Input Video Signal |
0.5-1.0 volts p-p |
Output Video |
HDMI Signal |
DTV/HDTV |
480i/480p/576i/576p/720p/1080i/1080p |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Vertical Frequency Range |
50/60Hz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to 70℃ |
Storage Humidity |
5% to 90% RH (no condensation) |
Power Supply |
5V DC |
Power Consumption(Max) |
5W |
Splitter Unit Cert |
FCC,CE, RoHS |
Power Supply Cert |
CE,FCC, RoHS |
Power Adapter |
US,UK,EU,AUS Standard etc |
User Manual |
English Version |
Note:
1) Specification is subject to change without notice.
4.0 Package Content
1) Main Unit
2) Power Adapter
3) User Manual

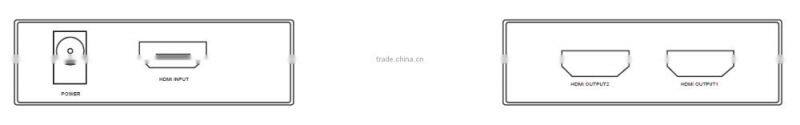

5.0 Panel Description
6.0 Connection and Operation
1) Connect the HDMI input source and output devices into the HDMI Splitter.
2) Insert the DC side of 5V power supply into the splitter and then connect the AC side of the power supply into the wall outlet.
3) Turn on the power.
Attention: Insert / Extract cable gently.

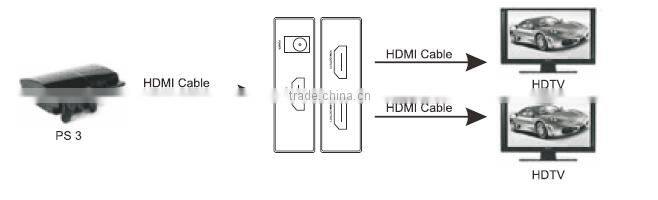

6.1 Connection Diagram
