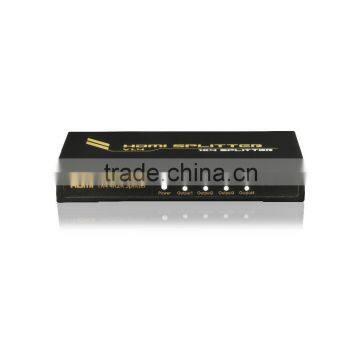

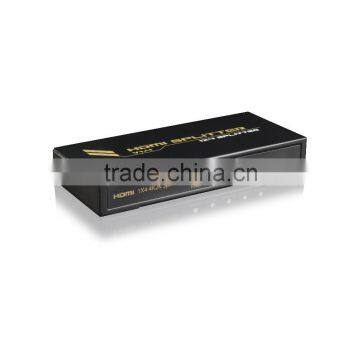

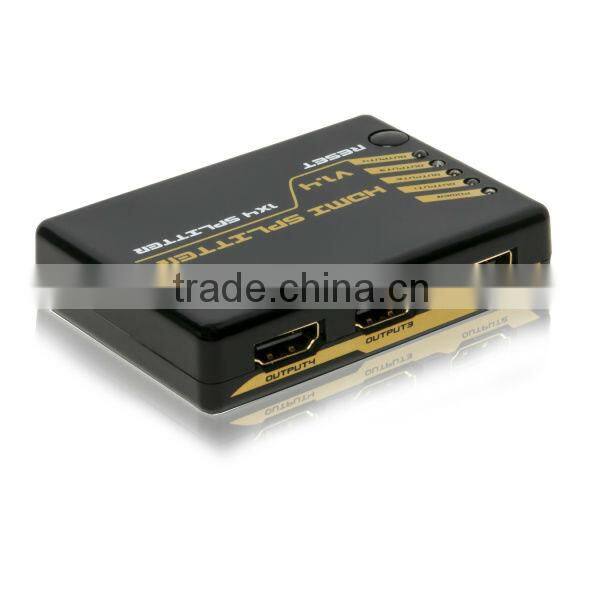

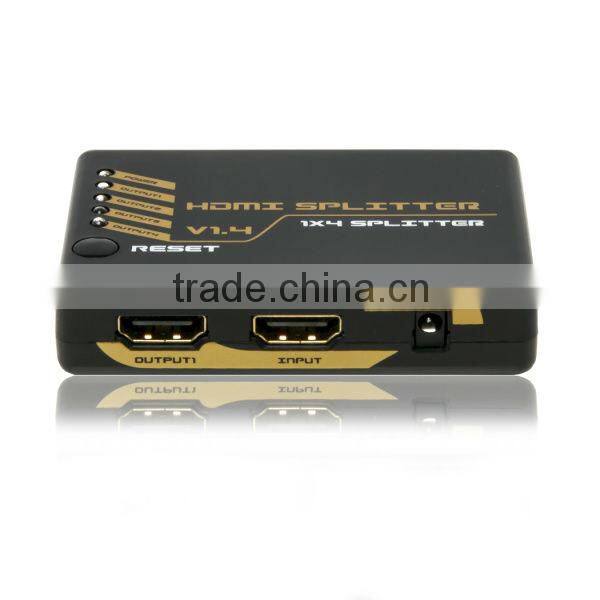

HDMI Splitter 1X4 4 Port Plastic Case Support Full 3D and 4Kx2K
US$ 9 - 11.01
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Protech
Model Number:
4PET0104
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Hdmi Splitter V1.4 1 in 2 Out Support 3DUS$ 10 - 12MOQ: 100 Pieces -
Electric Generator V1.4 High Speed HDMI Splitter 1x8 8 Ports Hdmi Splitter With 4kx2k for Home TheaterUS$ 35 - 59MOQ: 100 Pieces
-
Hot Video Player V1.4 High Speed HDMI Splitter 1x8 8 Ports Hdmi Splitter 1 in 8 Out With 4kx2k Made in ChinaUS$ 35 - 59MOQ: 100 Pieces
-
China Supplier 1 Input 8 Output Hdmi Switch Splitter Hdmi Splitter 1x8 HDMI Splitter Support 1080p HDCP Pass ThroughUS$ 19 - 25MOQ: 100 Pieces
-
Wholesale HDMI 1x16 Splitter Support 1080p HDCP Pass Through 16-port Hdmi Splitter for Home TheaterUS$ 45 - 55MOQ: 100 Pieces
Brand Name
Protech
Model Number
4PET0104
Place of Origin
Guangdong, China
support full 3D and 4Kx2K HDMI Splitter 1x4 1in 4 out Splitter
INTRODUCTION
This HDMI Amplifier Splitter is an HDMI splitter with four outputs. It distributes the input of the HDMI signal into the four identical outputs simultaneously. It supports full 3D format and 4Kx2K. Its video amplifier bandwidth can be up to 3.4 Gpbs/340MHz.
This HDMI Amplifier Splitter offers solutions for HDTV retail and show site, HDTV, STB, DVD and Projector factory, noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
FEATURES
This HDMI Splitter has many features that enable it to perform in a superior manner. Among those features you will find:
* Easy to Use: Install in seconds, no need of setting.
* One HDMI Input, four HDMI outputs
* Supports Full 3D and 4Kx2K resolution.
* Supports highest video resolution 1080p.
* Supports 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM
* Supports compressed audio such as DTS Digital, Dolby Digital
SPECIFICATIONS
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
4kX2k |
| Output Video | HDMI1.4a with full 3D and 4Kx2K |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
340MHz/3.4Gbps |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p,4Kx2K |
Size(L-W-H) |
63x54x18mm |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
5V DC@ 1A |
Power consumption (Max) |
8W |
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
1) Main unit
2) 5V DC Power Supply
3) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
