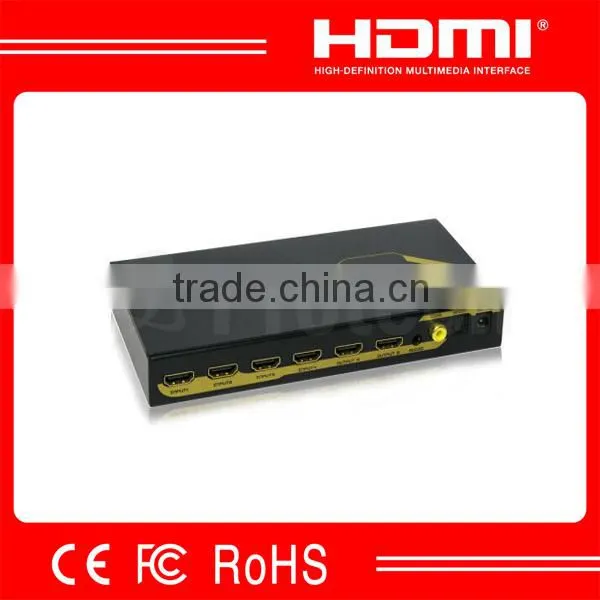

2 input 4 output hdmi switch splitter neutral packanging supported with 5.1ch audio
Specification:
| Product Name | 2 input 4 output hdmi switch splitter |
| Model NO. |
PET0402A |
| Input Signal | HDMI Signal |
| Output Video | HDMI / AUDIO / COAX / SPDIF Signal |
| Vertical Frequency Range | 50/60Hz |
| Video Amplifier Bandwidth | 2.5Gbps/250MHz |
| Interlaced(50&60Hz) | 480i,576i,1080i |
| Progressive(50&60Hz) | 480p,576p,720p,1080p |
| Operating Temperature | 0°C to +70°C |
| Operating Humidity | 10% to 85 % RH (no condensation) |
| Storage Humidity | 5% to 90 % RH (no condensation |
| External Power Supply | 5V DC@2A |
| Power consumption (Max) | 8W |
| User Manual | English Version |
Description
The 2 input 4 output hdmi switch splitter
routes high definition video in multiple resolutions up to 1080p
plus multichannel digital audio from any of the four HDMI sources to two displays. Two outputs give you the choices
of sending high definition audio and video signals up to two displays.
Any four to any two matrix switching allows for maximum versatility for integrated systems.
It eliminates the needing of disconnects and reconnects sources to a display equipped with one input.
It works with HDDVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays.
Every source is accessible at all times by any display by selecting it with an IR remote.
Diagram
Features
* Supports audio output simultaneously: Stereo, Toslink and Coaxial
* “2CH” and “5.1CH” can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial
* Supports highest video resolution 1080p and HDCP.
* Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM. * Supports compressed audio such as DTS Digital, Dolby Digital(including DTS-HD and Dolby True HD).
* Support 3D
Advantages
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0 Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content
1) Main unit.
2) 5V DC Power Supply
3) Remote Control
4) User Manual
Company Image
Production Flow
Our Service:
1)Profession sales service can provide you good choice
2)Any defects occurs within warranty can be solved by us with free charge, freight not included
3)We provide resolve methods for you
4)Good after sales service.
OEM & ODM
Certification
Exhibition
