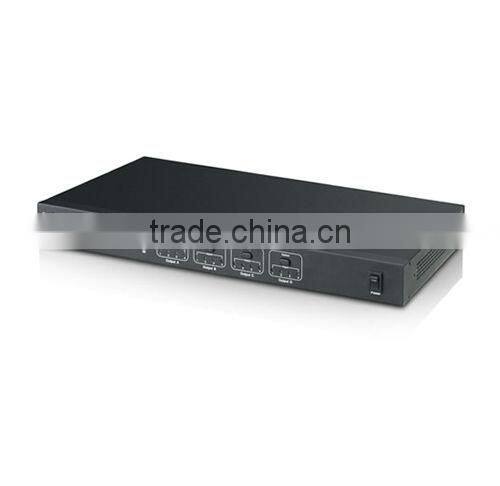

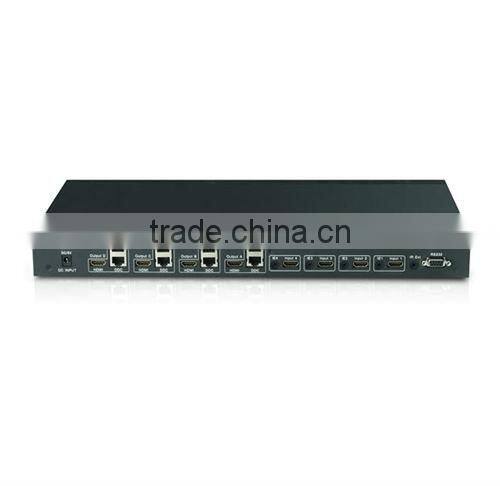

Hdmi Switch Splitter 4x4 Extender Over Hdmi Cable or Cat5e Cable PET0404E

          hdmi matrix 4 in 4 out PET0404E

Item: hdmi switch splitter 4 in 4 out , hdmi matrix 4x4 , hdmi switch 4 in 4 out , 4 in 4 out hdmi switch splitter

This 4X4 Matrix HDMI SWITCH SPLITTER by cat5e/6 offers unprecedented flexibility and convenience by routing high definition audio/video from any of four HDMI video sources to any of 4 displays over HDMI cable or 4 remote displays over inexpensive, standard CAT5e/6 cable. It eliminates the need to disconnect and reconnect sources to a display equipped with one input.

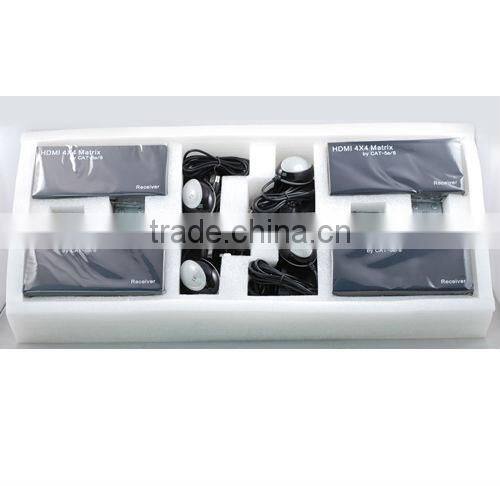

Four receivers work with the Switch Splitter as a full functional module. Full High-Resolution HDTV signals are supported up to a resolution of 1080p over HDMI cable 15m or at a maximum distance of .40M over two pieces of CAT5e/6 cable.

2.Features

This product has many features that enable it to perform in a superior manner. Among those features you will find:

* Allows any HDMI display to view any source at any time

* Allows any source to be displayed on multiple displays at the same time

* HDMI or DVI to HDMI cables are used to connect the inputs and the matrix output

* Each Output includes one HDMI output and UTP output over cat5e/6, but only one way is available at a time.

* Each UTP output is connected to a Receiver.

* UTP output extends signal up to 40m for 1080p by CAT-6 cable.

* Each Input includes an infrared Emitter, which is used to control the long-distance source device by Remote Control.

* Each displays inputs can be switched with the IR remote control or through RS232

* Support HDMI1.3b

* Support highest video resolution 1080p.

* Support 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.

* Support 12bit per channel (36bit all channel) deep color.

* Support uncompressed audio such as LPCM.

* Support compressed audio such as DTS Digital, Dolby Digital.

* Support 3D

  Package : Neutral gift box,color box or custom design.
