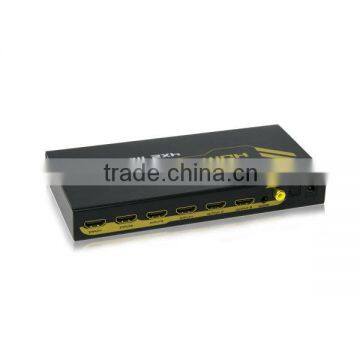

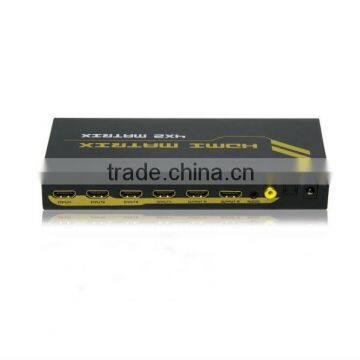

HDMI Matrix 4 in 2 Out With Audio Output(Stereo/Toslink/Coaxial) Hyundai Matrix Parts
US$ 1 - 40
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Brand Name:
Protech
Model Number:
PET0402A
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Yantian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Matrix Shampoo 4X2 Hdmi Matrix With Audio CH 1.2/CH 5.1support 4K (340MHz)US$ 1 - 40MOQ: 100 Pieces -
Hdmi Matrix 4X4 Support 4K@30Hz Hdmi High Quality Matrix Support Full 3dUS$ 97.9 - 99.9MOQ: 100 Pieces
-
V1.4 4 in 2 Out HDMI Matrix 4x2 Support 4Kx2K With 3D SupportUS$ 12 - 35MOQ: 50 Pieces
-
Metal Housing 4x4 Hdmi Matrix Support 3d 1080p Hdmi Matrix SwitcherUS$ 10 - 20MOQ: 30 Pieces
-
4x4 Hdmi Switcher Splitter Matrix Rs232 Support 3d 1080p With CE Rohs FCCUS$ 35 - 140MOQ: 10 Pieces
Brand Name
Protech
Model Number
PET0402A
Place of Origin
Guangdong, China
With Audio Output HDMI 4 to 2 Matrix
INTRODUCTION
The HDMI SWITCH SPLITTER Matrix routes high definition video in multiple resolutions up to 1080p plus multichannel digital audio from any of the four HDMI sources to two displays. Two outputs give you the choices of sending high definition audio and video signals up to two displays. At the same time, when you select Output A as the output, the audio signal will be separated and transmitted to the amplifier by Stereo, Toslink or COAX (RCA).. Any four to any two matrix switching allows for maximum versatility for integrated systems. It eliminates the needing of disconnects and reconnects sources to a display equipped with one input. It works with HD-DVD players, Blue Ray DVD, PS3, and satellite set top boxes that connect to two HDMI displays. Every source is accessible at all times by any display by selecting it with an IR remote.
FEATURES
* Supports audio output simultaneously: Stereo, Toslink and Coaxial
* 2CH and 5.1CH can be selected using Remote control for output A. 5.1CH can be sent by Toslink and Coaxial
* Supports highest video resolution 1080p.
* Supports 225MHz/2.25Gbps per channel (6.75Gbps all channel) bandwidth.
* Supports 12bit per channel (36bit all channel) deep color.
* Supports uncompressed audio such as LPCM.
* Supports compressed audio such as DTS Digital, Dolby Digital
* Support 3D
SPECIFICATIONS
Signal Inputs |
HDMI Signal |
Output Video |
HDMI / AUDIO / COAX / SPDIF Signal |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
2.25Gbps/225MHz |
Interlaced Resolutions(50&60Hz) |
480i,576i,1080i |
Progressive Resolutions(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to +70℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC@2A |
Power consumption (Max) |
8W |
Converter Unit Cert. |
FCC,CE, |
Power Supply Cert |
CE,FCC |
User Manual |
English Version |
Note: Specifications are subject to change without notice.
PACKAGE CONTENTS
1) Main unit
2) 5V DC Power Supply
3) Remote control
4) User Manual
Certificates
Certifications: CE, FCC, HDMI Adopter, REACH, RoHS
