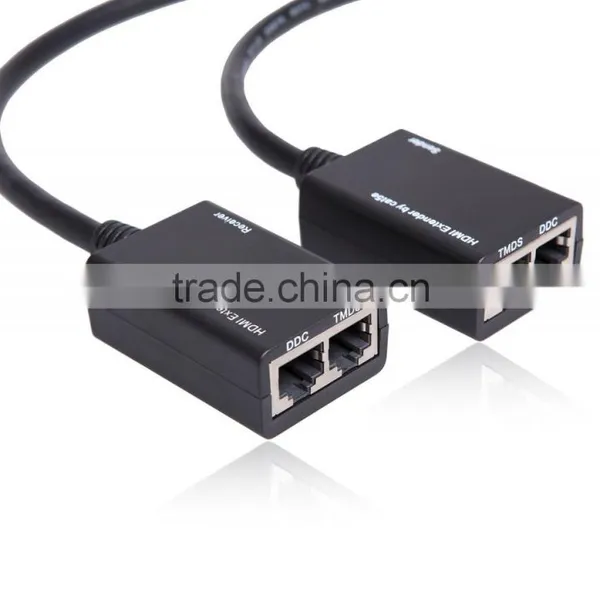

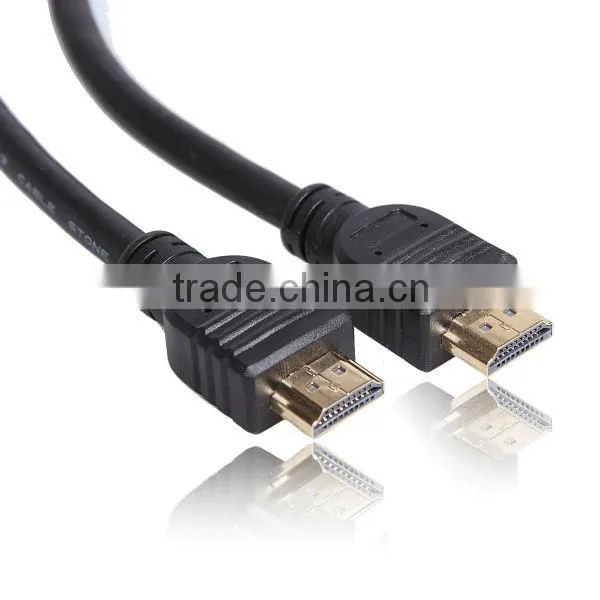

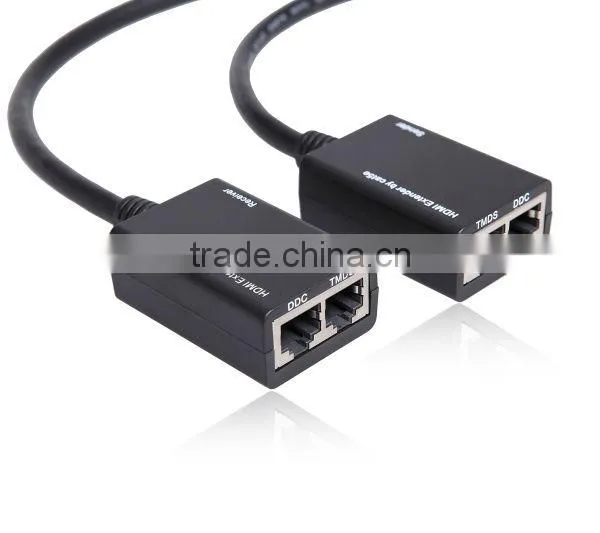

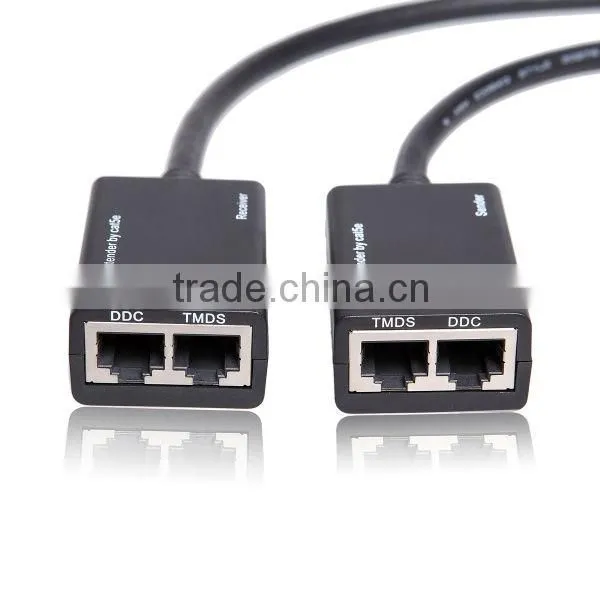

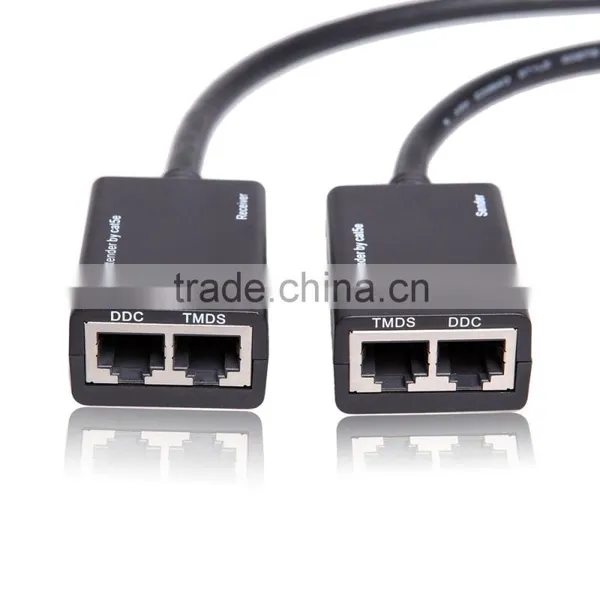

Cat 5e/6 HDMI Extender up to 30meters Mini Repeater hdmi extender with hdmi cable
Specification:
Product Name |
Cat 5e/6 HDMI Extender up to 30meters Mini Repeater hdmi extender with hdmi cable |
Model NO. |
PET30D |
Input Video Signal |
0.5 -1.0 volts p-p |
Input DDC Signal |
5 volts p-p (TTL) |
Maximum Single Link Range |
1920X1080p |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
1.65Gbps/165MHz |
CAT-6 cable |
30M for1080p |
Interlaced(50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0 to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 95 % RH (no condensation) |
External Power Supply |
No power needed |
Power consumption (Max) |
5W |
Converter Unit Cert. |
FCC,CE |
Power Supply Cert. |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
Available |
Description
1)The length of HDMI cable is fixed and unchangeable after it is produced. Because the HDMI connector can only be soldered or terminated by the professional workers in factory, the users can not reduce or increase by themselves. However CAT-5e/6 cables are available everywhere and be processed easily by the user or installer.
2) Because the header of the long HDMI cable is big, using it must in hidden method. What's more, it is not easy to bend the HDMI cable and to pull it through the in-wall tube or tray.However,CAT-5e/6 cable has no such problems.
.
Diagram
Features
* CAT-5e/6 cable can substitute HDMI cable to achieve long distance transmission.
* Follow the standard of IEEE-568B.
* Transmission distance can be up to 30 meters for 1080p using CAT-6 Cable.
* Compact size.
* Support highest video resolution 1080p.
* Support 165MHz/1.65Gbps per channel(4.95Gbps all channel) bandwidth.
* Support 8bit per channel (24bit all channel) deep color.
* HDCP pass-through.
* Support uncompressed audio such as LPCM
* Support compressed audio such as DTS Digital, Dolby Digital
(including DTS-HD and Dolby True HD)
* Support 3D
Connection and Opeartion--HDMI Extender
1) Plug the fixed HDMI cable of the sender into the HDMI input source such as:HD-DVD,PS3,STB etc.
2) Connect two CAT-5e/6 cables to both the output of the transmitter and input of the receiver.
3) Plug the fixed HDMI cable of the receiver into the HDMI display( such as : HD-LCD,HD-DLP)
Advantages
1) We are one member of HDMI Association, export to any country is legal .
2)Specialized in HDMI products manufacture more than 6 years, stronger research and development team
3) 0 Risk for clients.More overseas exhibitions (Hongkong,Americal,Brazil,Germany etc.) are convenient for testing our products
4) Most regular customers from U.S.A , Brazil, Europe countries, Russia, Australia
5) OEM, ODM service avaliable
6) Stronger aftersales (RMA) service as manufacture.
7) Certs : CE, FCC, RoHS, HDMI Power Adaptor
Package Content
1) Main unit NO. 1 Sender
2) Main unit NO. 2 Receiver
3) User Manual
