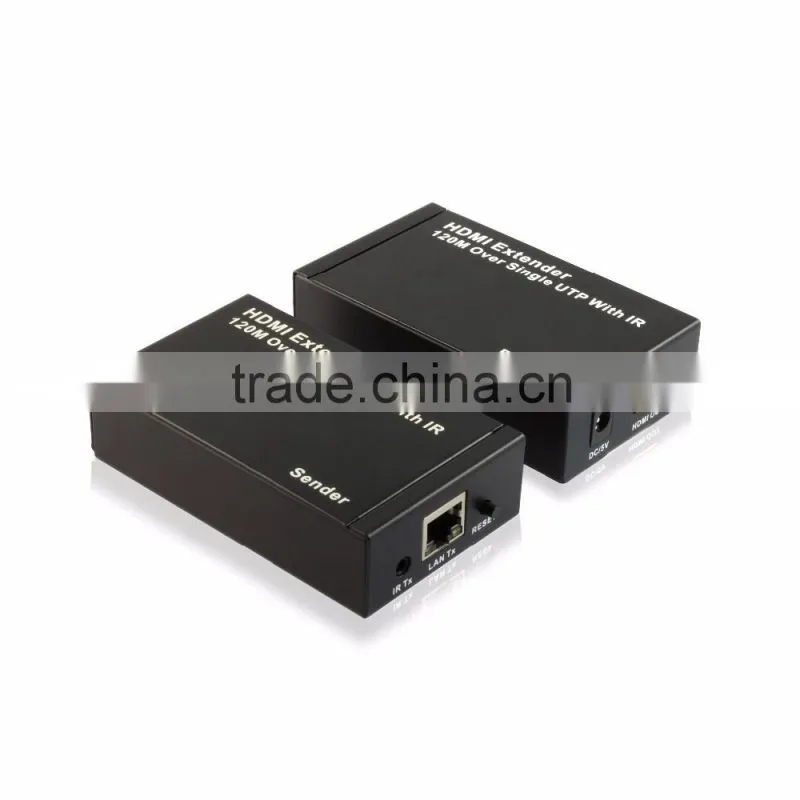

HDMI signal extender up to 120M over LAN network High Quality china market
1.0 Introduction
The HDMI video Extender lets you extend HDMI signal or DVI Signal (using HDMI-DVI adapter, not included) by up to 120m (395 ft) for full HD video and 200m(660 ft) for HD video, over single Cat6 cable. An ideal solution for sharing a display or projector over an LAN network so that even the video source lacking digital video output can still connect. It also works to extend IR signals from remote controls, perfect for controlling your video source from your video destination.
2.0 Features
* Features 3 extenstion mode: simple mode, allocation mode and infinite mode.
* Following TCP/IP standard
* Supports resolution up to 480p/720p/1080i/1080p
* Supports max video bandwidth to 1.65Gbps/165MHz per channel (4.95Gbps all channels).
* CAT5e/6 cable follows the standard of IEEE-568B
* Supports 3D
* Features IR return which enables you to control the video source from your video destination.
3.0 Specifications
Signal Input |
HDMI Signal |
Input Video Signal |
0.5-1.0volts/p-p |
Output Video |
HDMI Signal |
Transmission Distance (via Cat6 cable) |
120m@1080p |
Vertical Frequency Range |
50/60Hz |
Video Amplifier Bandwidth |
Max up to 1.65Gbps/165MHz |
Interlaced (50&60Hz) |
480i,576i,1080i |
Progressive(50&60Hz) |
480p,576p,720p,1080p |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0℃ to +50℃ |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10℃ to +80℃ |
Storage Humidity |
5% to 90 % RH (no condensation) |
Power Supply |
5V DC @2A |
Power Consumption (Max) |
8W |
Extender Unit Cert. |
FCC,CE,RoHS |
Power Supply Cert |
CE,FCC, RoHS |
AC Power Adapter |
US,UK,EU,AUS Standard etc |
User Manual |
English Version |
4.0 Package Contents
1)Main Unit NO.1Sender x1
2)Main Unit NO.2Receiver x1
3)User Manual x1
4)IR Extender Sender x1
5)IR Extender Receiver x1
6)5V DC Power Adapter x2
7)Mounting Ear x 4
Netural Package : Color Box or As your Design
