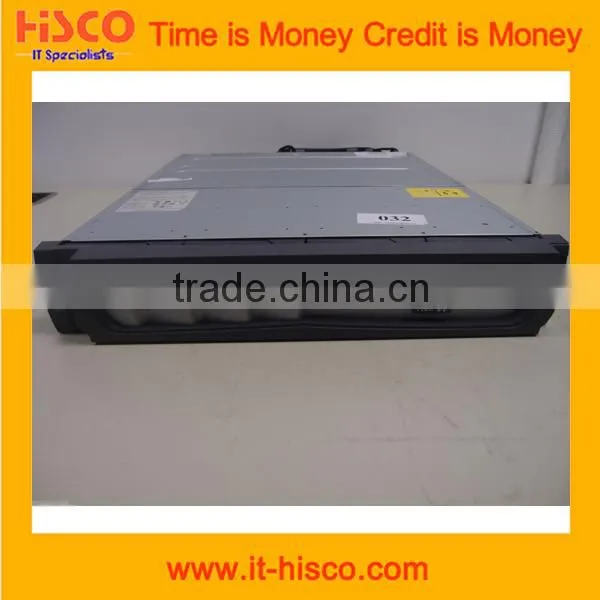

NetApp E5600 Storage System E5660

NetApp E5600 Storage System E5660 thumbnail-1
NetApp E5600 Storage System E5660 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Case Material:
Aluminum
External Interface:
Other, FC SAS
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Case Material Aluminum
External Interface Other, FC SAS
Internal Interface Other, FC SAS
Brand Name NetApp
Model Number E5660
Place of Origin Singapore
Company Information

1. Integrator of HP.
2. Partner of Dell and NetApp.
3. Agent of IBM, EMC, Juniper and Qlogic.
4. Professional on handling and customizing projects and IT solutions.
5. Spirit of keeping long-term business relationship.



Product Description

NetApp E5600 Storage System E5660



E5660

E5624

E5612
Maximum Raw Capacity

360TB
2.3PB with expansion shelves

(using 6TB* drives)

43.2TB
2.2PB with expansion shelves

(using 1.8TB* and 6TB* drives)

72TB
2.3PB with expansion shelves

(using 6TB* drives)
Maximum Disk Drives

360 with 60-drive shelves
384 with mixed shelves
120 SSDs

(25 SSDs per 60-drive shelf)		 384 drives
120 SSDs		 192 with 12 drive shelves
384 using other expansion shelves
Form factor 4U/60 drives (2.5"/3.5") 2U/24 drives (2.5") 2U/12 drives (3.5")
Drives Supported
  • 2/3/4/6TB NL-SAS 7.2k FDE/non-FDE
  • 600/900GB, 1.2/1.8*TB SAS 10k FDE/non-FDE
  • 400/800GB, 1.6TB SSD non-FDE**
  • 800GB SSD FDE**
  • 600/900GB, 1.2/1.8*TB SAS 10k FDE/non-FDE
  • 400/800GB, 1.6TB SSD non-FDE
  • 800GB SSD FDE
 2/3/4/6TB 7.2K NL-SAS FDE/non-FDE
DC Power Not available Available option Available option
System Memory 24GB
Host I/O Ports

8 port 12Gb SAS
8 port 10Gb iSCSI-optical
8 port 16Gb FC
4 port 56Gb (FDR) InfiniBand
Operating System & System Management

SANtricity® OS 8.20
SANtricity Storage Manager 11.20
High Availability Features

Dual active controller with automated I/O path failover
Dynamic Disk Pools and traditional RAID levels 0, 1, 3, 5, 6, and 10
Redundant, hot-swappable storage controllers, disk drives, power supplies, and fans
Automatic DDP or RAID rebuild following a drive failure
Mirrored data cache with battery backup and de-stage to flash
SANtricity proactive drive health monitoring identifies problem drives before they create issues
Greater than 99.999% availability (with appropriate configuration and service plans)
Host Operating Systems

Microsoft® Windows® Server, Red Hat Enterprise Linux®, Novell SUSE Linux Enterprise Server, Apple® Mac® OS, Oracle® Solaris, HP HP-UX, CentOS Linux, Oracle Enterprise Linux, IBM AIX, VMware® vSphere®
Included Software Features

SANtricity Mirroring
SANtricity Volume Copy
SANtricity Snapshot
SANtricity SSD Cache
SANtricity Thin Provisioning
Dynamic Disk Pools
Optional Software Features SANtricity Drive Encryption
System Capabilities

Data Assurance (T10-PI standard)
Dynamic volume expansion
Dynamic capacity expansion
Dynamic RAID-level migration
Dynamic segment size migration
System Event Monitor
Proactive drive heath monitoring
AutoSupport automatic support system
Online SANtricity OS upgrades & drive firmware upgrades
VMware vSphere Storage APIs – Array Integration (VAAI)
Microsoft Offloaded Data Transfer (ODX)
Application Plug-ins**

Oracle: SANtricity Plug-in for Oracle Enterprise Manager
Microsoft: SANtricity Management Pack for Microsoft System Center Operations Manager (SCOM) & SANtricity Plug-in for Microsoft SQL Server® Management Studio (SSMS)
VMware: SANtricity Plug-in for VMware vCenter®; E-Series VASA Provider, Storage Replication Adapter for E-Series
Splunk: SANtricity Performance App for Splunk Enterprise
Open Management

SANtricity OpenStack Cinder
SANtricity Web Services Proxy (REST and SYMbol Web)
SANtricity PowerShell Toolkit
System Maximums Host/partitions: 512
Volumes: 2,048
Snapshot copies: 2,048
Mirrors: 128

* Expected availability by mid-2015
** No-charge download from


Energy Star
  • All ENERGY STAR certified systems are dual power/cooling/controllers, FDE or non-FDE drives of any capacity, with any host interface option
  • NetApp E-Series E5612 up to 24 HDD drives w/DE1600 shelf
  • NetApp E-Series E5624 up to 48 HDD drives w/DE5600 shelf
  • NetApp E-Series E5660 up to 120 HDD drives w/DE6600 shelf


Dimensions and
Weight		 E5660 System Shelf
DE6600 Disk Shelf		 E5624 System Shelf
DE5600 Disk Shelf		 E5612 System Shelf
DE1600 Disk Shelf
Height 7.0" (17.78 cm) 3.47" (8.81 cm) 3.4" (8.64 cm)
Width 19" (48.26 cm) 19" (48.26 cm) 19" (48.26 cm)
Depth 32.5" (82.55 cm) 19.6" (49.78 cm) 21.75" (55.25 cm)
Weight (max) 236.2 lb. (107.1 kg) 61.5 lb. (27.9 kg) 63.7 lb. (28.9 kg)


  E5660 system shelf E5624 system shelf E5612 system shelf
Typical Maximum Typical Maximum Typical Maximum
KVA 1.115 1.325 0.596 0.746 0.475 0.625
Watts 1104 1312 590 738 470 619
BTU 3767 4477 2013 2519 1605 2111
  DE6600 disk shelf DE5600 disk shelf DE1600 disk shelf
Typical Maximum Typical Maximum Typical Maximum
KVA 0.801 1.011 0.296 0.446 0.175 0.325
Watts 793 1001 293 442 174 322
BTU 2707 3415 1001 1507 593 1099
Picture Showcase
We take product photos freshly in warehouse.

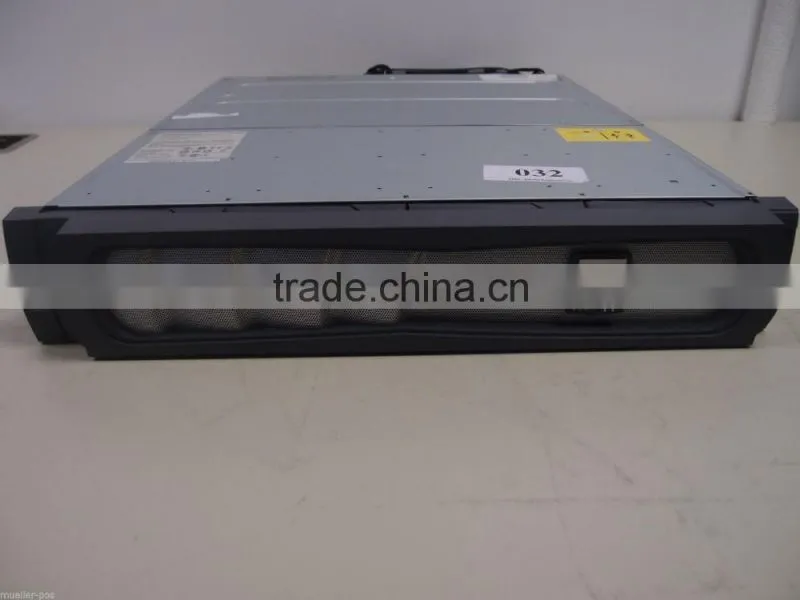

NetApp E5600 Storage System E5660
NetApp E5600 Storage System E5660NetApp E5600 Storage System E5660
Our Services

1. Reply within 3-5min, solving further questions within 12h. 7x12h online service.
2. 1-3yr warranty for different items. Supplying new replacement within 3 days after we receive the damaged item, 7x8h service.
3. Online normal technical support and service 7x12h, troubleshooting 5x9h Tec. Sup&Svi.

Packaging & Shipping

NetApp E5600 Storage System E5660
