FAS8040

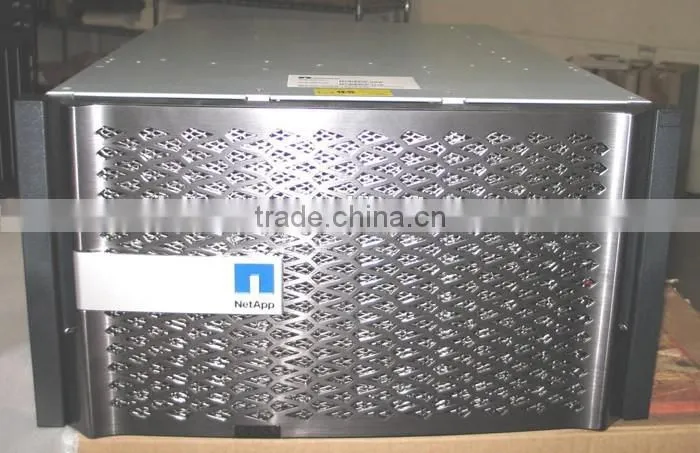

FAS8040 thumbnail-1
FAS8040 photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Size:
Other, 2.5'', 3.5''
Case Material:
Aluminum
Contact Supplier Request Quote Chat Now
Shenzhen Hisco Technology Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Products Status Stock
Size Other, 2.5'', 3.5''
Case Material Aluminum
External Interface Other, SAS, FC
Internal Interface Other, SAS, FC
Brand Name NetApp
Model Number FAS8040
Place of Origin Singapore
Company Information

1. Integrator of HP.

2. Partner of Dell and NetApp.

3. Agent of IBM, EMC, Juniper and Qlogic.

4. Professional on handling and customizing projects and IT solutions.

5. Spirit of keeping long-term business relationship.



Product Description



Technical specifications for the NetApp FAS8000 Series unified scale-out storage



  FAS8040
NAS Scale-Out 1–24 nodes (12 HA pairs)
Maximum drives 8,640
Maximum capacity 51PB
Maximum Flash Pool™ capacity 576TB
Maximum memory 768GB
SAN Scale-Out 1–8 nodes (4 HA pairs)
Maximum drives 2,880
Maximum capacity 17PB
Maximum Flash Pool capacity 192TB
Maximum memory 256GB
Cluster interconnect 2 or 4 10GbE



Per HA Pair Specifications (Active-Active Dual Controller)


  FAS8040
Maximum capacity 4320TB
Maximum Flash Pool capacity 48TB
Maximum drives 720
Controller form factor Single-enclosure HA; 2 controllers in single 6U chassis
Memory 64GB
Maximum Flash Cache™ 4TB
Maximum Flash Pool 48TB
Combined flash total 48TB
NVRAM 16GB
PCIe expansion slots 8
Onboard I/O: UTA2
(10GbE/FCoE, 16Gb FC) 		8
Onboard I/O: 10GbE 8
Onboard I/O: GbE 8
Onboard I/O: 6Gb SAS 8
Storage networking supported FC; FCoE; iSCSI; NFS; pNFS; CIFS/SMB
OS version Data ONTAP 8.2.1 RC2 or higher
High-availability features Alternate Control Path (ACP); Ethernet-based service processor and Data ONTAP management interface; redundant hot-swappable controllers, cooling fans, power supplies, and optic
Supported configurations




Data ONTAP 8.2.x 		Clustered Data ONTAP configurations:
  • Single-node cluster
  • Two-node switchless or switched cluster
  • Clusters of HA pairs
7-Mode configurations:
  • Single controller
  • Active-active controller with controller failover and multipath HA storage

7-Mode MetroCluster™ configurations:

  • Active-active controller with stretch (non-switched storage) MetroCluster
  • Active-active controller with fabric-attached (switched storage) MetroCluster

Supported configurations




Data ONTAP 8.3

Clustered Data ONTAP configurations:

  • Single-node cluster
  • Two-node switchless or switched cluster
  • Clusters of HA pairs

MetroCluster Clustered Data ONTAP configurations:

2 x two-node switched or switchless clusters with fabric-attached (switched) storage; 4 nodes total: a 2-node active-active cluster at each site total)
Disk shelves supported DS2246 (2U; 24 drives, 2.5" SFF)
DS4246 (4U; 24 drives, 3.5" LFF)
DS4486 (4U; 48 drives, 3.5" LFF)
DS4243 (4U; 24 drives, 3.5" LFF) supported for upgrades only
DS14 disk shelves (mk2-AT, mk4) are supported for upgrades only
See NetApp Disk Shelves and Storage Media for more details on each disk shelf and supported drive types.
Maximum RAID group sizes

RAID 6 (RAID DP®):

Performance disk: 28 (26 data disks plus 2 parity disks)

Capacity disk: 20 (18 data disks plus 2 parity disks)



RAID 4:

Performance disk: 14 (13 data disks plus 1 parity disk)

Capacity disk: 7 (6 data disks plus 1 parity disk)

RAID 6 + RAID 1 or RAID 4 + RAID 1 (SyncMirror®)
Operating systems supported Windows® 2000, Windows Server® 2003, Windows Server 2008, Windows Server 2012, Windows XP, Linux®, Oracle® Solaris, AIX, HP-UX, Mac® OS, VMware®, ESX®
Max. number of LUNs 8,192
Number of supported SAN hosts Up to 512 hosts per HA pair
Up to 24 directly connected servers per HA pair
FlexVol® volumes Up to 1,000 per controller (clustered Data ONTAP); up to 500 per controller (7-Mode)
Snapshot® copies Up to 255,000 per controller
Maximum volume size 100TB
Maximum aggregate size 324TB
Maximum Port Count (Includes Integrated Ports and PCIe Expansion Slots)
FC target ports (16Gb autoranging) 24
FC target ports (4Gb or 8Gb) 40
FCoE target ports, UTA (max.) 24
10GbE ports (max.) 32
GbE ports (max.) 40
6Gb/12Gb SAS ports (max.) 40
FC initiator ports (max.) 40
Maximum Adapters
Dual 10GbE (optical or copper) 8
Dual 10Gbase-T (RJ-45,CAT 6A-E) 8
Quad GbE (copper) 8
Dual 10GbE/FCoE 16Gb FC Unified Target Adapter 2 (UTA2, optical or copper for 10GbE/FCoE deployments, optical for 16Gb FC) 8
8Gb FC target 8
Flash Cache Performance Acceleration Module (2TB) 2
Flash Cache Performance Acceleration Module (1TB) 4
Flash Cache Performance Acceleration Module (512GB) 8
Quad 6Gb SAS storage HBA 8
Quad 12Gb SAS storage HBA 8
Quad 4Gb FC storage/tape HBA (fiber) 8



System Environmental Specifications

  FAS8040
Thermal Rating (at 200V) 1,495 BTU (typical)

1,843 BTU (worst case)
Weight (heaviest) 119.49lb.
Height 6U
Width 19" IEC rack-compliant (17.6", 44.7cm)
Depth 24.3" (28.9" with cable management)
Operating temperature, altitude, and relative humidity 10°C to 40°C (50°F to 104°F); at <= 3,000m (at <= 10,000') elevation; 20% to 80% relative humidity, noncondensing (28°C wet bulb temperature)
Nonoperating temperature and relative humidity –40°C to 70°C (–40°F to 158°F); 5% to 95% relative humidity, noncondensing, in original container
Operating acoustic noise  FAS8020:
  • Declared sound power (LwAd) per ISO 9296: 7.8 Bel
  • Sound pressure (LpAm) (bystander positions): 62.6 dB

FAS8040/FAS8060:
  • Declared sound power (LwAd) per ISO 9296: 7.6 Bel
  • Sound pressure (LpAm) (bystander positions): 62.4 dB

FAS8080 EX:
  • Declared sound power (LwAd) per ISO 9296: 7.5 Bel @ normal operating conditions (at 23°C and at sea level)
Compliance RoHS-compliant (PDF)
Safety/emissions/immunity Safety: EN 60950, CE, CSA 60950, UL 60950, CB IEC60950-1 (all national deviations), EN60825-1, IRAM, CU, BIS, BSMI, SONCAP, NRCS LOA (South Africa)

Emissions/Immunity: FCC Part 15 Class A, ICES-03, CE, KCC, VCCI, AS/NZS CISPR 22, EN55022, EN55024, EN61000-3-2, EN61000-3-3, SABS COC (South Africa), BSMI



NetApp Systems Cabinet

  FAS8040
Rack space 42U
Dimensions (height/width/depth) 78.75" (200cm)/23.6" (60cm)/44.3" (112.5cm)
Minimum cabinet clearances for airflow 10" (25.4cm) front and 12" (30.5cm) rear
Minimum cabinet clearances for service 30" (76.3cm) front and rear, 12" top
AC power 200 to 240VAC
Current 30A single-phase or 3-phase
Weight (empty) 307lb. (138kg)
Features Split rear door with cable egress opening, reversible front door (left or right handed)

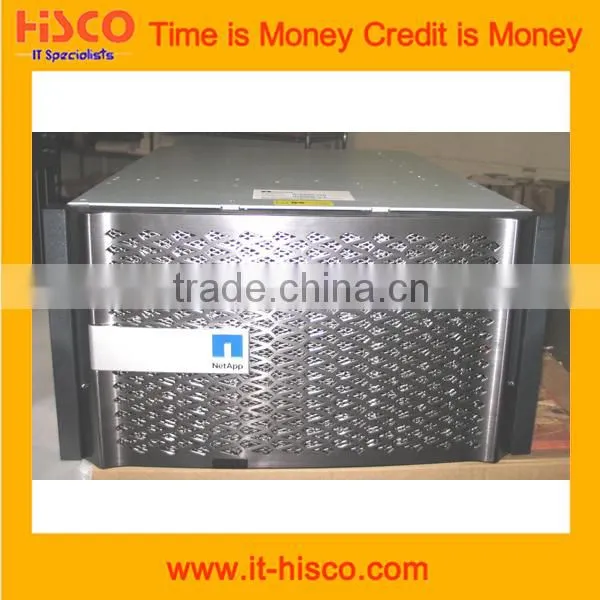

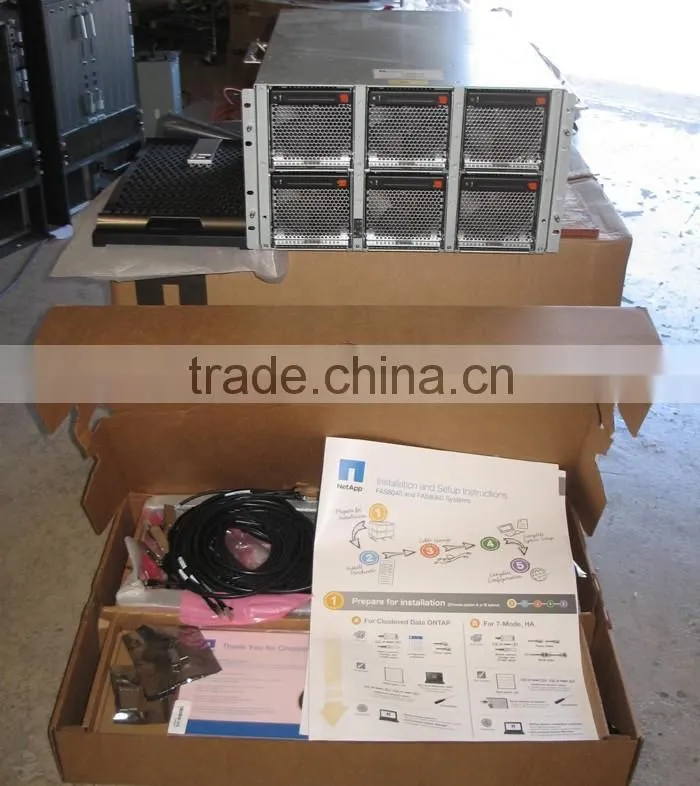

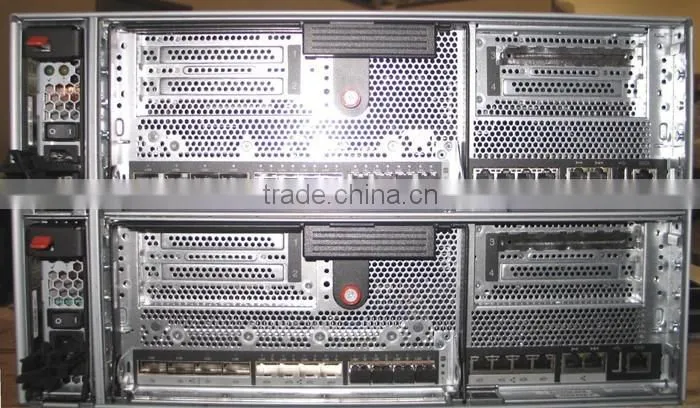

Picture Showcase

We take product photos freshly in warehouse.



FAS8040



FAS8040



FAS8040

Our Services

1. Reply within 3-5min, solving further questions within 12h. 7x12h online service.

2. 1-3yr warranty for different items. Supplying new replacement within 3 days after we receive the damaged item, 7x8h service.

3. Online normal technical support and service 7x12h,  troubleshooting 5x9h Tec. Sup&Svi.

Packaging & Shipping

FAS8040
