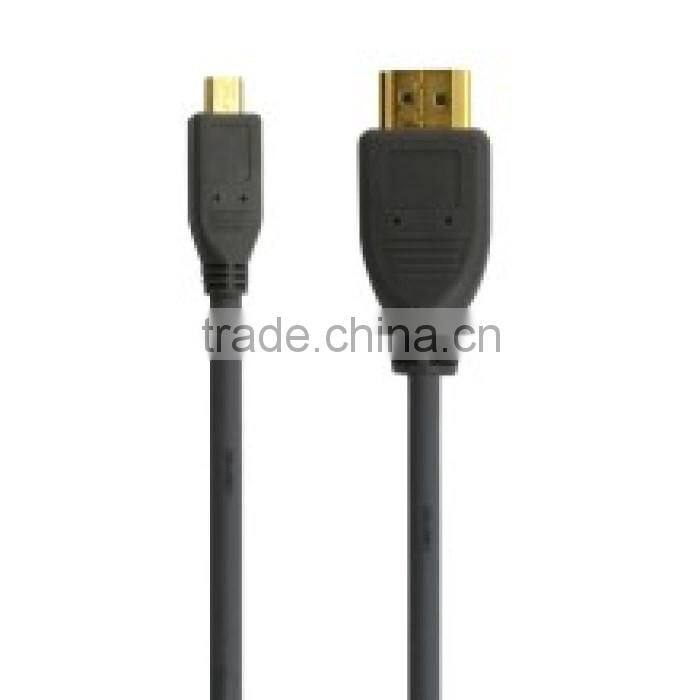

Help Center5FT Micro HDMI to HDMI Cable High Speed Cell Phone 1080p 3D HTC EVO 4G HDTV
Related Products
-
High Speed 3D and 1080P Right Angle HDMI Cable 1.4v With EthernetUS$ 1.2 - 2.13MOQ: 50 Pieces -
30M HDMI Cable With Amplifier for 1080P Full HD LED DisplayUS$ 0.65 - 0.95MOQ: 50 Pieces
-
HDMI Male to Male Left Angled Cable Panel Mount With Screw Lock Cable Panel Mount With Screw Lock Cable 1080P for HDUS$ 1.2 - 2.8MOQ: 50 Pieces
-
2160p Micro Hdmi CableUS$ 0.55 - 0.85MOQ: 50 Pieces
-
Offer 1.4 High Speed Gold Plated Hdmi CableUS$ 0.55 - 0.85MOQ: 50 Pieces
1. HDMI Cable Specifications | |
| |
onductors: |
High purity Oxygen Free Copper |
Insulation: |
Outer Jacket and color optional |
Contacts: |
Gold Plated |
Connectors: |
Metal shell type |
Available lengths: |
up to 50m optional |
Available terminations: |
HDMI,19PIN,Male to Male, Version 1.4v, up to 1080P |
Available gauge: |
24/26/28/30AWG(optional) OD:5.5/6.0/7.3mm |
Certification: |
RoHS,UL,CE |
Shielding: |
AL+ Braiding(for option) |
AWG: |
24/26/28/30 AWG available for different length |
2. HDMI Cable Features |
|

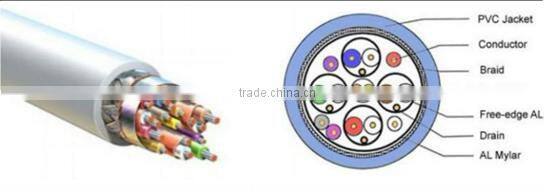

1, Center conductor: high quality digital signal delivered by oxygen-free copper 2, Insulation: Using foamed PE as the insulation, ensure image quality and transmit image signal with stability. 3, Inner shield:100% Aluminum/Mylar foil shield, prevent high frequency noises and interference 4, Outer shield:95% AL braid shield, prevents most low frequency noises and interference. 5, Function: suitable for HDTV, home theater, DVD player,projector,PS3,XBOX 360 and other HDMI devices. 6, High density triple shielding for maximum rejection of EMI and RFI 7, Transfer speed: 10.2Gbps 8, connectors: gold-plated to ensure superior signal transfer and lifetime of maximum performance 9, Color optional: Silver, Golden, Shiny black, white porcelain, black porcelain, chromel AND MORE |
3,Packings |
|
A: Bubble blister is your first choice to make your prodcts attractive B: Premium Slide Blister is competitive in price but catch customer's eyes C: Gift box packing to make your products more environmental D: Poly bag with card header and barcode number is low cost but good looking E: Customer's designs are available by request |
4,Applications |
|
1.digital TV 2.Plasma display 3.LCD display 4.DVD player/repeater 5.Audio/video receiver 6.Home video system 7.Satellite system ········· |
Delivery:
Exhibition:
Our other products:
1. hdmi switcher, hdmi splitter
2.hdmi adepter
3.hdmi extender
4.hdmi converter
5.Audio switch,audio converter
