Home > Computer Products > Network Hardware & Parts > Network Switch > WS-C3650-48TQ-S Catalyst 3650 48 Port Data 4x10G Uplink IP Base

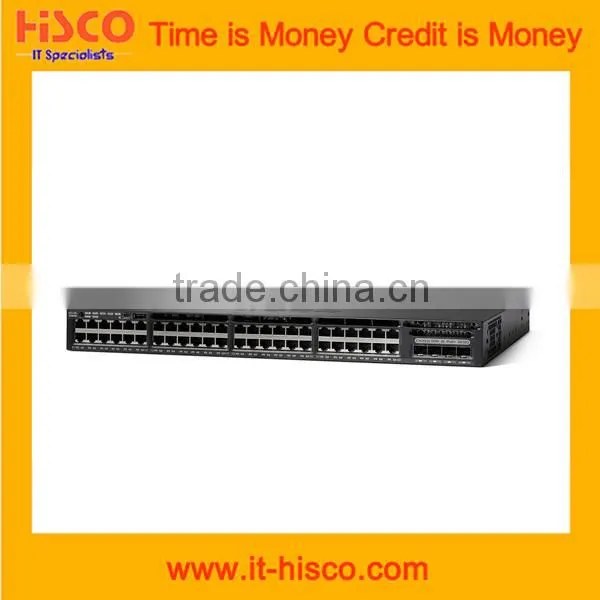

WS-C3650-48TQ-S Catalyst 3650 48 Port Data 4x10G Uplink IP Base
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Products Status:
Stock
Ports:
Other, ≥ 48
Transmission Rate:
10/100/1000Mbps
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
WS-C3650-48FQ-L Catalyst 3650 48 Ports Fiber SwitchNegotiableMOQ: 1 Piece -
WS-C3650-48FQ-E Catalyst 3650 48 Port Full PoE 4x10G Uplink IP Services SwitchNegotiableMOQ: 1 Piece
-
WS-C3650-48PQ-L Catalyst 3650 48 Port PoE 4x10G Uplink LAN BaseNegotiableMOQ: 1 Piece
-
WS-C3650-48PQ-E Catalyst 3650 48 Ports Poe SwitchNegotiableMOQ: 1 Piece
-
WS-C3650-48TQ-L Catalyst 3650 48 Ports Network SwitchNegotiableMOQ: 1 Piece
Products Status
Stock
Ports
Other, ≥ 48
Transmission Rate
10/100/1000Mbps
Function
LACP, POE, QoS, SNMP, VLAN Support
Communication Mode
Other, Full-Duplex & Half-Duplex
Certification
UL CE
Switch Capacity
176Gbps
Brand Name
For Cisco
Model Number
WS-C3650-48TQ-S
Place of Origin
China
Company Information
1. Integrator of HP.
2. Partner of Dell and NetApp.
3. Agent of IBM, EMC, Juniper and Qlogic.
4. Professional on handling and customizing projects and IT solutions.
5. Spirit of keeping long-term business relationship.
Product Description
WS-C3650-48TQ-S Catalyst 3650 48 Port Data 4x10G Uplink IP Base
| Device Type | Switch - 48 ports - L3 - Managed - stackable |
| Enclosure Type | Desktop, rack-mountable 1U |
| Subtype | Gigabit Ethernet |
| Ports | 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ |
| Power Over Ethernet (PoE) | PoE+ |
| PoE Budget | 775 W |
| Performance |
Switching capacity : 176 Gbps Forwarding performance : 130.95 Mpps |
| Capacity |
IPv4 routes : 24000 NetFlow entries : 48000 Virtual interfaces (VLANs) : 1000 Switched virtual interfaces (SVIs) : 1000 |
| MAC Address Table Size | 32000 entries |
| Jumbo Frame Support | 9198 bytes |
| Routing Protocol | OSPF, RIP-1, RIP-2, static IP routing, RIPng |
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
| Features | Layer 2 switching, ARP support, trunking, VLAN support, IGMP snooping, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, MLD snooping, Dynamic ARP Inspection (DAI), EIGRP Stub Routing, Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Flexible NetFlow (FNF) |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at |
| Power | AC 120/230 V ( 50/60 Hz ) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 44.5 cm x 48.6 cm x 4.4 cm |
We also have other Catalyst 3650 series switches in stock :
| WS-C3650-48FS-L | Catalyst 3650 48 Port Full PoE 4x1G Uplink LAN Base |
| WS-C3650-24PS-S | Catalyst 3650 24 Port PoE 4x1G Uplink IP Base |
| WS-C3650-48FS-E | Catalyst 3650 48 Port Full PoE 4x1G Uplink IP Services |
| WS-C3650-48TS-E | Catalyst 3650 48 Port Data 4x1G Uplink IP Services |
| WS-C3650-48PS-E | Catalyst 3650 48 Port PoE 4x1G Uplink IP Services |
| WS-C3650-24PS-E | Catalyst 3650 24 Port PoE 4x1G Uplink IP Services |
| WS-C3650-24TS-E | Catalyst 3650 24 Port Data 4x1G Uplink IP Services |
| WS-C3650-48TS-S | Catalyst 3650 48 Port Data 4x1G Uplink IP Base |
| WS-C3650-48FS-S | Catalyst 3650 48 Port Full PoE 4x1G Uplink IP Base |
| WS-C3650-48PS-L | Catalyst 3650 48 Port PoE 4x1G Uplink LAN Base |
| WS-C3650-24PS-L | Catalyst 3650 24 Port PoE 4x1G Uplink LAN Base |
| WS-C3650-48TS-L | Catalyst 3650 48 Port Data 4x1G Uplink LAN Base |
| WS-C3650-24TS-L | Catalyst 3650 24 Port Data 4x1G Uplink LAN Base |
| WS-C3650-48PS-S | Catalyst 3650 48 Port PoE 4x1G Uplink IP Base |
| WS-C3650-24TS-S | Catalyst 3650 24 Port Data 4x1G Uplink IP Base |
Picture Showcase
We take product photos freshly in warehouse.
