SPDIF/TOSLINK Digital Optical Audio 3x1 Switcher with IR Remote
Introduction >>>

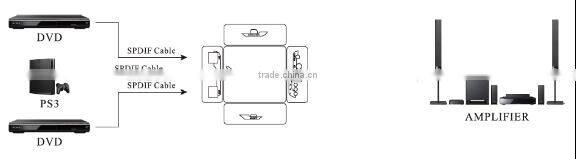

This SPDIF/Toslik Digutal Optical Audio Switchers can let the users to connect three digital optical Toslink sources to one optical Toslink (SPDIF) input on your AV amplifier
Feature >>>
*One way of optical fiber signals switch to one sets of SPDIF/Toslink signal receiving device
*Support signal retiming
* Audio format support : LPCM2.0/DTS/Dolby-AC3
*Use optical fiber cable that losses less than 0.2Db/m,Output distance is up to 40m
*The input control can through R/M and also can directly press the button
*Support last time working state memory when power off
*Over-voltage protection can prevent the damage caused by connecting unmatched to the machine
*LED status indication
*No loss of quality
*Installs in minutes
Specification
>>>
Support audio format |
LPCM2.0/DTS/Dolby-AC3 |
|
Peak wavelength |
650nm |
|
Max baud rate |
16Mbps |
|
Output cable distance |
≤40m(Use the optical fiber cable that losses less than 0.2Db/m) |
|
Power Supply |
USB Power Cable |
|
Operating Temperature range |
(0 to 40℃) |
|
Operating Humidity range |
5 to 90%RH(No condensation) |
|
Package Content >>>
1)SPDIF/Toslink SWITCH
2)USB Power Cable
3)User Manual
4)Remote control
5)IR extender receiver

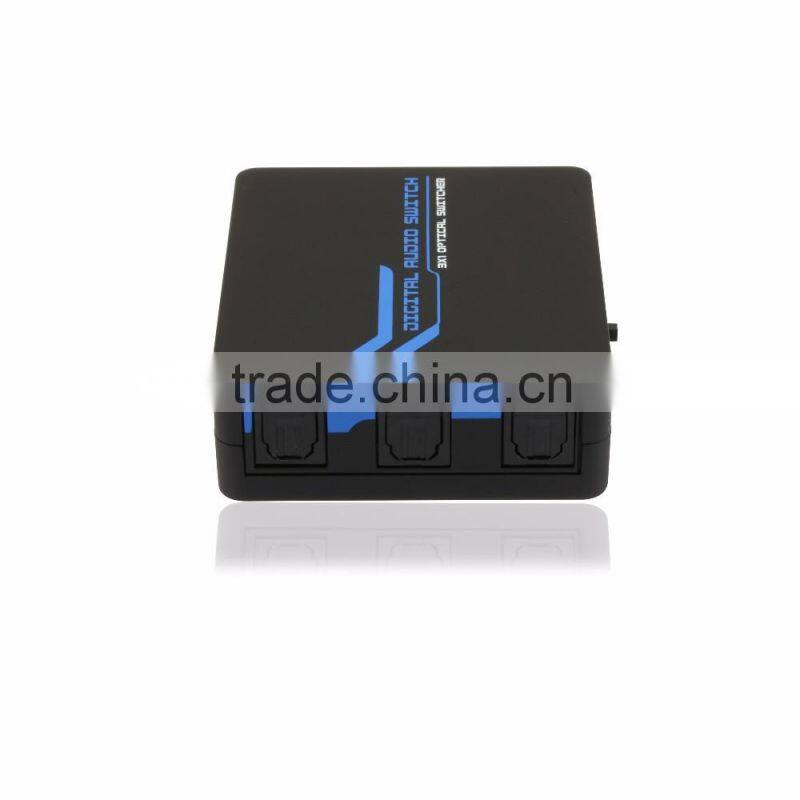

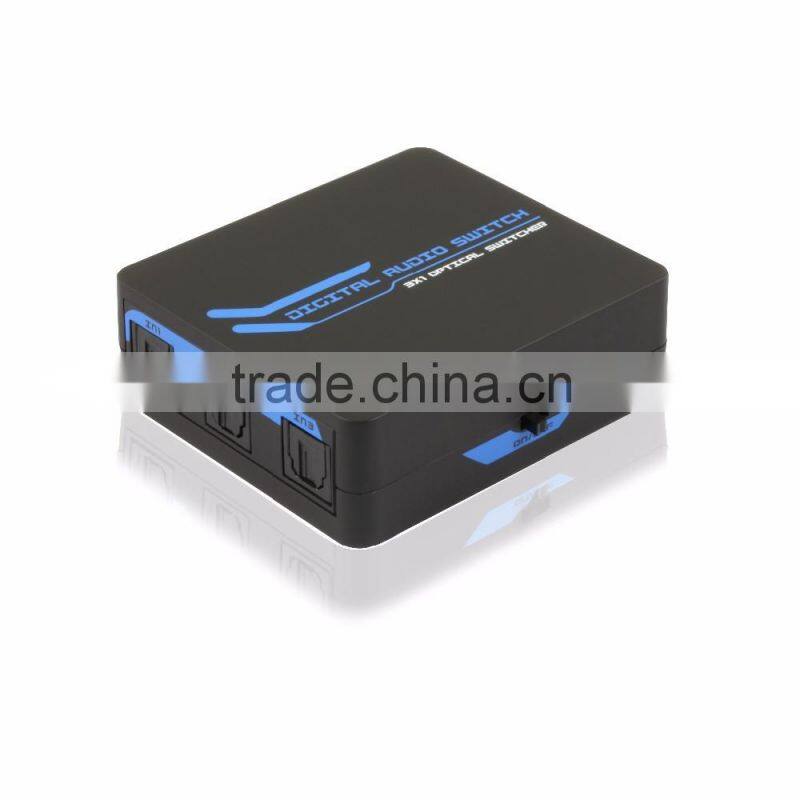

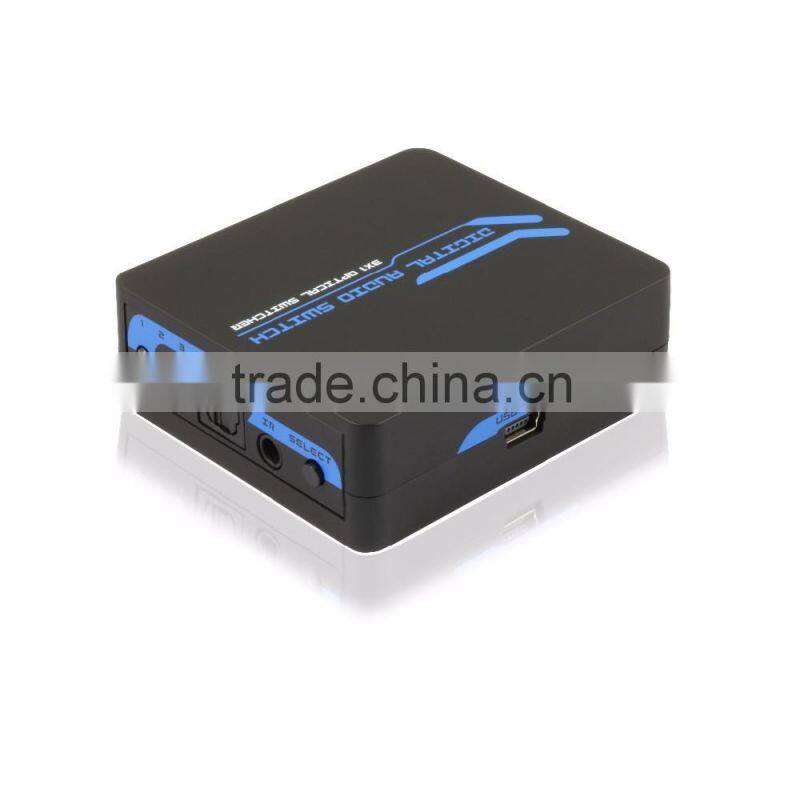

Package Photo
>>>
