hdmi to digital coaxial 5w power consumption digital to analog signal converter
Introduction:

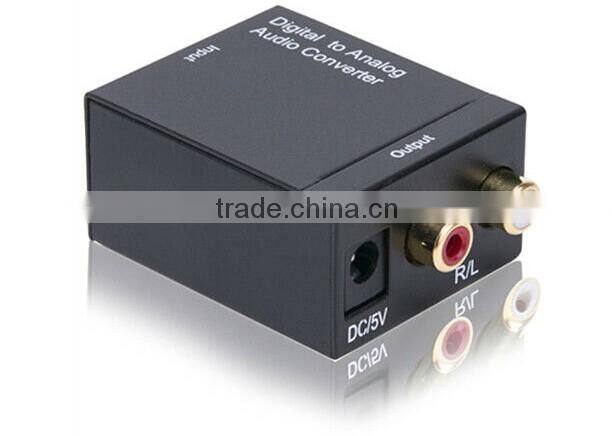

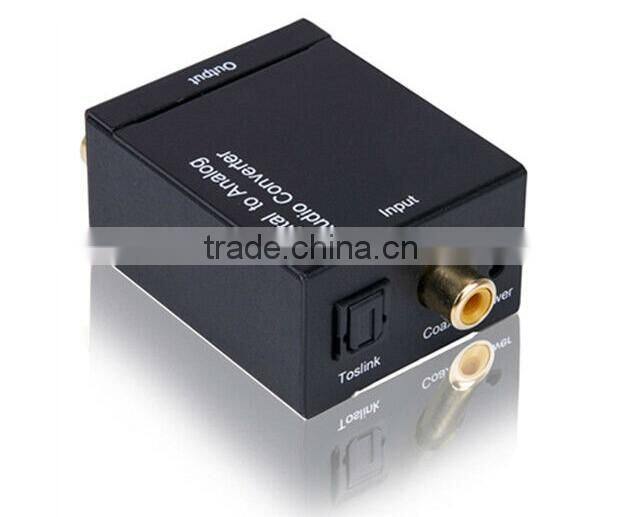

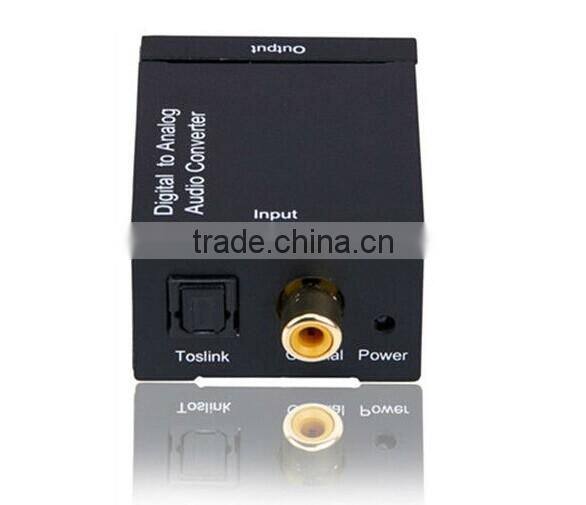

This hdmi to digital coaxial is designed for either home or professional audio switching. It converts Coaxial or Toslink digital audio signals to analog L/R audio and available for connection to an external device such as an amplifier via standard RCA style jacks. This Converter is small in size and quite easy to install.
Features:
* Converts Coaxial or Toslink digital audio signals to analog L/R audio
* Supports sampling rate at 32, 44.1, 48 and 96 KHz.
* 24-bit S/PDIF incoming bit stream on left and right channels
* Provides electromagnetic-noise-free transmission.
* Easy to install and simple to operate.
Parameters:
Product Name |
hdmi to digital coaxial |
Model NO. |
PETDTA |
nput audio connector |
Toslink,1XRCA(Coaxial) |
Output audio connector |
2XRCA(R/L) |
Sampling rate |
32, 44.1, 48 and 96 KHz |
Size(L-W-H) |
51X41X26MM |
Weight (Net) |
78g |
Limited Warranty |
1 Year Parts and Labor |
Operating Temperature |
0°C to +70°C |
Operating Humidity |
10% to 85 % RH (no condensation) |
Storage Temperature |
-10°C to +80°C |
Storage Humidity |
5% to 90 % RH (no condensation) |
External Power Supply |
5V DC@2A |
Power Consumption |
0.5 watts (max) |
Converter Unit |
FCC,CE |
Power Supply |
CE,FCC |
AC Power Adapter |
US standard, UK standard and so on |
User Manual |
English Version, or custom made |

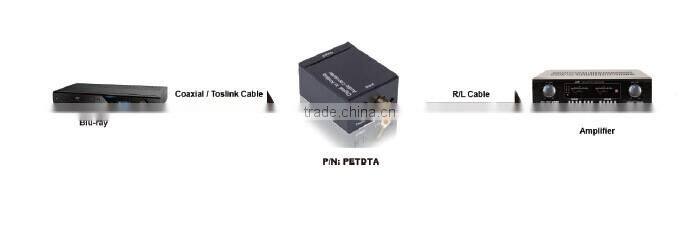

Diagram:
Packaging contents:
1) Main unit (Digital to Analog Audio Converter).
2) 5V DC Power Supply.
3) User’s Manual.
Packing:
1. Bubble package, save shipping cost
2) Neutral gift box, beautiful in appearance.
