Help CenterEnergy Meter Split-core ct Current Transformer
Related Products
Specifications Of energy meter split-core ct current transformer
Rated Current 5A to 3000Amp.
Output of 0.333 Volt at rated current
Accuracy: ± 1% from 10% to 150% of Full Scale Range
Phase angle < 2 maximum at 50% rated current
Snap closing/opening feature.
Shrouded core blades for protection during installation.
Core interleaved at joints for accuracy.
No exposed metal parts on assembled transformer.
Internal precision burden resistor across secondary.
Epoxy encapsulated housing.
Accuracy is measured from 10% to 130% of rated current.
Phase angle is measured at 50% of rated current

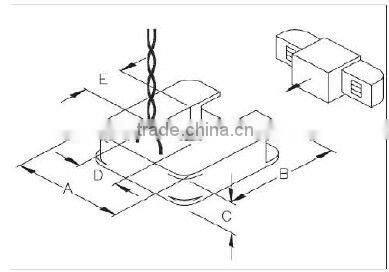

Drawing Size Of energy meter split-core ct current transformer
Model |
I. D. |
Rated Amps |
Output |
Accuracy |
SIZE (mm ) |
||||
A |
B |
C |
D |
E |
|||||
FJ-SCT-0750 |
0.75" |
5, 15, 30, 50, 70, 100, 150, 200 |
0.333V |
1.0 |
51.6 |
54.1 |
16.6 |
19.1 |
18 |
FJ-SCT-1250 |
1.25" |
70, 100, 150, 200, 250, 300, 400, 600 |
1.0 |
82.3 |
85.3 |
26.4 |
32 |
32.3 |
|
FJ-SCT-2000 |
2.00" |
400, 600, 800, 1000, 1200, 1500 |
1.0 |
120 |
125 |
29.6 |
52.5 |
52 |
|
FJ-SCT-3000 |
3.00" x 5.00" |
1000, 1200, 1500, 2000.3000 |
1.0 |
145 |
199 |
30.5 |
76 |
130 |
|
Here are the product descritions:

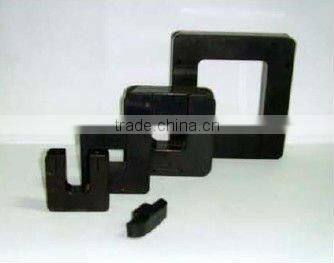

SCT-0751 Split Core Current Transformer Output 0.333V

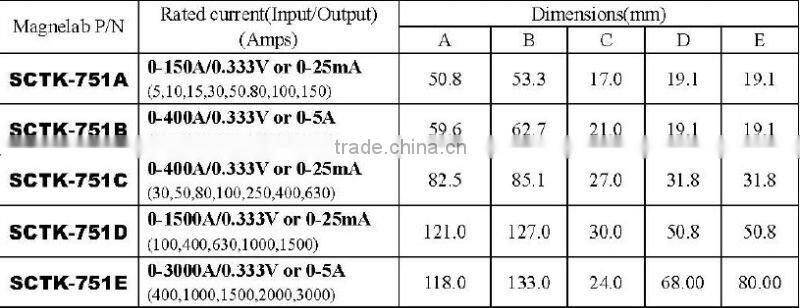

Here are the detail Specification of this Split Current Transformer
Also Customize is Accepted and Sample can be provided on request.
You are more than welcome to contact us for any questions and doubts!
