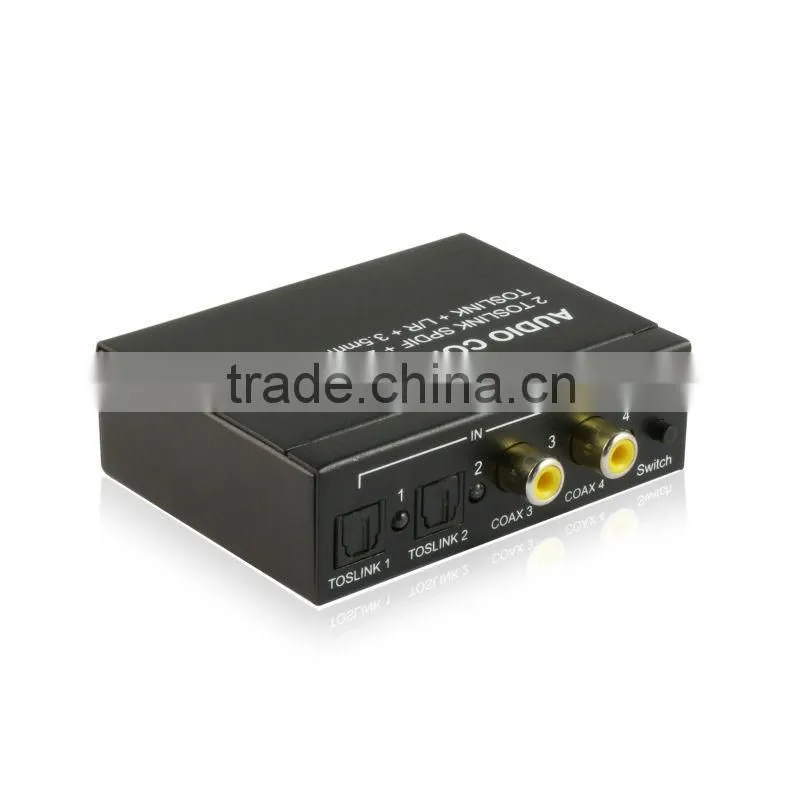

Home theater digital to analog audio converter 2 toslink spdif+2 coaxial to toslink with 3.5mm audio switch converter
1.0 Introduction

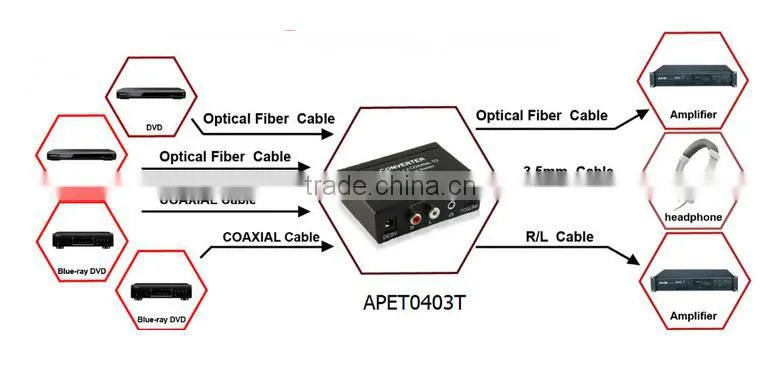

This product is a 4-ports SPDIF Switcher, also is a digital to analog converter. You can switch any one of the four digital audio signals to the one SPDIF/TOSLINK audio output + one analog R/L output and one headphone output simultaneously. It works with the DVD,PS3,XBOX360,HD player,PC and other similar signal generator source.
2.0 Features

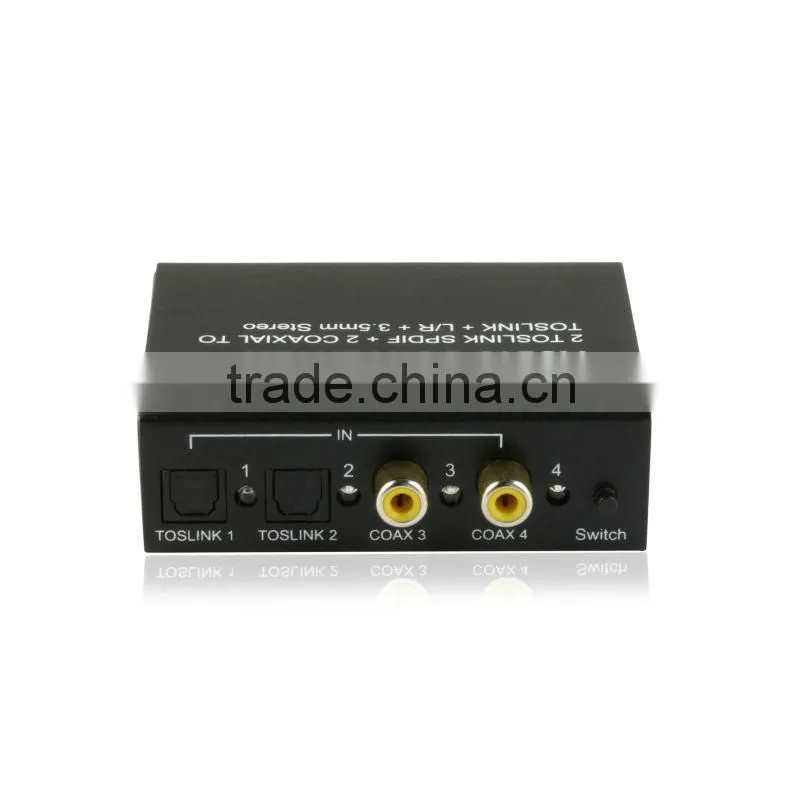

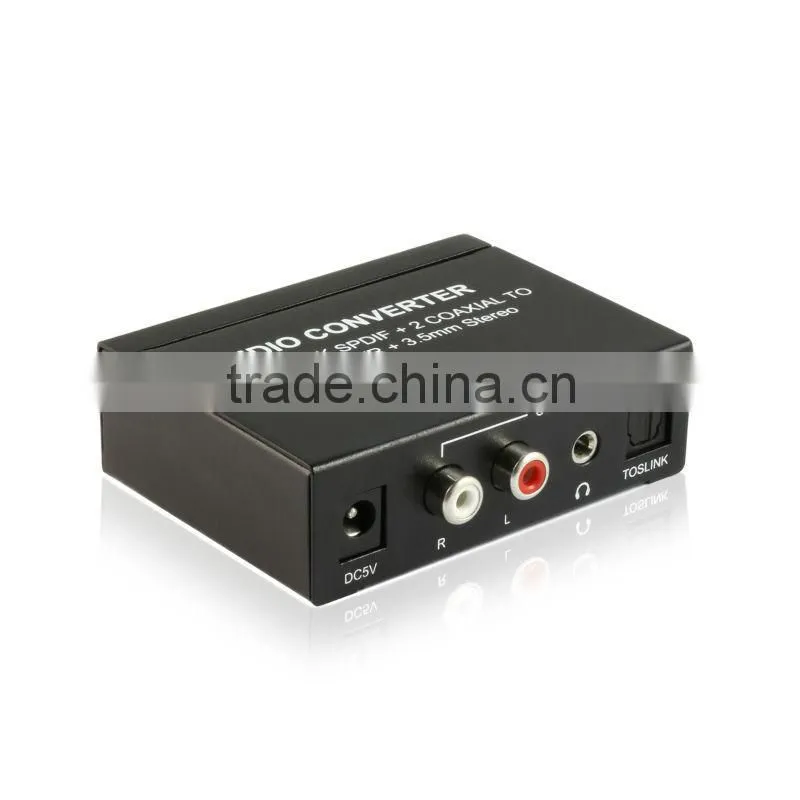

* 4-ports SPDIF(2xTOSLINK and 2xCOAXIAL)digital audio input, switch to 1port SPDIF/TOSLINK output,one R/L analog audio and one
headphone output
* Uses 192KHZ/24bit DAC
* Audio format support: LPCM, DTS, Dolby-AC3, THX, HDCD.
* Support LPCM digital audio converted to analog audio output
* Automatic identification input digital audio signal format, when non-LPCM input, analog output mute
* Support last time working state memory when power off
* Over-voltage protection can prevent the damage caused by connecting unmatched to the machine
* Input status indication. When no audio or error data input, the input port indicator starts to flash
* Headphone amplifier output, can drive the general 3.5mm earphone
* No loss of quality
* Installs in minutes
3.0 Specifications
Analog Audio Output Support audio format |
PCM/LPCM |
Digital input level |
0.1~1Volts p-p |
DAC sample frequency range |
32~192 KHz |
DAC Bit rate range |
16-24 Bit |
R/L output level(1KHz@0dB) |
1V RMS |
Headphone output power(1KHz@0dB RL=32) |
30mW |
SNR@0dB(CCIR/ARM) |
90dB |
Distortion |
0.1% |
Frequency response |
20Hz~20KHz |
Max working current |
100mA |
Operating Temperature range |
(-10 to 55C) |
Operating Humidity range |
5 to 90%RH(No condensation) |
Power Supply |
5V DC |
Power Supply Cert |
CE,FCC |
AC Power Adapter |
US standard,UK standard and so on |
4.0 Package & Shipping Contents
1) Main unit
2) DC 5V power supply
3) User Manual
