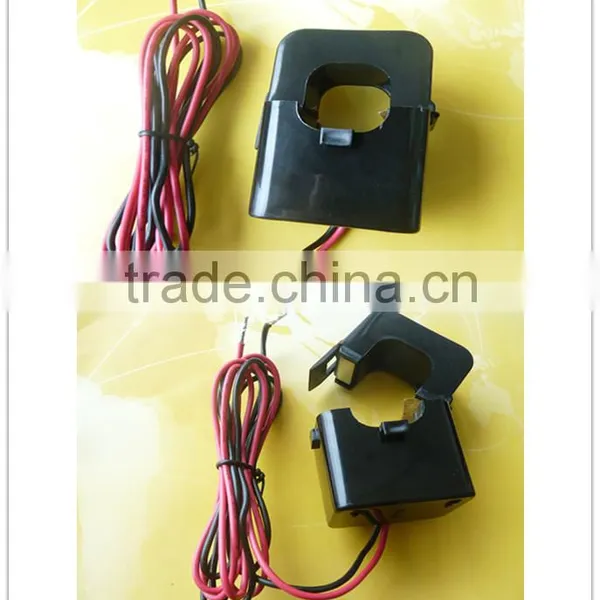

CT301 Mini Black Split Core Current Transformer
US$ 1 - 15
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Christmas Island
Brand Name:
Coilcore
Model Number:
CT301
Payment & Shipping
Payment Methods:
Port of Shipment:
GUANGZHOU
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Current Sensor EE25 -300TUS$ 1 - 15MOQ: 100 Pieces -
Single Tube Main TransformerUS$ 0.5 - 15MOQ: 100 Pieces
-
Oval Nanocrystalline/ Amorphous Core for Current TransformerUS$ 0.3 - 15MOQ: 50 Pieces
-
Amorphous Powder CoreUS$ 1 - 9MOQ: 200 Pieces
-
CORES FOR CURRENT TRANSFORMERS FOR ELECTRONIC ENERGY METERUS$ 1 - 10MOQ: 100 Pieces
Place of Origin
Christmas Island
Brand Name
Coilcore
Model Number
CT301
Type
Other
Shape
Other
Mini Split Current Transformer
1.Features:
-- Frequency band: 50Hz~60Hz 1KHz MAX
--Dielectric strenght: 3000Vrms/2 seconds between Sec. / Pri.
--Rated primarycurrent: 10A 50Hz , 60A ,100A
-- Rated load resistor: 75Ω
-- Max current: 60A 50Hz ,100A,200A,400A
--Accurancy : 0.5 0r 1.0
2.Application:
Split-core Current Transformer is easier and portable means for measurement of current for motor, air conditioner, and other electrical devices.
3.Specifications:
--You can choose your right ones from the common specifications we have;
--and also coilcore’s R&D department can design according to your demands and produce exactly follow your designs.
