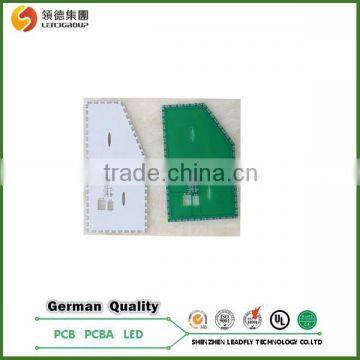

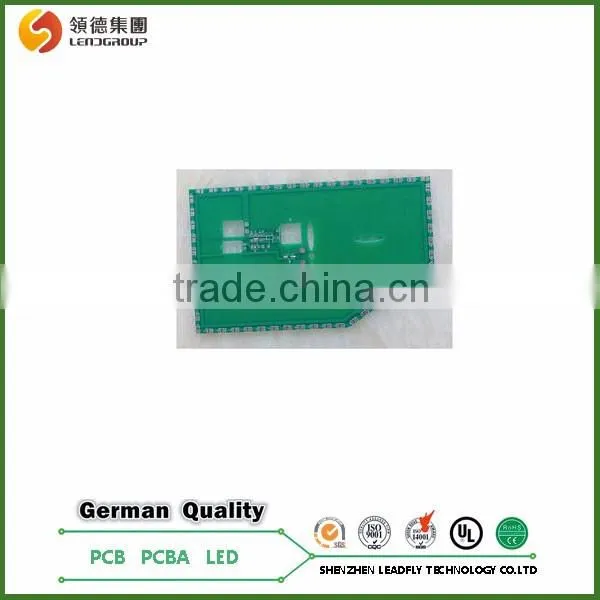

Promotion!electronic balance board,multilayer pcb assembly
PCB Item |
Manufacture Capacity |
Layer Counts |
1--20L |
Base Material |
FR4,High-TG FR4,CEM3,aluminum,High Frequency(Rogers,Taconic,Aron,PTFE,F4B) |
Material Thickness(mm) |
0.40, 0.60, 0.80, 1.00, 1.20, 1.50, 1.60, 2.0, 2.4, 3.2 |
Max board size(mm) |
1200x400mm |
Board Outline Tolerance |
±0.15mm |
Board Thickness |
0.4mm--3.2mm |
Thickness Tolerance |
±8% |
Minimum line/space |
0.1mm |
Min Annular Ring |
0.1mm |
SMD Pitch |
0.3mm |
Holes |
|
Min Hole Size(mechanical) |
0.2mm |
Min Hole Size(laser hole) |
0.1mm |
Hole Size Tol (+/-) |
PTH:±0.075mm;NPTH: ±0.05mm |
Hole Position Tol |
±0.075mm |
Plating |
|
HASL/LF HAL |
2.5um |
Immersion Gold |
Nickel 3-7um Au:1-5u'' |
Surface Finish |
HAL,lead-free HAL,ENIG,Plated Gold,Immersion Gold,OSP |
Copper |
|
Copper Weight |
0.5--6oz |
Color |
|
Soldermask |
Green, Blue, Black, White, Yellow, Red, Matt Green, Matt Black, Matt Blue |
Silkscreen |
White, Black, Blue,Yellow |
Acceptable File Format |
Gerber file,Powerpcb,CAD,AUTOCAD,ORCAD,P-CAD,CAM-350,CAM2000 |
Certificate |
ROSH,ISO9001,UL |
1. 3 years warranty,super price,high thermal conductivity,steady quality,94v0,good delivery,highly cost effective,high power,super popular high quality,professional desgin,factory price,the best choice,high standard, high qualified,high efficient,best service with competitive.
2. 5 years technical service team
fessional sales team
4.Customsized specification can be accepted in our factory .
5.Aiming at the consult of "high quality,zero defect",give you the best quality,best service.
6.We can offer three categories of products,cob led source, integrated LED source and high power LED source.
7.Your inquiry related to cob led source or prices will be replied within 24 hours
