Latest design lamp led,solor led,led sign light factory
1.Specification

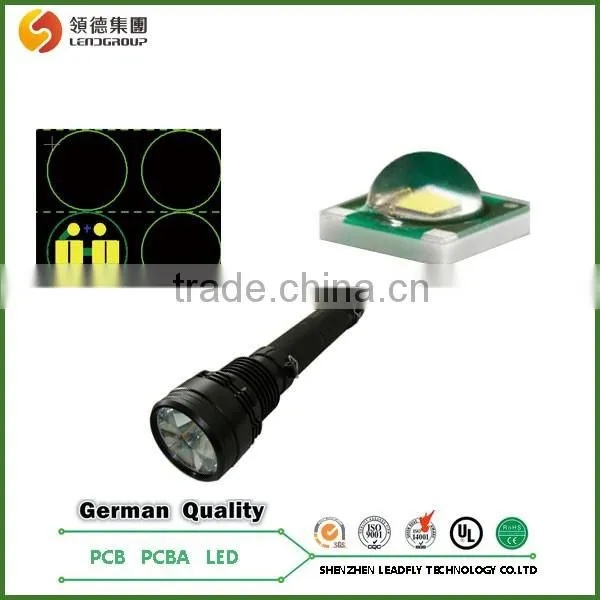

1W Epistar LED Bead
1.High quality,good heat dissipation,factory price
2.Original Epistar Chip& Mitsubishi Phosphor
3.CE&ROHS
Available Power: 1w, 3w, 5w, 10w, 20w, 30w, 50w, 80w, 100w 200W 300W high power led diode
Available chips:US bridgelux,Taiwan Epistar45mil,Taiwan Epistar35mil,Taiwan Genesis,Taiwan Epileds.
Available color :white,blue,red ,green,yellow,orange,rgb,uv
Available CCT :2000-2200k/3000-3200k/4000-4500k/5000-5500k/6000-6500k/15000-20000k
Maximum limit specification (Ta = 25°C)
With different color green, blue, red, yellow, blue, white....
Product No. | Color | Color Temperature | Lumen(MIN) | Lumen(MAX) | Forward Current (mA) | Max Reverse Current (uA) | Forward Voltage (V) | Max Reverse Voltage (V) | Beam Angle | Packing Style |
LLAAI1-BGC1-INA | White | 6000K-6500K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Len Packing |
LLAAI1-BGN1-INA | Nature White | 4000K-4500K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Len Packing |
LLAAI1-BGW1-INA | Warm White | 3000K-3200K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Len Packing |
LMAAI1-BGC1-INA | White | 6000K-6500K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Molding Packing |
LMAAI1-BGN1-INA | Nature White | 4000K-4500K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Molding Packing |
LMAAI1-BGW1-INA | Warm White | 3000K-3200K | 90 | 100 | 350 | 10 | 3.0-3.6 | 5 | 140 | Molding Packing |
2. Driving Circuit
As high power LED lamp bead complies with the diode VI characteristic curve, if the floating current with the floating voltage could damage the led bead, that suggest customer using constant current power or IC, not using constant voltage power or IC. The LED lamp bead can’t be drove reversely;
3. Storage Conditon
A. Before open the package, the LED lamp bead could be stored below 30°C/90%RH. After open the package, the LED lamp bead should be used in 30°C/70%RH;
B. Should be used in 168hrs (7days) after open the package;
C. LED lamp bead with lens should be used with dustproof measures
Application:
LED Spotlight
Widely used to Decorative and Entertainment Lighting ;
Parking Garage Lighting ;
Automotive Interior / Exterior Lighting
Household Appliances
Trade term:
- Payment: 30%T/T deposit, the balance paid against the B/L Fax Copy or 100% L/C at sight;
- Shipping: By Express (EMS,DHL, UPS etc), by air or by sea;
- Products according customers Gerber files;
- Others with our confirmations.
Inner packing:Vacuum Package
Outer packing:Outer Carton
Factory view
FAQ
Q:Can you offer samples before mass production?
A: Yes, we can custom you sample to test before mass production
Q: When will I get the quotation after sent Gerber, BOM and test procedure?
A: Within 6 hours for PCB quotation and around 24 hours for PCBA quotation.
Q: How can I know the process of my production?
A: 7-10 days for PCB production and components purchasing, and 10 days for PCB assembly and
Testing
Q: How can I make sure the quality of my PCBAs?
A: We ensure that each piece of PCBA products work well before shipping. We'll test all of them according to your test procedure
